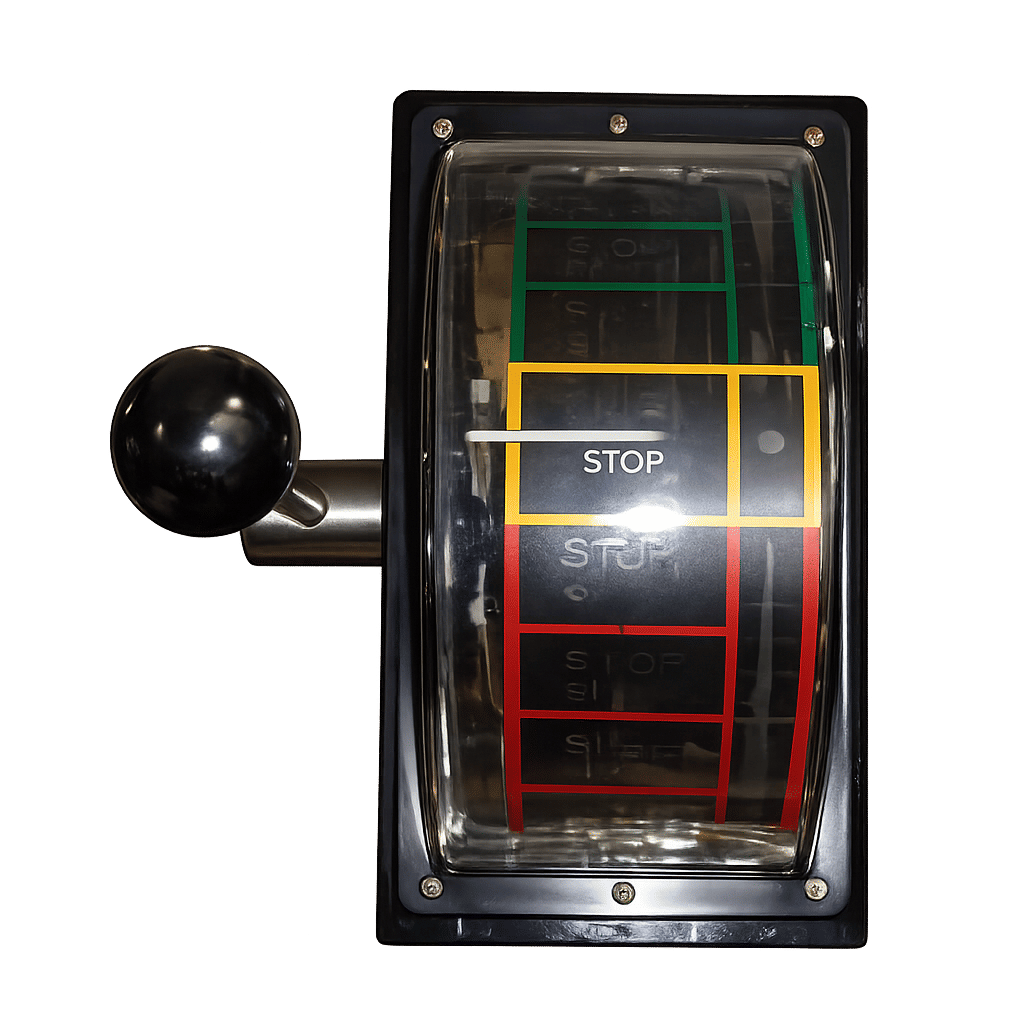

Whole air-air control type remote manipulator CQQY-N
The CQQY-N Whole Air-Air Control Type Remote Manipulator from Guang Cai Electric (GCE) is a fully pneumatic remote control system designed for marine valve and machinery operation applications. Utilizing compressed air as both the control signal and actuation medium, the system provides reliable remote operation without requiring electrical control circuits, making it particularly suitable for hazardous and explosion-risk environments.
Description
Designed for marine, offshore, tanker, and industrial applications, the CQQY-N enables operators to remotely control valves and associated equipment from centralized control stations while maintaining high operational safety and reliability. The fully pneumatic design minimizes electrical components in hazardous areas and provides dependable performance in harsh marine operating conditions.
The CQQY-N is a fully pneumatic remote control manipulator developed for applications where electrical control systems are either undesirable or restricted due to hazardous operating conditions. The system uses compressed air signals to transmit control commands and actuate connected equipment, providing safe and reliable remote operation. Its simple yet robust design allows centralized control of valves and process systems while reducing installation complexity and maintenance requirements. The system is particularly suitable for tanker cargo systems, ballast systems, fuel transfer operations, offshore installations, and industrial process applications where intrinsically safe operation is required. The pneumatic architecture ensures continued functionality in demanding marine environments and offers excellent resistance to vibration, humidity, corrosion, and temperature variations commonly encountered onboard vessels and offshore facilities.
Key Features
- Fully pneumatic control architecture
- Air signal transmission and actuation
- No electrical control circuits required
- Suitable for hazardous environments
- Remote valve and equipment operation
- Reliable and fail-safe operation
- Centralized control capability
- Low maintenance requirements
- Marine-grade construction
- High resistance to vibration and corrosion
- Easy installation and operation
- Suitable for offshore and marine applications
Applications
Oil Tankers: • Cargo Valve Operation • Ballast System Control • Stripping System Control
Chemical Tankers: • Hazardous Chemical Transfer • Tank Valve Remote Control • Emergency Shut-off Operations
LPG & LNG Vessels: • Gas Carrier Cargo Operations • Cryogenic Line Control • Safety Interlock Valves
Cargo Ships / Bulk Carriers: • Ballast Valve Management • Bilge System Operation • Service Line Control
Offshore Support Vessels (OSV) / AHTS: • Mud System Operation • Fuel Transfer Control • Deck Water Distribution
Offshore Platforms & FPSO: • Process Valve Remote Operation • Firewater Control Lines • Fluid Distribution Systems
System functions
Pneumatic signal control
Control commands are transmitted entirely through compressed air signals without the need for electrical control wiring.
Remote valve operation
Allows operators to remotely open, close, and regulate valves from centralized control locations.
Hazardous area operation
Ideal for environments where minimizing electrical equipment is critical for operational safety.
Process system integration
Can be integrated into vessel process systems, cargo handling systems, ballast systems, and industrial fluid transfer operations.
Reliable marine performance
Designed to provide dependable operation under continuous marine service conditions.
Benefits
- Enhanced operational safety
- Suitable for hazardous environments
- Eliminates electrical control risks
- Reliable pneumatic operation
- Reduced maintenance requirements
- Simplified system architecture
- Improved operator safety
- Long service life
- Excellent marine durability
- Cost-effective remote control solution
Technical specification
| Parameter | Value |
|---|---|
| Product Type | Whole Air-Air Control Remote Manipulator |
| Model | CQQY-N |
| Manufacturer | Guang Cai Electric (GCE) |
| Control Method | Pneumatic Signal Control |
| Actuation Type | Pneumatic |
| Power Requirement | Compressed Air |
| Operation Mode | Remote & Local Control |
| Application Marine | Valve & Equipment Control |
| Installation | Marine & Offshore Applications |
| Hazardous Area Suitability | Yes |
| Construction | Marine Grade Industrial Design |
| Maintenance Requirement | Low |
| Operating Environment | Marine, Offshore & Industrial |
Typical Industries
- Marine & Shipbuilding
- Oil & Gas Tankers
- Chemical Processing
- LNG & LPG Transportation
- Offshore Platforms
- FPSO Facilities
- Petrochemical Plants
- Industrial Process Control
