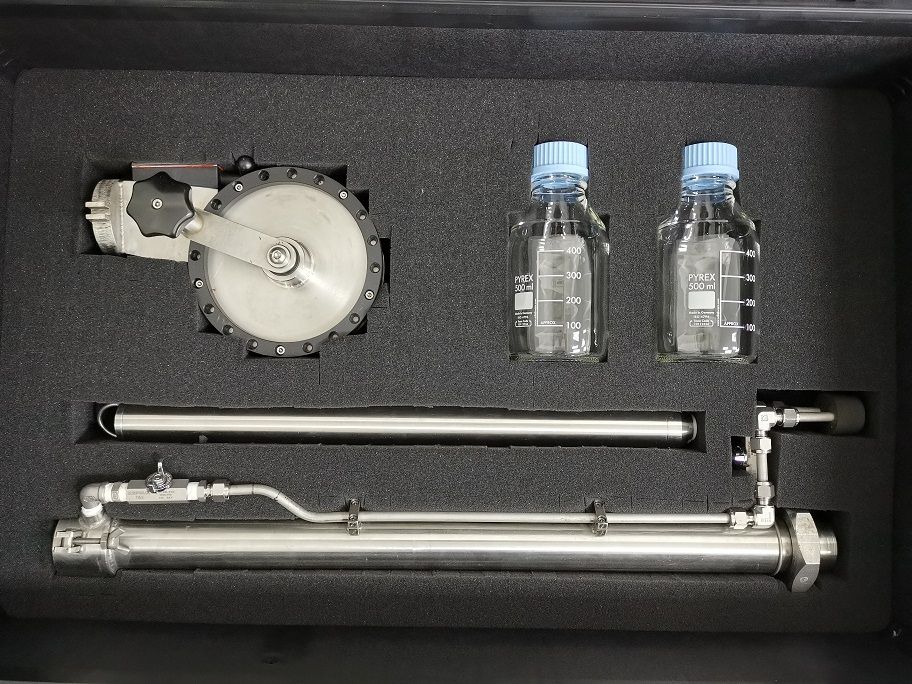

SHT Portable Liquid Sampler
The SHT Portable Sampler is a gas-tight liquid sampling device. The transfer of liquid sample to a laboratory bottle is done under closed condition. The device is designed for hydrocarbons and corrosive liquid applications and is used for Oil and Chemical Tankers.
Technical specification
| Parameter | Value |
|---|---|
| Device type | Gas-tight liquid sampling device |
| Sampling system | Closed system |
| Maximum tank overpressure | 0.3 bar |
| Tape length options | 30m, 50m tape length with metric reading |
| Zone sampling bottle capacity | 0.4L (400ml) |
| Laboratory bottle capacity | 0.5L (500ml) provided |
| Tape material | Stainless Steel Tape |
| Tape length | 30 meter |
| Weight | 7.4kg |
| Dimension | 180mmW × 160mmD × 900mmL |
Functional Features
- Gas-tight (closed system).
- Transfers liquid samples to laboratory bottles under closed condition.
- Includes zone sampling bottle with 0.4L capacity.
- Bottom sampling bottle and spot sampling bottle available on request.
- Designed for hydrocarbons and corrosive liquid applications.
- Comes with durable transport casing.
Optional Modules / Accessories
- Bottom sampling bottle available on request.
- Spot sampling bottle available on request.
- Laboratory bottle, 0.5L (500ml) provided.
- Durable transport casing.
Typical Applications
- Oil Tankers.
- Chemical Tankers.
- Hydrocarbons applications.
- Corrosive liquid applications.
