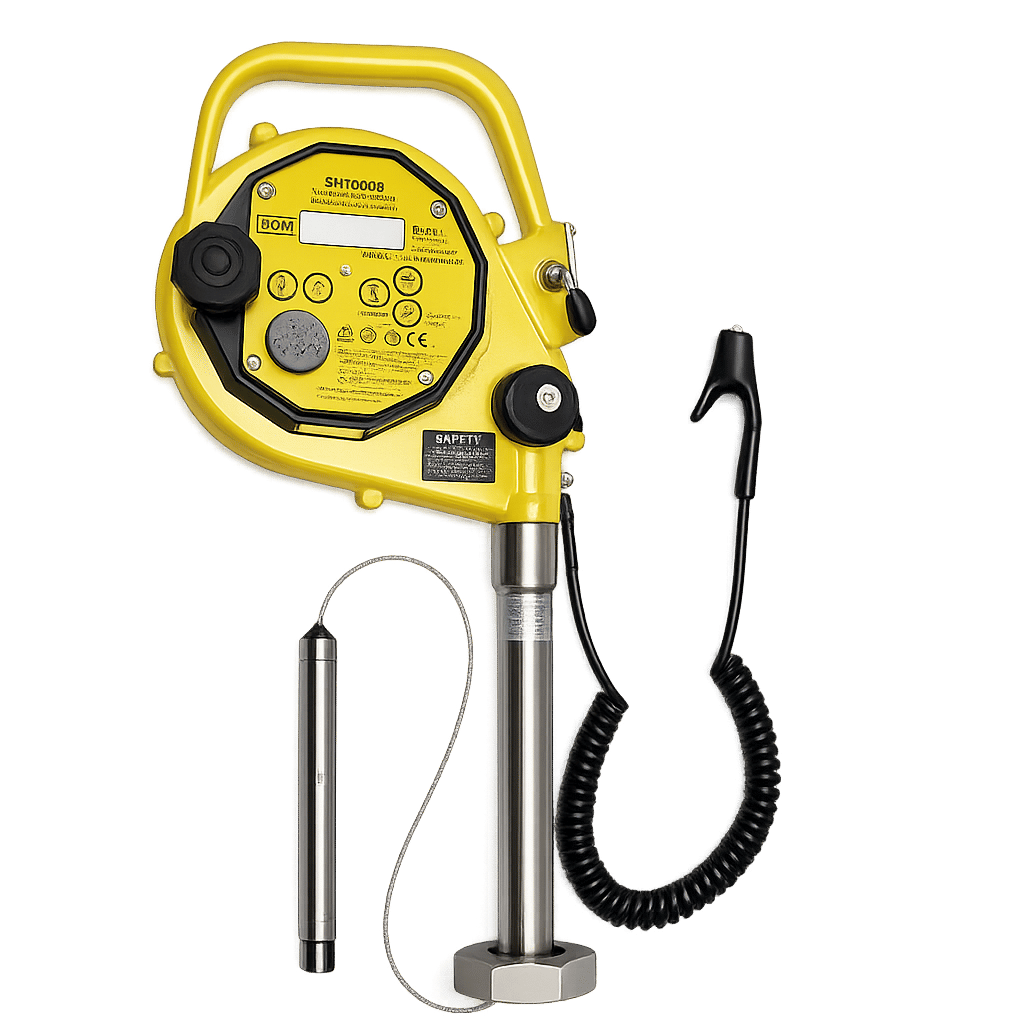

SHT 2002 UTI
The SHT2002 Portable UTI Gauging Device from Sea Hover Technologies is a gas-tight portable gauging instrument designed for accurate measurement of ullage, oil/water interface, and temperature in marine cargo and storage tanks. Engineered specifically for marine and offshore applications, the device enables operators to perform multiple tank measurements through a single instrument while maintaining a closed tank environment.
Description
The SHT2002 combines ullage measurement, oil/water interface detection, and temperature monitoring into a single portable instrument. The device operates through a gas-tight closed measurement system, allowing tank gauging operations to be performed without exposing personnel or the environment to hazardous vapors. The system is suitable for measuring petroleum products, chemicals, ballast water, and other liquid cargoes. Its high-accuracy sensors provide dependable measurements for cargo calculations, tank inventory management, and vessel operational monitoring. The portable design allows easy transportation between tanks, while the durable construction ensures reliable operation under harsh marine conditions. The modular design also simplifies maintenance and component replacement, reducing lifecycle costs.
Available models & configurations
The SHT2002 is available in multiple tape lengths to suit various vessel sizes and tank depths.
| Model | Model measuring length |
|---|---|
| SHT2002-30 | 30 m |
| SHT2002-35 | 35 m |
Key Features
- Gas-tight closed measurement system
- Combined Ullage, Temperature, and Interface measurement
- High measurement accuracy
- Portable and lightweight design
- User-friendly operation
- Tape cleaning function
- Tube protection mechanism
- Suitable for hydrocarbons and chemicals
- Marine-grade construction
- Low maintenance requirements
- Long operational life
- Modular design for easy servicing
Applications
- Oil Tankers
- Chemical Tankers
- Product Tankers
- Offshore Support Vessels
- Storage Tanks
- Ballast Tanks
- Cargo Tanks
- Marine Terminal Operations
- Tank Farm Applications
- Petroleum Storage Facilities
Benefits
- Safe tank measurement without opening the tank atmosphere
- Accurate cargo quantity determination
- Reduced vapor exposure during measurement
- Improved operational safety
- Reliable performance in marine environments
- Reduced maintenance costs
- Suitable for hazardous cargo applications
- Supports efficient cargo management and inventory control
Available measurement functions
| Function | Description |
|---|---|
| U | Ullage Measurement |
| T | Temperature Measurement |
| I | Oil / Water Interface Detection |
| UTI | Combined Ullage, Temperature & Interface Measurement |
Available Probe & Sensor Options
| Option | Application |
|---|---|
| Standard Cargo Probe | General cargo tank measurement |
| Water Interface Probe | Oil/Water interface detection |
| High Temperature Probe | Elevated temperature cargoes |
| Chemical Resistant Probe | Chemical cargo applications |
| Ballast Tank Probe | Ballast water monitoring |
Optional Accessories
- Calibration Kit
- Spare Sensor Probe
- Replacement Tape Assembly
- Portable Carrying Case
- Intrinsically Safe Battery Pack
- Temperature Sensor Assembly
- Interface Detection Sensor
- Spare Cleaning Kit
Technical specification & spare parts: sht2002 portable uti gauging device
| Parameter | Value |
|---|---|
| Product Type | Gas-tight Portable UTI Gauging Device |
| Application | Ullage, Interface & Temperature Measurement |
| Measurement Functions | Ullage, Temperature, Oil/Water Interface |
| Ullage Measuring Range | Up to 30 m |
| Ullage Accuracy | ±1.5 mm |
| Interface Detection Accuracy | ±2 mm |
| Minimum Detectable Liquid | 4 mm from tank bottom |
| Temperature Range | -40°C to +70°C |
| Temperature Accuracy | ±0.1°C |
| Temperature Display | °C / °F Selectable |
| Maximum Tank Pressure | 0.3 bar |
| Ambient Operating Temperature | -20°C to +50°C |
| Power Supply | 9V Alkaline Battery |
| Construction | Gas-tight Closed System |
| Design | Modular Portable Design |
| Maintenance | Low Maintenance Requirement |
| Suitable Liquids | Hydrocarbons, Chemicals & Ballast Water |
| Housing Material | Marine Grade Construction |
| Weight | Approx. 5 kg |
| Protection | Designed for Marine Applications |
Why choose the sht2002?
The Sea Hover SHT2002 Portable UTI Gauging Device delivers reliable and accurate tank measurement in a single portable solution. By combining ullage, temperature, and interface measurement capabilities within a gas-tight design, the system enhances operational safety while providing precise tank data for marine cargo operations, offshore installations, and storage applications. Its robust construction, modular architecture, and proven performance make it an ideal choice for vessel operators seeking dependable tank gauging equipment.
