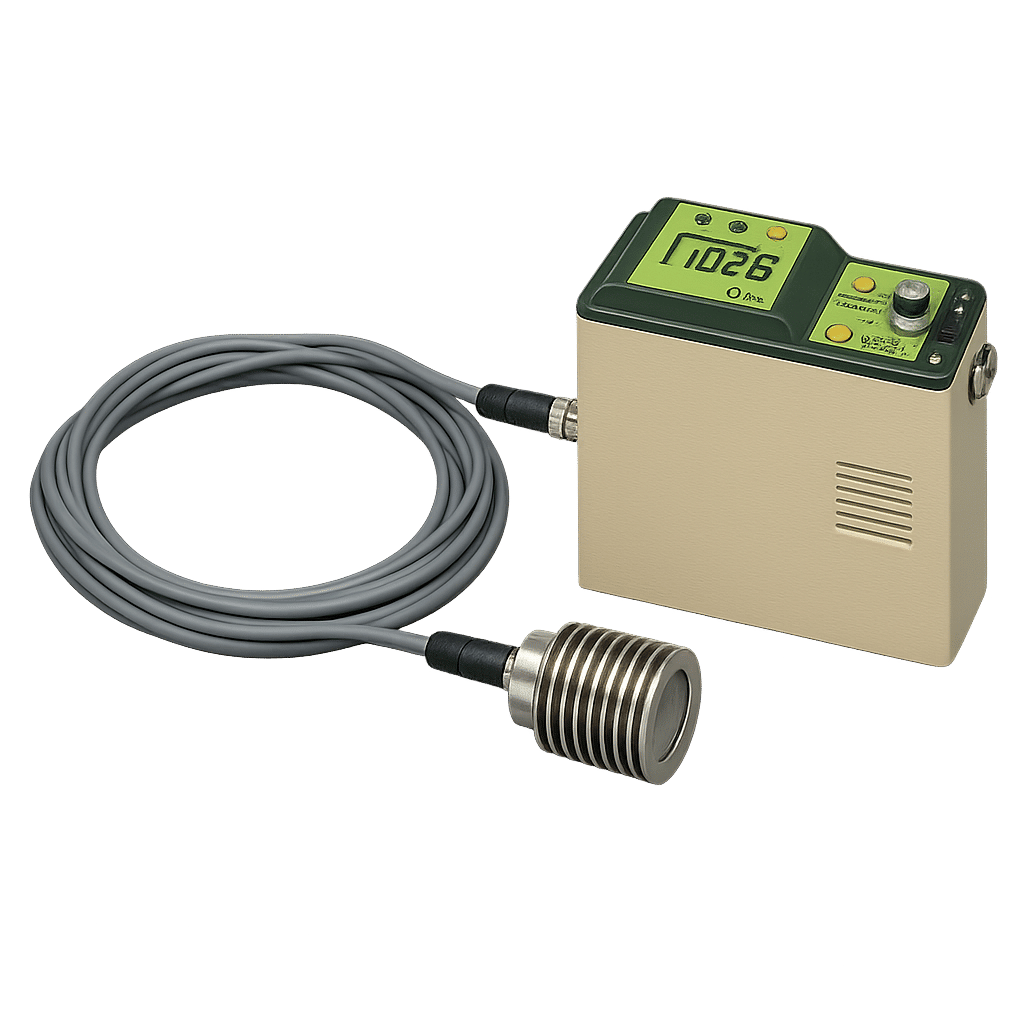

Portable Gas Detection Systems- TIP-OX Series
The TIP Series Portable Oxygen Monitor is a reliable and accurate oxygen concentration measurement instrument designed for confined spaces, industrial facilities, marine vessels, offshore installations, and hazardous work environments. Manufactured by Tokaseiki Co., Ltd., the series provides continuous oxygen monitoring with automatic air calibration, dual alarm functionality, and intrinsically safe construction for safe operation in potentially hazardous atmospheres.
Description
Available in both diffusion-type (TIP-OXE) and suction-type (TIP-OXP) configurations, the TIP Series offers flexibility for direct atmospheric monitoring and remote sampling applications where continuous oxygen measurement is essential.
Specifications
| Parameter | Value |
|---|---|
| Measurement Gas | Oxygen (O₂) |
| Detection Principle | Galvanic Cell Method |
| Measurement Range | 0–25% O₂ |
| Display | LCD Digital Display |
| Resolution | 0.1% O₂ |
| Alarm Functions | Oxygen Depletion & Oxygen Enrichment |
| Safety Approval | Intrinsically Safe i3aG4 |
| Applications | Marine, Offshore, Industrial, Confined Space Monitoring |
Technical Specification
| Model | TIP-OXE | TIP-OXP |
|---|---|---|
| Gas Collection Method | Diffusion Type | Suction Type with Built-in Pump |
| Sampling Method | Direct Sensing with Remote Cable | Sampling Tube (1.5 m Standard) |
| Detection Principle | Galvanic Cell Method | Galvanic Cell Method |
| Measuring Gas | Oxygen in Atmosphere | Oxygen in Atmosphere |
| Measurement Range | 0–25% O₂ | 0–25% O₂ |
| Display Type | LCD Digital Display | LCD Digital Display |
| Minimum Resolution | 0.1% O₂ | 0.1% O₂ |
| Accuracy | ±0.7% O₂ | ±0.7% O₂ |
| Alarm Level AL1 | Oxygen Decrease Mode: 18% | Oxygen Decrease Mode: 18% |
| Alarm Level AL2 | Oxygen Increase Mode: 23% | Oxygen Increase Mode: 23% |
| Alarm Accuracy | Within ±1% | Within ±1% |
| Operating Temperature | -10°C to 40°C | -10°C to 40°C |
| Humidity | Below 90% RH | Below 90% RH |
| Power Supply | DC3V Dry Cell Batteries (R20P ×2) | DC3V Dry Cell Batteries (R20P ×2) |
| Response Time | Within 20 sec | Within 20 sec |
| Battery Life | Approx. 30 Hours | Approx. 8 Hours |
| Dimensions | 163 × 137 × 67 mm | 163 × 137 × 67 mm |
| Weight | Approx. 1.6 kg | Approx. 1.3 kg |
| Safety Approval | Intrinsically Safe i3aG4 | Intrinsically Safe i3aG4 |
Available Models
| Model | Description |
|---|---|
| TIP-OXE – Diffusion Type Oxygen Monitor | The TIP-OXE continuously measures ambient oxygen concentration using a diffusion-based sensing method. It is ideal for personnel safety monitoring in confined spaces, enclosed work areas, and industrial facilities where direct atmospheric measurement is required. |
| TIP-OXP – Suction Type Oxygen Monitor | The TIP-OXP incorporates a built-in suction pump and sampling tube, allowing oxygen monitoring from remote locations, tanks, cargo holds, ducts, pits, and other inaccessible areas without direct access. |
Applications
- Confined Space Entry Monitoring
- Marine Engine Rooms
- Cargo Holds and Tanks
- Offshore Platforms
- Chemical Processing Plants
- Petrochemical Facilities
- Utility Plants
- Storage Tank Inspection
- Industrial Manufacturing Facilities
- Environmental Safety Monitoring
- Maintenance and Inspection Operations
- Emergency Response Activities
Features
- Two selectable measurement modes
- Oxygen decrease and oxygen increase alarm modes
- Peak hold function for maximum and minimum readings
- Automatic air calibration at startup
- Large 3-digit LCD display
- Intrinsically safe construction approved by RIIS Japan
- Long-life oxygen sensor
- Easy maintenance design
- Microprocessor-controlled operation
- Portable and lightweight construction
Benefits
- Reliable oxygen monitoring in hazardous environments
- Improves personnel safety during confined space entry
- Early warning of oxygen deficiency or enrichment conditions
- Intrinsically safe design for hazardous locations
- Portable and easy to transport
- Low maintenance requirements
- Long sensor life reduces operating costs
- Suitable for industrial, marine, and offshore applications
- Accurate and stable measurement performance
- Flexible monitoring with diffusion and suction models
Standard Accessories
- Sampling Tube (TIP-OXP)
- Remote Sensor Cable (TIP-OXE)
- Carrying Case
- Instruction Manual
- Dry Cell Batteries
- Maintenance Tools
Short description
The Tokaseiki TIP Series Portable Oxygen Monitor is a compact oxygen detection instrument designed for continuous monitoring of atmospheric oxygen levels in industrial, marine, offshore, and confined space applications. Available in diffusion-type (TIP-OXE) and suction-type (TIP-OXP) models, the system features automatic air calibration, dual oxygen alarm modes, intrinsically safe construction, and a long-life galvanic oxygen sensor for reliable and accurate oxygen measurement.
Related Products
Portable Gas Detection Systems- P-508
Toka Seiki

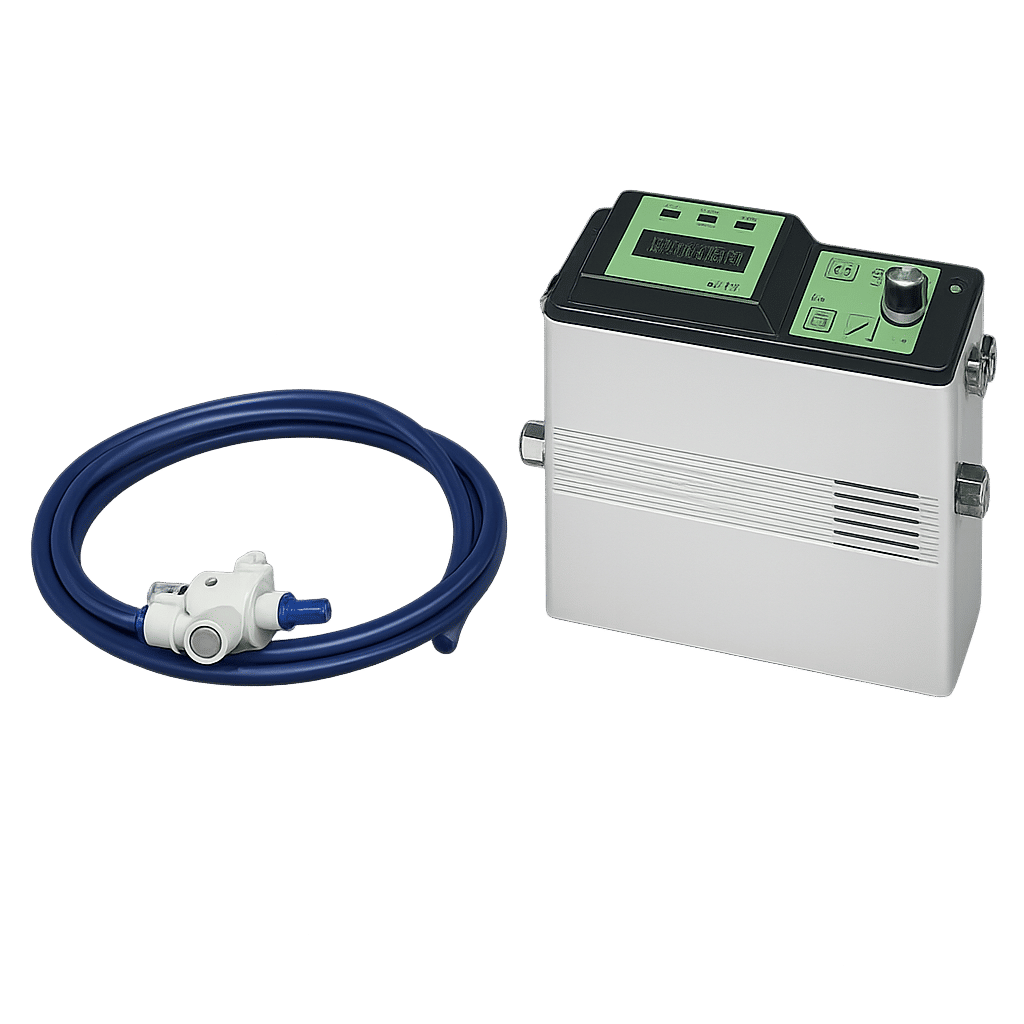

Portable Gas Detection Systems- TIP-HY
Toka Seiki

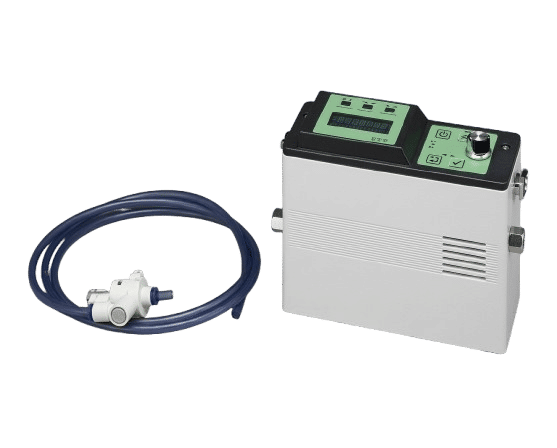

Portable Gas Detection Systems- TIP-CO
Toka Seiki

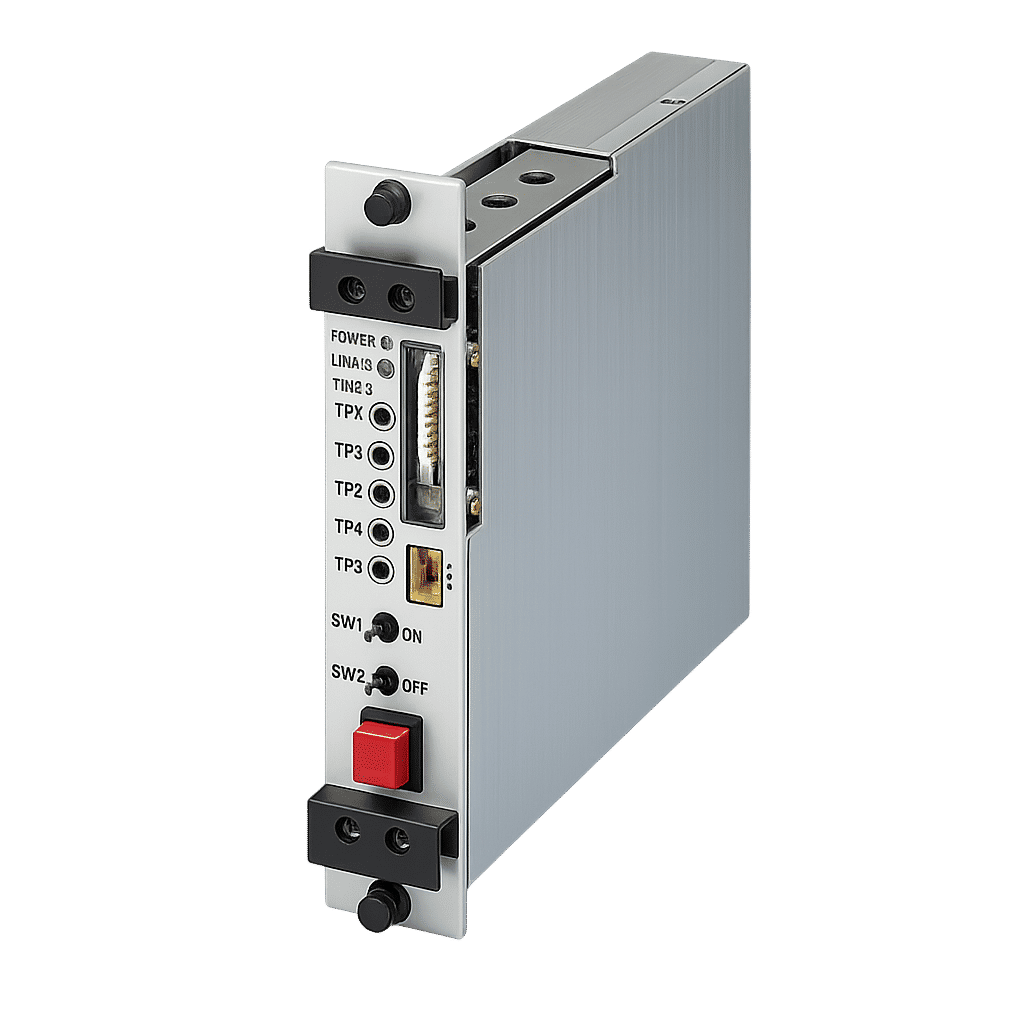

Fixed gas Dectection Systems- 3000 Series
