Portable Gas Detection Systems- P-508
The P-508 and P-510H Portable Gas Detectors are compact and lightweight combustible gas detection instruments designed for safe and reliable gas monitoring in industrial, marine, offshore, and hazardous environments. Manufactured by Tokaseiki Co., Ltd., these portable detectors feature automatic suction sampling, rapid response, audible alarm indication, and flameproof sensor construction for dependable field operation.
Description
The P-508 is designed for general combustible gas detection, while the P-510H is specifically engineered for hydrogen gas monitoring and is approved for hydrogen-related applications. Both models are suitable for outdoor use thanks to their drip-proof construction and intrinsically safe electrical design.
Specifications
| Parameter | Value |
|---|---|
| Equipment | Portable Gas Detector |
| Manufacturer | Tokaseiki Co., Ltd. |
| Models | P-508, P-510H |
| Gas Detection | Combustible Gases / Hydrogen |
| Sampling Method | Built-in Automatic Suction Pump |
| Detection Principle | Catalytic Combustion |
| Alarm Indication | Audible Buzzer Alarm |
| Display Type | Analog Meter |
| Power Supply | DC3V Dry Cell Batteries |
| Application | Industrial, Marine, Offshore, Hazardous Areas |
Technical Specification
| Model | P-508 | P-510H |
|---|---|---|
| Gas Type | General Combustible Gas | Combustible Gas / Hydrogen |
| Detection Principle | Catalytic Combustion | Catalytic Combustion |
| Gas Sampling | Built-in Automatic Suction Pump | Built-in Automatic Suction Pump |
| Response Time | Within 30 sec | Within 30 sec |
| Measurement Range | 0–100% LEL | 0–100% LEL |
| Display | Analog Meter | Analog Meter |
| Alarm Setting | 20% LEL | 20% LEL |
| Alarm Indication | Buzzer Alarm | Buzzer Alarm |
| Accuracy | Within ±5% FS | Within ±5% FS |
| Operating Temperature | -10°C to 50°C | -10°C to 50°C |
| Humidity | Below 90% RH | Below 90% RH |
| Safety Approval | — | Hydrogen Explosion-Proof Approval |
| Sensor Construction | Flameproof Sensor / Intrinsically Safe Circuit | Flameproof Sensor / Intrinsically Safe Circuit |
| Power Supply | DC3V (Dry Cell Batteries) | DC3V (Dry Cell Batteries) |
| Battery Life | Approx. 5 Hours Continuous Operation | Approx. 8 Hours Continuous Operation |
| Dimensions | 165 × 137 × 67 mm | 165 × 137 × 67 mm |
| Weight | Approx. 1.5 kg | Approx. 1.5 kg |
Applications
- Marine Engine Rooms
- Cargo Pump Rooms
- Offshore Platforms
- Oil & Gas Facilities
- Hydrogen Handling Facilities
- Chemical Processing Plants
- Fuel Storage Areas
- Utility Gas Stations
- Industrial Manufacturing Plants
- Hazardous Area Inspections
- Confined Space Monitoring
- Emergency Response Operations
Features
- Portable combustible gas detection system
- Automatic suction sampling pump
- High sensitivity gas detection
- Audible buzzer alarm indication
- Low-range combustible gas measurement capability
- Flameproof sensor construction
- Intrinsically safe electrical circuit
- Drip-proof structure suitable for outdoor use
- Compact and lightweight design
- P-510H suitable for hydrogen gas applications
- Catalytic combustion sensing technology
- Easy field operation
Benefits
- Rapid detection of combustible gas hazards
- Improves personnel and operational safety
- Suitable for industrial and marine environments
- Portable solution for field inspections
- Reliable operation in hazardous areas
- Easy-to-read analog indication
- Long service life and low maintenance
- Hydrogen monitoring capability with P-510H
- Lightweight design for convenient transportation
- Supports routine safety inspections and emergency response
Related Products
Portable Gas Detection Systems- TIP-HY
Toka Seiki
Portable Gas Detection Systems- TIP-CO
Toka Seiki
Fixed gas Dectection Systems- 3000 Series
Toka Seiki

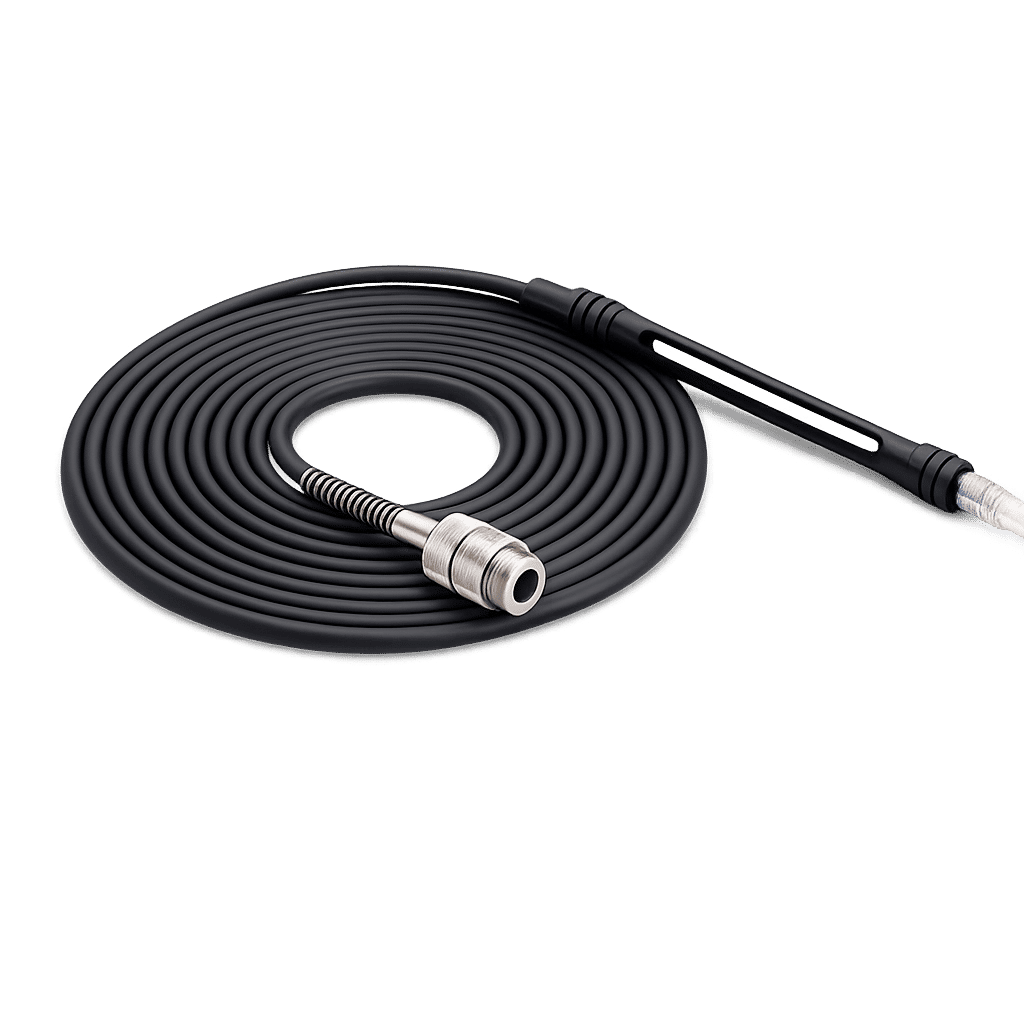

Hoses
