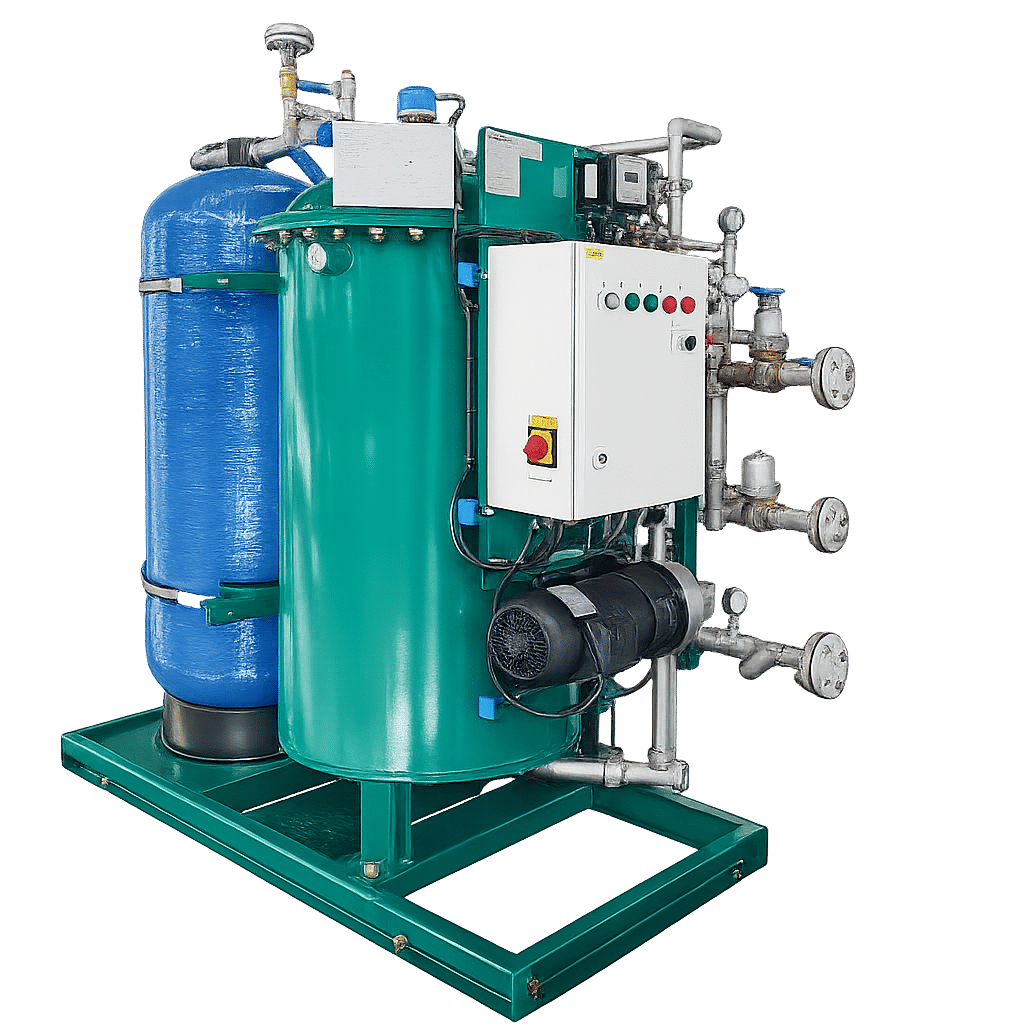

Oily Water System- UTS Type
The Oily Water Separator (OWS) is a marine environmental protection system designed to treat oily bilge water and oil-water mixtures generated onboard ships and offshore platforms. The system efficiently separates oil contaminants from water, ensuring discharged water complies with international environmental regulations and does not exceed the allowable 15 ppm oil content limit.
Description
Designed for reliable operation in demanding marine environments, the Oily Water Separator utilizes advanced coalescing and filtration technology to maximize oil removal efficiency while minimizing maintenance requirements. Suitable for a wide range of vessel types and offshore installations, the system fully complies with the latest IMO MEPC.107(49) standards for marine pollution prevention.
Specifications
- Equipment: Oily Water Separator
- Manufacturer: Hansun Marine Technology
- Model: UTS Type
- Application: Bilge Water Treatment & Oil-Water Separation
- Compliance: IMO MEPC.107(49)
- Maximum Discharge Oil Content: ≤15 ppm
- Suitable For: Ships & Offshore Platforms
- Separation Technology: Coalescing & Filtration Process
- Installation: Marine & Offshore Applications
Technical specification
| Parameter | Specification |
|---|---|
| System Type | Oily Water Separator |
| Compliance Standard | IMO MEPC.107(49) |
| Maximum Oil Discharge | ≤15 ppm |
| Operating Pressure | 15 PSIG |
| Test Pressure | 45 PSIG |
| Operating Temperature | 5°C – 60°C |
| Maximum Free Oil Concentration | 35% |
| Maximum Fluid Oil Concentration (With Filter) | 6% |
| Oil Content in Discharge Water | <15 ppm |
| Frequency | 50 / 60 Hz |
| Power Supply Options | 110V, 220V, 380V, 415V, 440V, 575V, 600V |
| DC Power Options | 12V / 24V |
| Maximum Turbidity for Accurate Reading | 35 NTU |
| Pump Type | Centrifugal Pump with Stainless Steel Housing |
| Level Sensor | Conductance Type |
| Hazardous Area Classification | NEMA 4X / Class I Div II |
| Coalescing Media | Polypropylene (HDPE) |
| Piping Material | Bronze / Red Brass |
| Vessel Material | Marine-Coated Carbon Steel |
| Coating Specification | Epoxy / Urethane |
Available Capacity Options
| Model Capacity | Flow Rate (m³/hr) |
|---|---|
| 2 GPM | 0.45 m³/hr |
| 5 GPM | 1.13 m³/hr |
| 10 GPM | 2.27 m³/hr |
| 25 GPM | 5.68 m³/hr |
| 45 GPM | 10.22 m³/hr |
Applications
- Cargo Vessels
- Bulk Carriers
- Tankers
- Container Ships
- Passenger Ferries
- Offshore Supply Vessels
- FPSO Facilities
- Offshore Platforms
- Tugboats
- Naval Vessels
- Marine Engine Rooms
- Offshore Energy Installations
Features
- Fully compliant with IMO MEPC.107(49)
- Automatic operation with self-monitoring capability
- Continuous performance reporting
- Self-priming design
- Advanced coalescing separation technology
- Heavy-duty marine coating protection
- Factory-installed bronze piping and valves
- Onboard flow indication system
- Compact space-saving design
- Low maintenance requirements
- Remote monitoring option available
- Flexible control configurations
- Suitable for offshore platform installations
- Stable operation under marine conditions
- Multiple power supply options
Benefits
- Ensures MARPOL-compliant discharge below 15 ppm
- Protects the marine environment from oil pollution
- Reduces operational maintenance costs
- Supports continuous vessel operation
- High separation efficiency with maximum coalescence
- Compact footprint for easier installation
- Suitable for retrofit and newbuild projects
- Reliable operation in offshore and marine environments
- Flexible capacity options for different vessel sizes
- Enhances environmental compliance and vessel certification
System Components
- Oily Water Separator Unit
- Coalescing Filter Assembly
- Oil Content Monitoring System
- Automatic Control System
- Centrifugal Feed Pump
- Conductance Level Sensor
- Bronze Piping & Valve Package
- Discharge Monitoring Components
- Performance Reporting System
Related Products

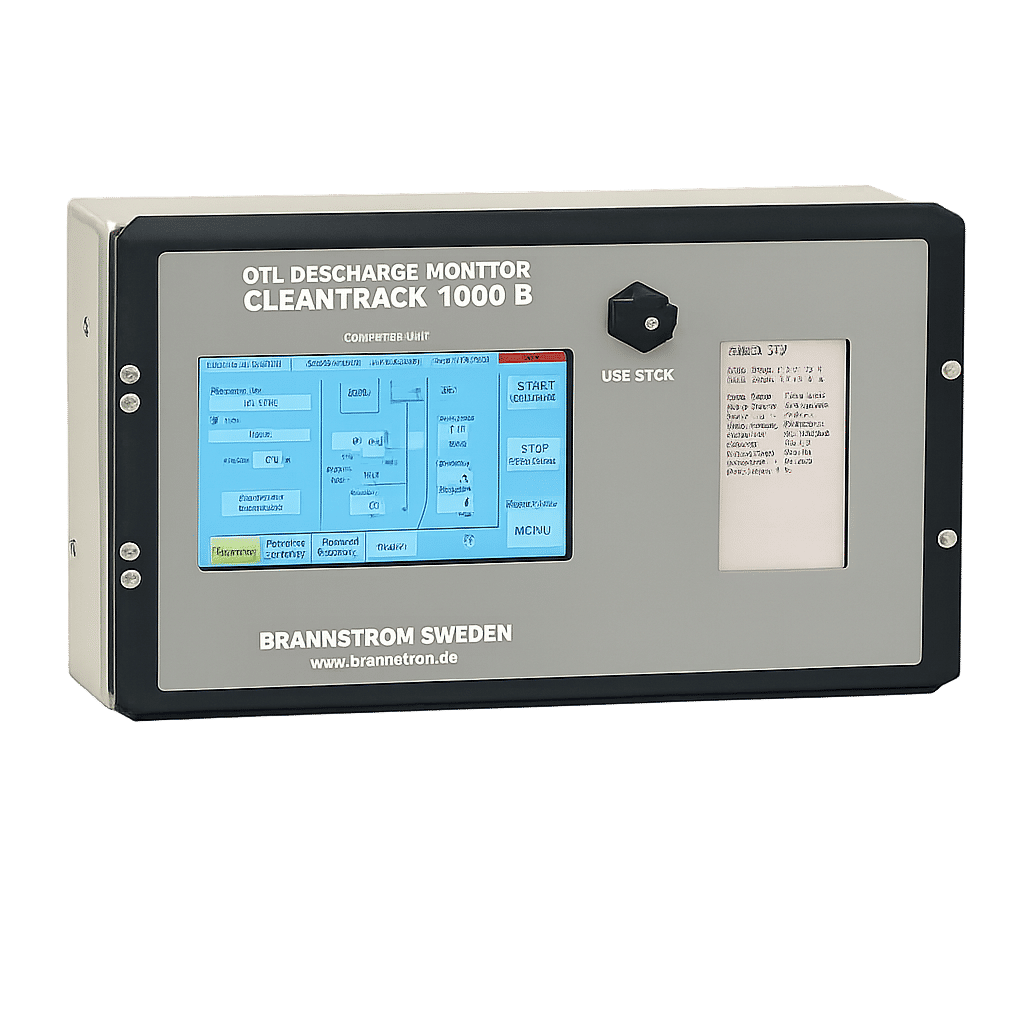

ODME
Brannstrom

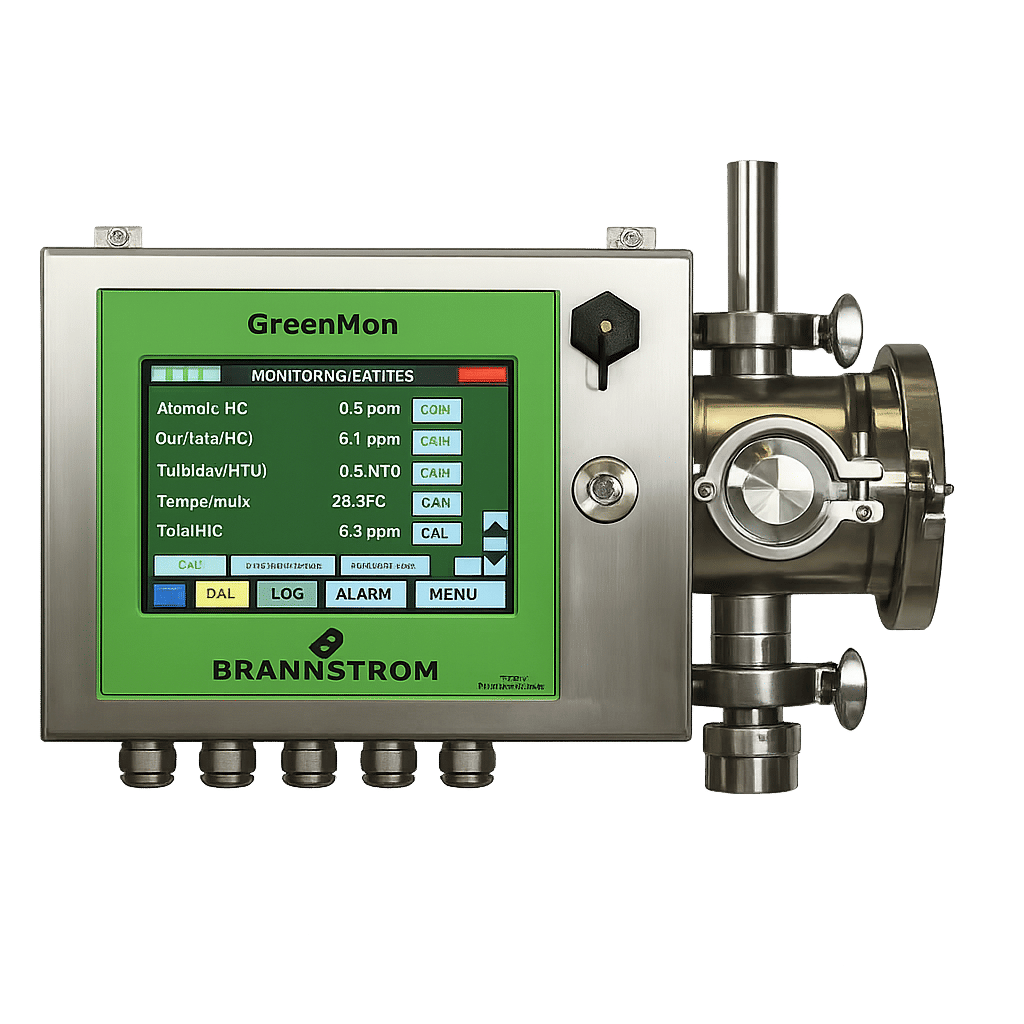

Green Mon
Brannstrom

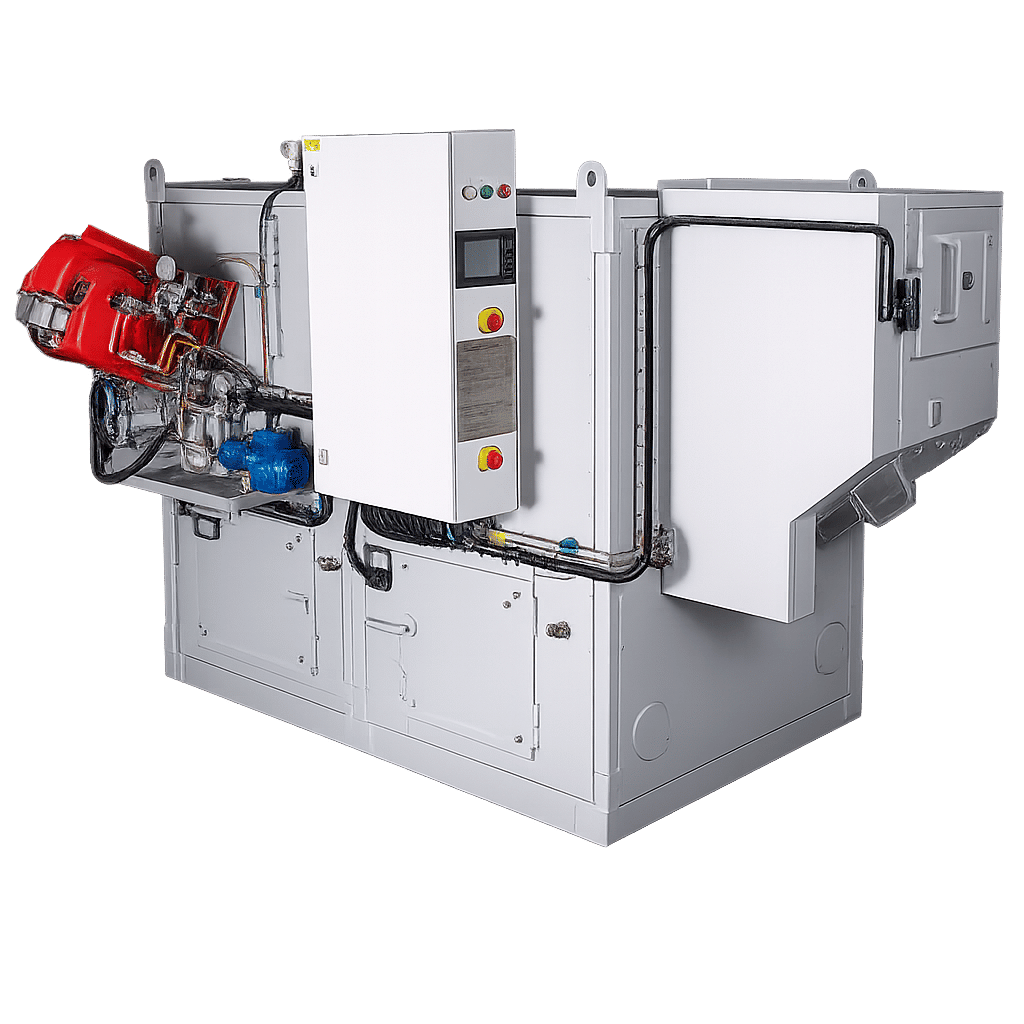

Marine Incenrator- HSINC Series
Hansun

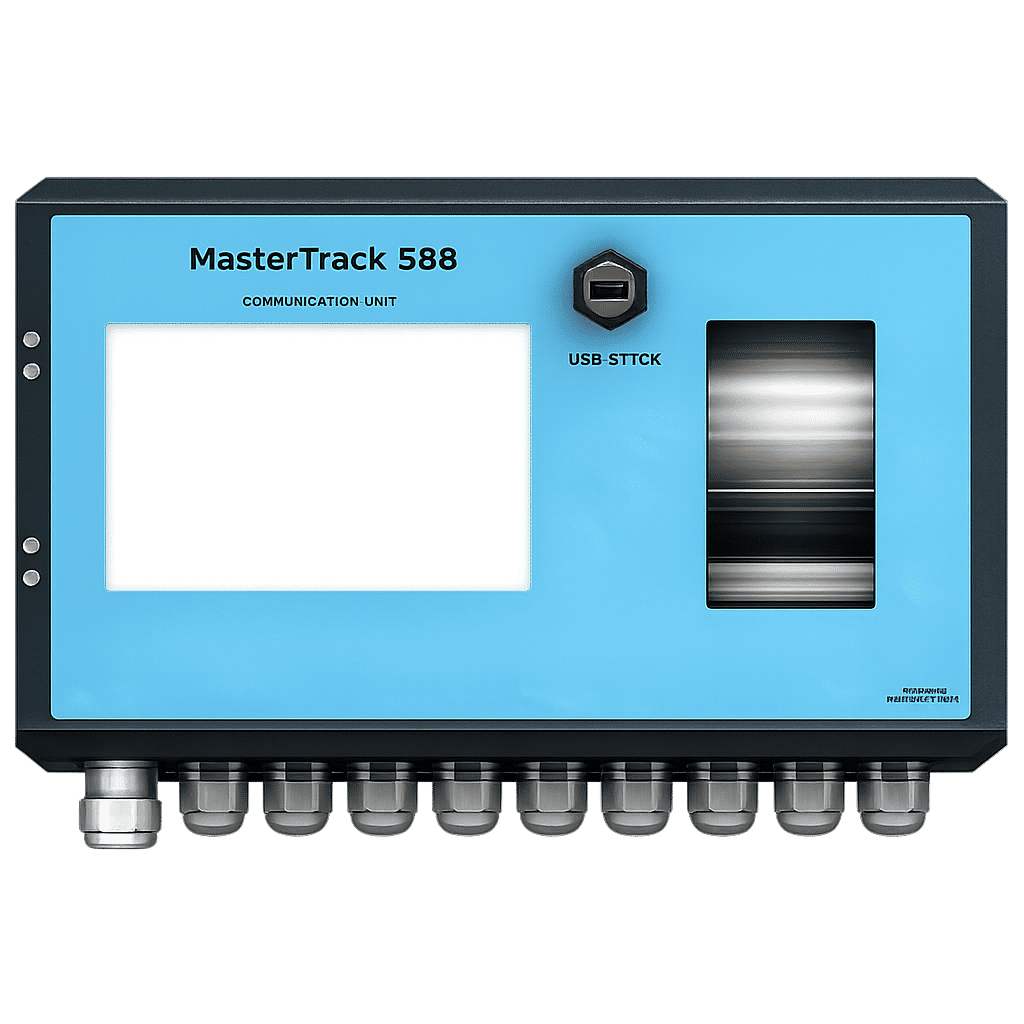

MasterTrack 588
