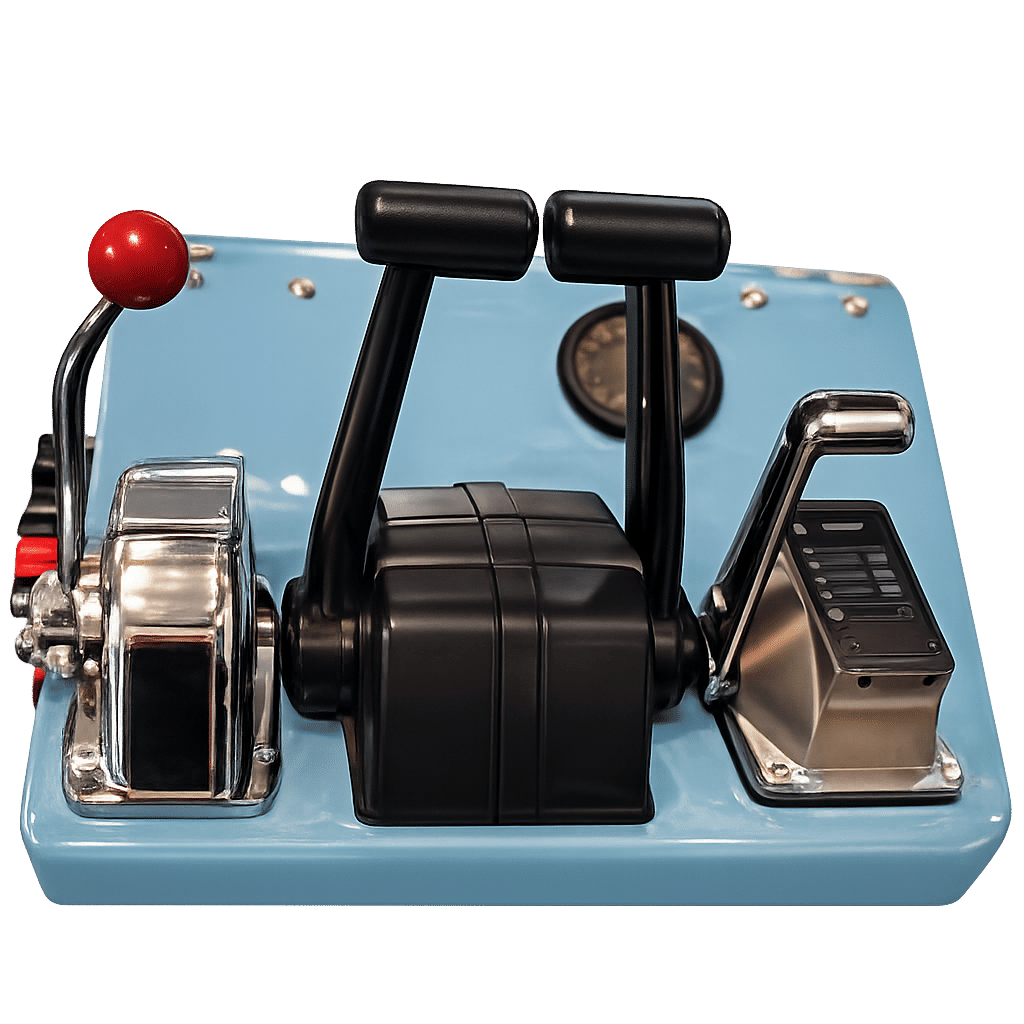

Mechanical flexible shaft control type CJRY-N
The CJRY-N Mechanical Flexible Shaft Control Type Remote Manipulator from Guang Cai Electric (GCE) is a reliable mechanical remote control system designed for marine propulsion control applications. Utilizing flexible shaft transmission technology, the system enables direct mechanical control of engine throttle and gearbox functions from the wheelhouse without requiring complex electronic or pneumatic control systems.
Description

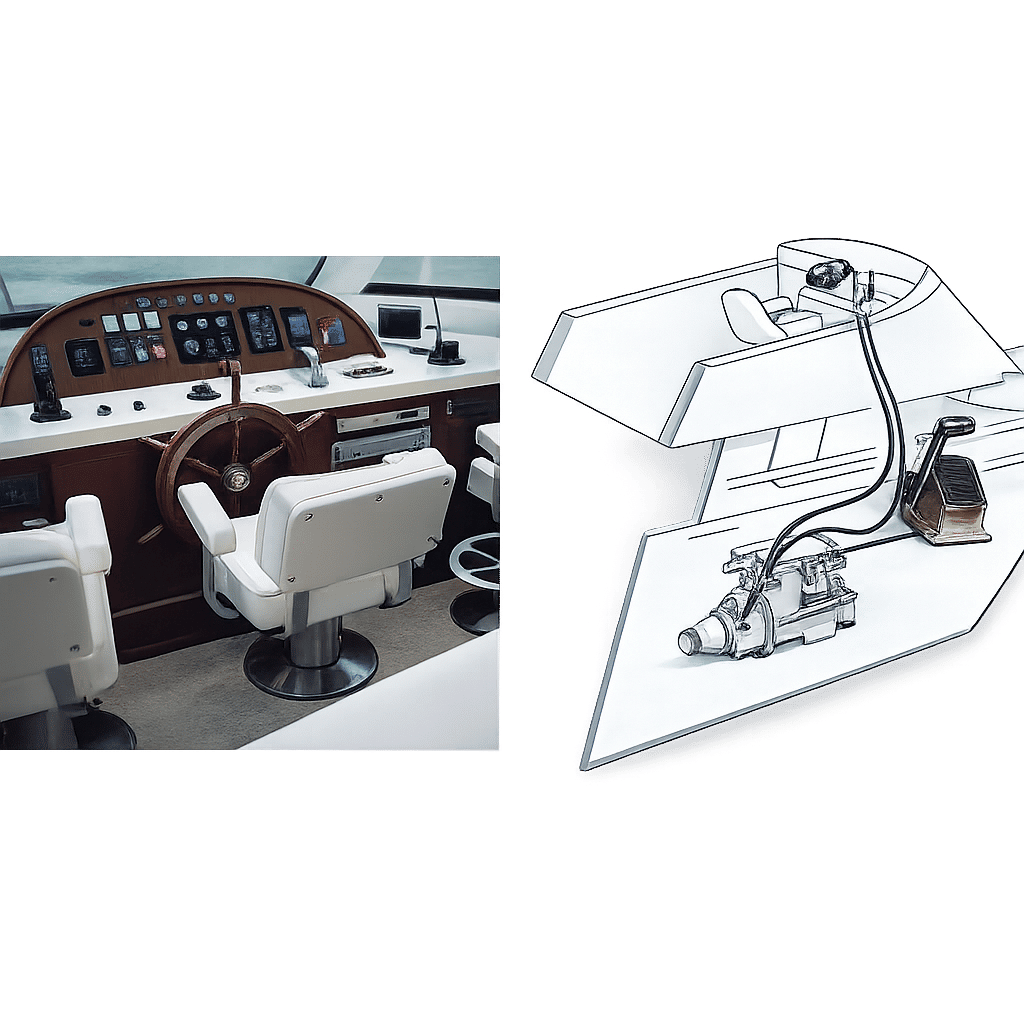

The CJRY-N is a mechanical remote control system that utilizes flexible shaft transmission between the wheelhouse control lever and the engine room control mechanism. The system enables operators to remotely control engine speed and gearbox engagement directly through mechanical linkage, providing highly reliable propulsion control without dependency on electronic or pneumatic systems. The flexible shaft arrangement allows smooth transmission of control commands while accommodating vessel structural layouts and installation requirements. Designed for marine propulsion systems with relatively short control distances, the CJRY-N offers dependable performance and straightforward operation for vessels requiring simple and efficient propulsion control. The system is suitable for vessels where the distance between the wheelhouse and engine room is typically less than 30 meters.
Key Features
- Mechanical flexible shaft control system
- Single-handle propulsion control
- Combined speed and reversing operation
- Direct mechanical transmission
- Main engine speed regulation
- Gearbox control capability
- Main engine speed indication
- Gearbox failure alarm support
- Emergency telegraph function
- Emergency stop functionality
- Simple installation and operation
- Low maintenance requirements
- Reliable mechanical design
System functions
Single lever control
Provides combined engine speed control and gearbox reversing operation through a single operating lever, simplifying vessel maneuvering.
Engine speed regulation
Allows accurate adjustment of engine speed for propulsion control and vessel operation.
Gearbox control
Supports manual reversing gearboxes and electromagnetic valve-controlled reversing systems.
Engine monitoring
Provides engine speed indication and operational feedback for improved situational awareness.
Emergency functions
Supports emergency telegraph communication and remote emergency stop capability for enhanced vessel safety.
Applications
Fishing Vessels: • Main Engine Control • Propulsion Control Systems • Auxiliary Vessel Operations
Patrol Boats: • Navigation & Maneuvering Control • Propulsion Management • Emergency Response Vessels
Workboats: • Harbor Operations • Tug Assistance • Utility Vessel Applications
Yachts: • Mechanical Engine Control • Wheelhouse Propulsion Control • Small Craft Operations
Commercial Vessels: • Small Cargo Vessels • Coastal Transport Vessels • Service Boats
Technical Features
- Single-handle reversing and speed regulation
- Main engine and gearbox failure alarm capability
- Main engine speed indication
- Emergency telegraph functionality
- Remote emergency stop
- 24V power supply for monitoring and alarm functions
- Suitable for wheelhouse-to-engine room distances less than 30 meters
- Compatible with hydraulic governor engines
- Supports manual reversing and electromagnetic valve reversing gearboxes
Compatible engine types
The CJRY-N can be used with various marine diesel engines including:
- 105 Series Engines
- 135 Series Engines
- 150 Series Engines
- 170 Series Engines
- Steyr Marine Engines
- Cummins Marine Engines
- Mannheim Series Engines
- Other compatible marine diesel engines
Benefits
- Simple and reliable operation
- Cost-effective propulsion control solution
- Minimal maintenance requirements
- No complex electronic systems required
- Direct mechanical response
- Improved vessel maneuverability
- Easy installation and servicing
- Long service life
- Proven marine technology
Technical specification
| Parameter | Value |
|---|---|
| Product Type | Mechanical Flexible Shaft Remote Control System |
| Model | CJRY-N |
| Manufacturer | Guang Cai Electric (GCE) |
| Control Method | Mechanical Flexible Shaft |
| Operation | Single Lever Control |
| Engine Speed Control | Yes |
| Gearbox Control | Yes |
| Emergency Stop | Supported |
| Emergency Telegraph | Supported |
| Speed Indication | Supported |
| Alarm Functions | Gearbox Failure Alarm |
| Power Supply | 24V DC |
| Installation Distance | Up to 30 m (Typical) |
| Compatible Engines | Hydraulic Governor Diesel Engines |
| Application | Marine Propulsion Control |
| Operating Environment | Marine & Offshore |
