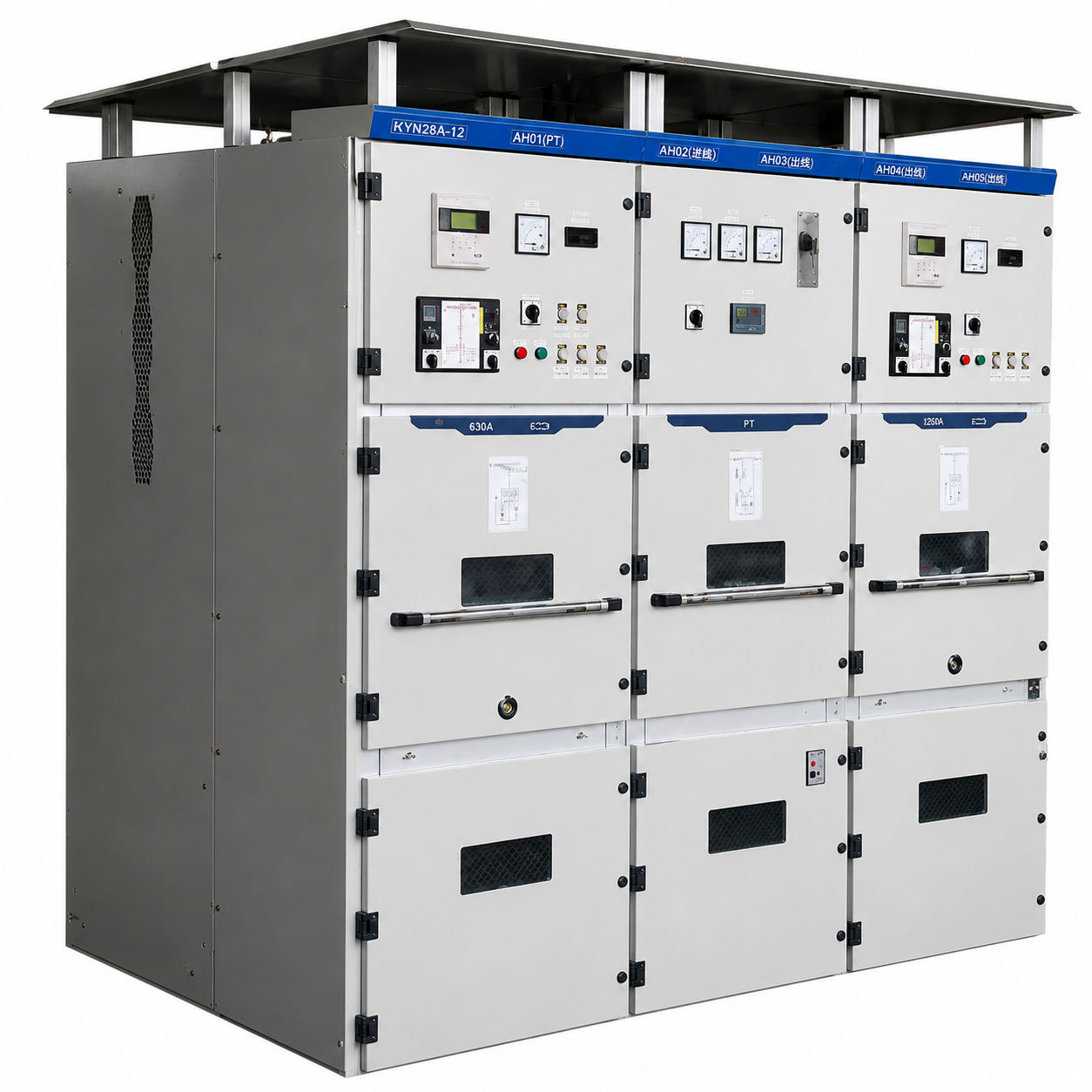

Marine Medium Voltage Switchboard
The Marine Medium Voltage Switchboard from Guang Cai Electric (GCE) is a high-performance marine power distribution solution designed for large commercial vessels, offshore platforms, FPSOs, and specialized marine applications requiring reliable medium-voltage electrical systems. Engineered to operate in demanding marine environments, the switchboard provides safe, efficient, and intelligent power distribution for propulsion systems, thrusters, drilling equipment, cargo handling systems, and critical onboard loads.
Description
The Marine Medium Voltage Switchboard serves as the central power distribution and protection hub for medium-voltage marine electrical networks. Designed to handle high-capacity power generation and distribution requirements, the system enables safe control, monitoring, protection, and distribution of electrical power throughout the vessel or offshore installation. The switchboard integrates advanced protection relays, intelligent monitoring systems, circuit breakers, busbar systems, and communication interfaces to ensure reliable operation and fault management. Its modular architecture allows flexible configuration according to vessel power requirements, propulsion systems, and operational demands. Built to marine classification standards, the switchboard is suitable for newbuild and retrofit projects across commercial shipping, offshore energy, and industrial marine sectors.
Key Features
- Medium voltage power distribution system
- Designed for marine and offshore applications
- Suitable for installations up to 4,000 meters above sea level
- Modular switchboard construction
- High-capacity power distribution
- Advanced protection relay integration
- Intelligent monitoring and diagnostics
- Busbar protection systems
- Generator synchronization support
- Power management system integration
- Remote monitoring capability
- High operational reliability
- Marine-grade construction
- Low maintenance requirements
System functions
Power distribution
Distributes electrical power from generators to propulsion systems, auxiliary equipment, and onboard electrical loads.
Protection & safety
Provides comprehensive electrical protection against overloads, short circuits, earth faults, and abnormal operating conditions.
Generator integration
Supports synchronization, load sharing, and connection of multiple generators within the vessel's electrical network.
Monitoring & diagnostics
Continuously monitors electrical parameters and system status while providing alarm and fault diagnostics.
Power management integration
Interfaces with vessel Power Management Systems (PMS) to optimize power generation and consumption.
Remote supervision
Supports centralized monitoring and control through vessel automation and SCADA systems.
Applications
Commercial Vessels: • Bulk Carriers • Container Ships • Oil Tankers • Chemical Tankers • LNG Carriers • Ro-Ro Vessels
Offshore Vessels: • Offshore Support Vessels (OSV) • Platform Supply Vessels (PSV) • Anchor Handling Tug Supply (AHTS) • Construction Vessels
Offshore Facilities: • FPSO Units • Offshore Platforms • Drilling Rigs • Floating Production Facilities
Specialized Marine Vessels: • Research Vessels • Cable-Laying Vessels • Heavy Lift Vessels • Naval Support Vessels
Benefits
- Reliable medium voltage power distribution
- Enhanced electrical system safety
- Improved power system stability
- Reduced operational downtime
- High efficiency power management
- Flexible and scalable design
- Suitable for demanding marine environments
- Long service life
- Easy maintenance and expansion
- Compliance with marine industry standards
Technical specification
| Parameter | Value |
|---|---|
| Product Type | Marine Medium Voltage Switchboard |
| Manufacturer | Guang Cai Electric (GCE) |
| Voltage Class | Medium Voltage |
| Application | Marine & Offshore Power Distribution |
| Installation Environment | Marine & Offshore |
| Altitude Capability | Up to 4,000 m Above Sea Level |
| Generator Integration | Supported |
| Protection System | Integrated Protection Relays |
| Monitoring System | Real-Time Monitoring |
| Communication Interface | Automation & SCADA Compatible |
| Construction | Modular Marine Design |
| Maintenance Requirement | Low |
| Compliance | Marine Classification Requirements |
Typical integrated systems
The Marine Medium Voltage Switchboard can be integrated with:
- Power Management Systems (PMS)
- Generator Control Systems
- Main Propulsion Systems
- Thruster Control Systems
- Dynamic Positioning Systems
- Marine Automation Systems
- Alarm Monitoring Systems
- Energy Management Systems
- SCADA Platforms
- Emergency Power Systems
