Hydrophonic Systems

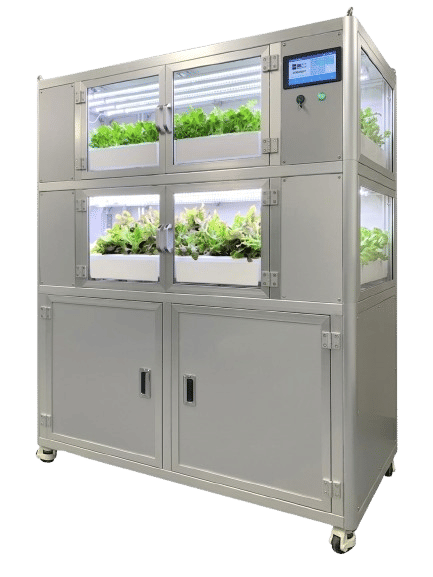

Hydroponic System has been developed for growing vegetables and green leaves onboard ships travelling at sea. This equipment has been designed in accordance to Maritime Labour Convention (MLC) Title 3, Standard A3.2 – Food & Catering, Section 2. It complies with IMO technical specifications, including vibration and shock tests. A maximum of 160 vegetables can be grown on a single cultivation system. The system is fully automated with no need for manual intervention during growing.
Food and Safety
Technical specification
| Parameter | Value |
|---|---|
| Application | Growing vegetables and green leaves onboard ships travelling at sea |
| Compliance | Maritime Labour Convention (MLC) Title 3, Standard A3.2 – Food & Catering, Section 2 |
| Design Standard | Comply with IMO technical specifications |
| Testing | Vibration and Shock Tests |
| Maximum Capacity | 160 vegetables on a single cultivation system |
| Liquid Fertilizer | 5 L supplied with the system, lasts approximately 3–5 years |
| Growing Medium | Urethane Medium and Seeds |
| Soil Requirement | No soil required |
| Water Supply | Fresh water supply from vessel |
| Water Consumption | Around 1 L/day |
| Nutrient Supply | Liquid fertilizer provides nutrients directly to the plants through water instead of soil |
| Operation | Fully automated, no manual intervention required for growing |
