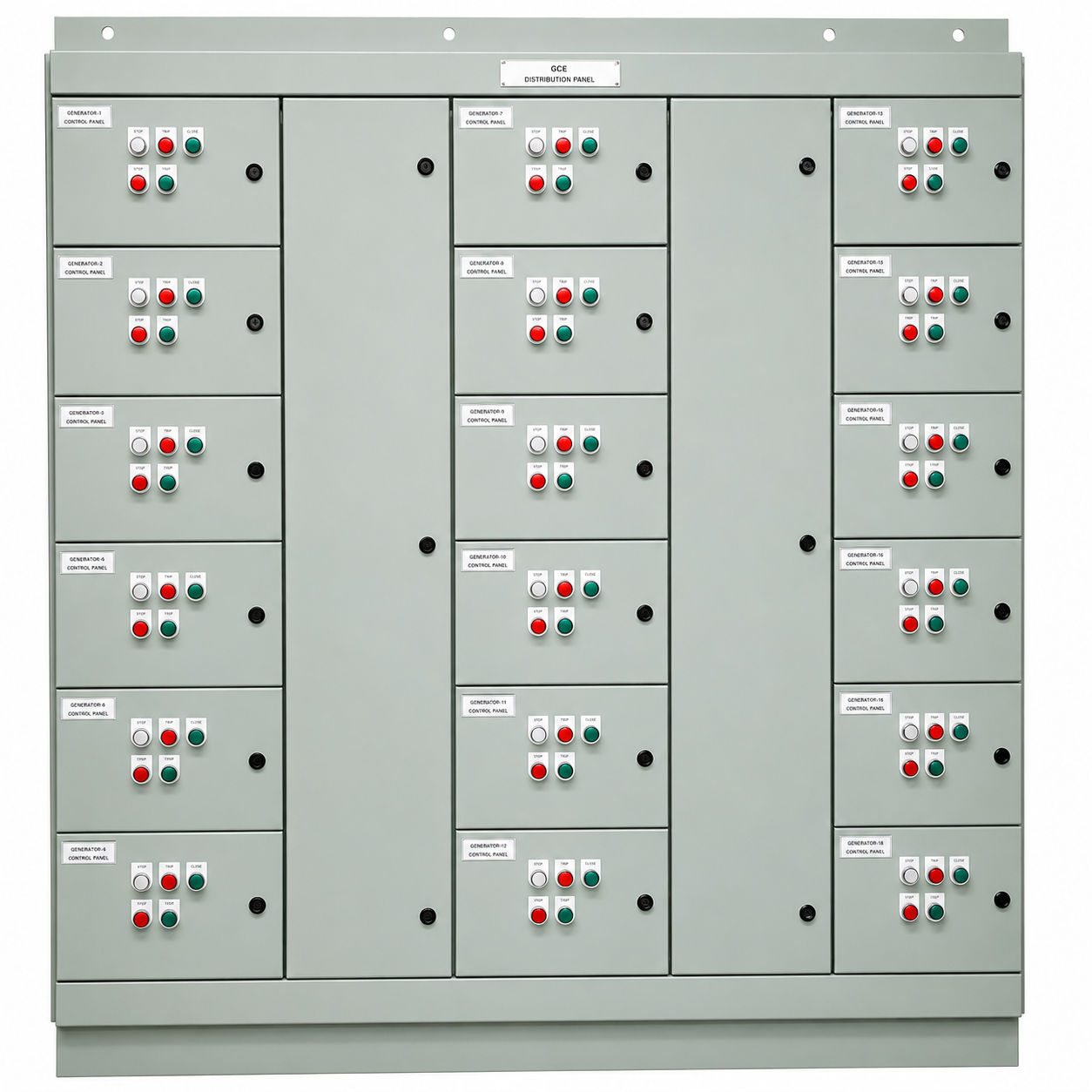

GCGSP-F Fixed Motor Control Center
The GCGSP-F Fixed Motor Control Center (MCC) from Guang Cai Electric (GCE) is a marine low-voltage motor control and power distribution system designed for centralized control, protection, and management of three-phase asynchronous motors onboard ships and offshore installations. The system provides reliable motor operation for essential marine equipment, including pumps, fans, compressors, cargo handling systems, ventilation units, and auxiliary machinery.
Description
The GCGSP-F Fixed Motor Control Center is engineered to provide centralized operation and protection of marine electrical motors throughout the vessel. The system enables motor start, stop, forward rotation, and reverse rotation functions while continuously monitoring motor operating conditions. Integrated protection devices safeguard motors against overloads, short circuits, undervoltage conditions, and phase failures, helping prevent equipment damage and operational interruptions. The fixed-unit design provides a durable and economical solution for marine applications where simplicity, reliability, and ease of maintenance are key requirements. The system is suitable for installation in engine rooms, machinery control spaces, pump rooms, and electrical switchboard rooms across a wide range of vessel types.
Key Features
- Fixed module motor control design
- Centralized motor operation
- Motor start and stop control
- Forward and reverse motor rotation control
- Overload protection
- Short-circuit protection
- Undervoltage protection
- Phase failure protection
- Reliable marine-grade construction
- Easy operation and maintenance
- Modular expansion capability
- Suitable for continuous-duty marine applications
System functions
Motor start & stop control
Provides safe and reliable operation of three-phase asynchronous motors.
Forward & reverse rotation
Supports forward and reverse operation for equipment requiring directional control.
Overload protection
Protects motors from excessive current conditions that could cause overheating or damage.
Short circuit protection
Rapidly isolates fault conditions to protect motors and associated electrical systems.
Undervoltage protection
Prevents motor damage caused by low-voltage operating conditions.
Phase failure protection
Detects phase loss and automatically protects motors from abnormal operation.
Centralized monitoring
Provides operators with a centralized platform for motor control and system supervision.
Applications
Engine Room Systems
- Cooling Water Pumps
- Fuel Transfer Pumps
- Lubrication Oil Pumps
- Bilge Pumps
- Ballast Pumps
HVAC Systems
- Ventilation Fans
- Air Handling Units
- Air Conditioning Equipment
Cargo Handling Systems
- Cargo Pumps
- Conveyor Systems
- Winches
- Auxiliary Handling Equipment
Utility Systems
- Fresh Water Pumps
- Sewage Treatment Systems
- Fire Fighting Pumps
- Service Water Systems
Offshore Installations
- Process Pumps
- Utility Equipment
- Ventilation Systems
- Auxiliary Machinery
Benefits
- Reliable motor operation
- Enhanced equipment protection
- Reduced maintenance requirements
- Improved operational safety
- Centralized motor management
- Easy troubleshooting and servicing
- Cost-effective system design
- Long service life
- Suitable for marine environments
- Simplified electrical system management
Technical specification
| Parameter | Value |
|---|---|
| Product Type | Fixed Motor Control Center (MCC) |
| Model | GCGSP-F |
| Manufacturer | Guang Cai Electric (GCE) |
| Configuration | Fixed Type |
| Motor Type | Three-Phase Asynchronous Motors |
| Control Functions | Start, Stop, Forward & Reverse |
| Protection Functions | Overload, Short Circuit, Undervoltage, Phase Failure |
| Installation | Marine & Offshore Applications |
| Monitoring Capability | Centralized Motor Monitoring |
| Maintenance | Easy Access Design |
| Construction | Marine Grade Industrial Design |
| Application | Motor Control & Power Distribution |
Typical controlled equipment
The GCGSP-F can be used to control:
- Ballast Pumps
- Bilge Pumps
- Fire Pumps
- Cooling Water Pumps
- Fuel Transfer Pumps
- Ventilation Fans
- Air Conditioning Units
- Compressors
- Cargo Handling Equipment
- Auxiliary Machinery Systems
Available configurations
Fixed Type (GCGSP-F)
- Economical design
- Compact construction
- Simple installation
- Reliable operation
- Low maintenance requirements
Draw-Out Type (GCGSP-D)
- Withdrawable motor control units
- Faster maintenance procedures
- Easier module replacement
- Reduced downtime
