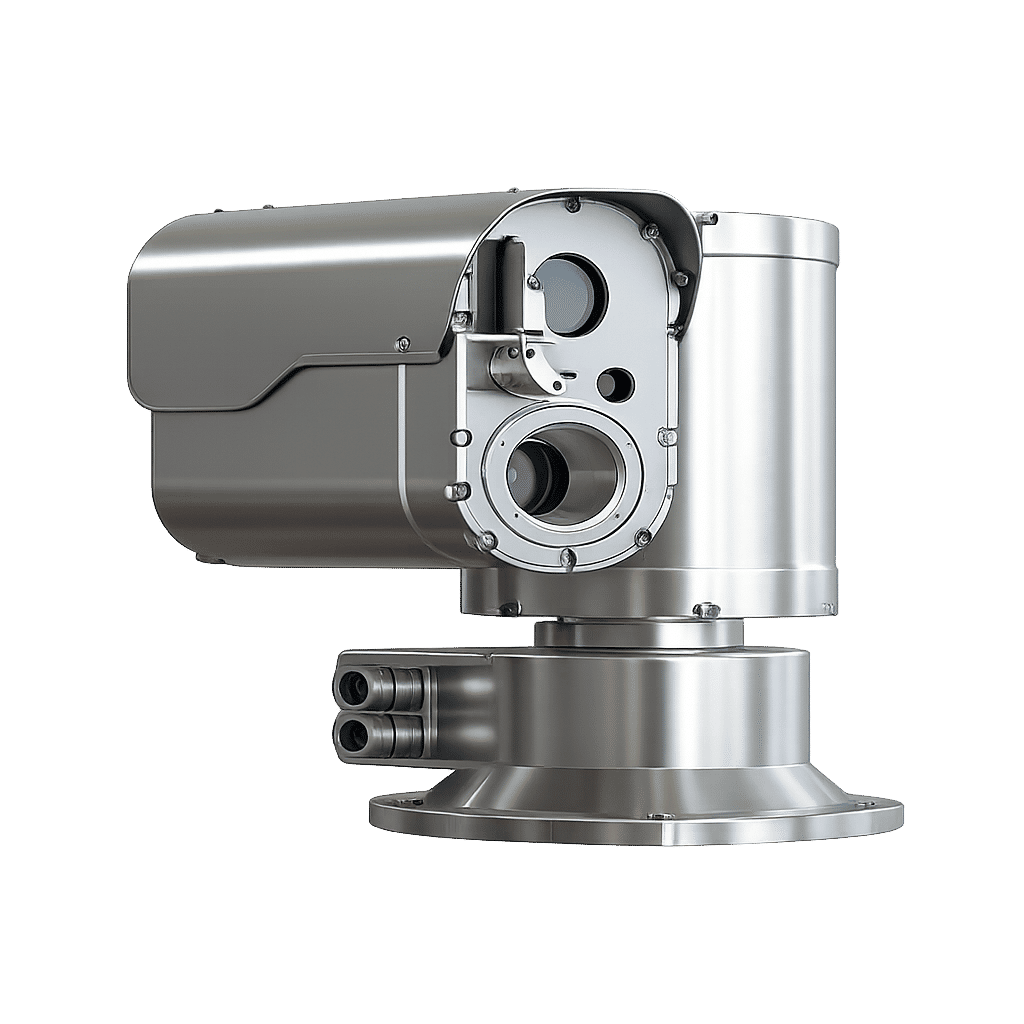

GC-XDPN Series
The GC-XDPN Series Explosion-Proof PTZ Camera from Arges Marine is a high-performance surveillance solution designed for hazardous marine, offshore, oil & gas, and industrial environments. Certified for ATEX, IECEx, and KCs hazardous area applications, the system provides reliable video monitoring, situational awareness, and operational safety in Zone 1 and Zone 2 classified areas.
Description
Featuring a 2MP high-definition camera, 36x optical zoom, 360° continuous pan rotation, and 300-meter infrared illumination, the GC-XDPN Series delivers clear long-range monitoring under both daylight and low-light conditions. Its rugged IP68-rated housing and integrated wiper system ensure dependable performance in harsh offshore and marine environments.
Specifications
- Equipment: Explosion-Proof PTZ Camera
- Manufacturer: Arges Marine
- Model: GC-XDPN Series
- Camera Resolution: 2 Megapixel (2MP)
- Certification: ATEX / IECEx / KCs
- Hazardous Area Classification: Zone 1 & Zone 2
- Zoom Capability: 36x Optical Zoom
- Infrared Illumination: Up to 300 m
- Protection Rating: IP68
- Applications: Marine, Offshore, Oil & Gas, Industrial Facilities
Technical specification
| Parameter | Specification |
|---|---|
| Camera Type | Explosion-Proof PTZ Camera |
| Resolution | 2MP HD Camera |
| Pan Rotation | 360° Continuous Rotation |
| Tilt Range | ±90° |
| Optical Zoom | 36x |
| Infrared Illumination | Up to 300 m |
| Lens Cleaning | Built-In Wiper System |
| Environmental Protection | IP68 |
| Hazardous Area Approval | ATEX / IECEx / KCs |
| Installation Environment | Marine & Offshore |
| Operation | All-Weather Monitoring |
Available configurations
Dual ptz camera
Dual-camera configuration providing enhanced monitoring capability for critical marine and offshore applications.
Speed dome camera
High-speed pan, tilt, and zoom functionality for wide-area surveillance and target tracking.
Zoom bullet camera
Long-range monitoring solution with powerful optical zoom for vessel and perimeter surveillance.
Bullet camera
Compact fixed-position monitoring camera suitable for continuous observation of specific areas.
Flame detection camera
Integrated flame detection technology for early fire identification in hazardous environments.
Applications
- Offshore Oil & Gas Platforms
- FPSO Vessels
- Tankers
- LNG & LPG Carriers
- Marine Terminals
- Chemical Processing Plants
- Hazardous Cargo Areas
- Offshore Wind Farms
- Refineries
- Port Facilities
- Berthing Operations
- Vessel Navigation Support
Features
- ATEX, IECEx, and KCs certified
- Suitable for Zone 1 and Zone 2 hazardous areas
- High-definition 2MP camera system
- 360° continuous pan rotation
- ±90° tilt movement
- Powerful 36x optical zoom
- Long-distance 300 m infrared illumination
- Built-in automatic lens wiper
- IP68 marine-grade protection
- All-weather operation capability
- Explosion-proof enclosure design
- Supports navigation and operational monitoring
- Suitable for harsh offshore environments
Benefits
- Enhances safety in hazardous environments
- Provides reliable surveillance in explosive atmospheres
- Improves situational awareness during navigation and berthing
- Delivers clear long-range monitoring capabilities
- Supports continuous operation in severe weather conditions
- Reduces maintenance through integrated wiper system
- Suitable for critical marine and offshore applications
- Ensures compliance with hazardous area requirements
- Increases operational visibility and security
- Provides dependable performance in corrosive environments
Typical Installation Areas
- Navigation Bridge Wings
- Cargo Decks
- Offshore Platforms
- Loading Arms
- Manifolds
- Helidecks
- Pump Rooms
- Hazardous Process Areas
- Jetty Facilities
- Tank Farms
- LNG Transfer Areas
- Vessel Perimeters
