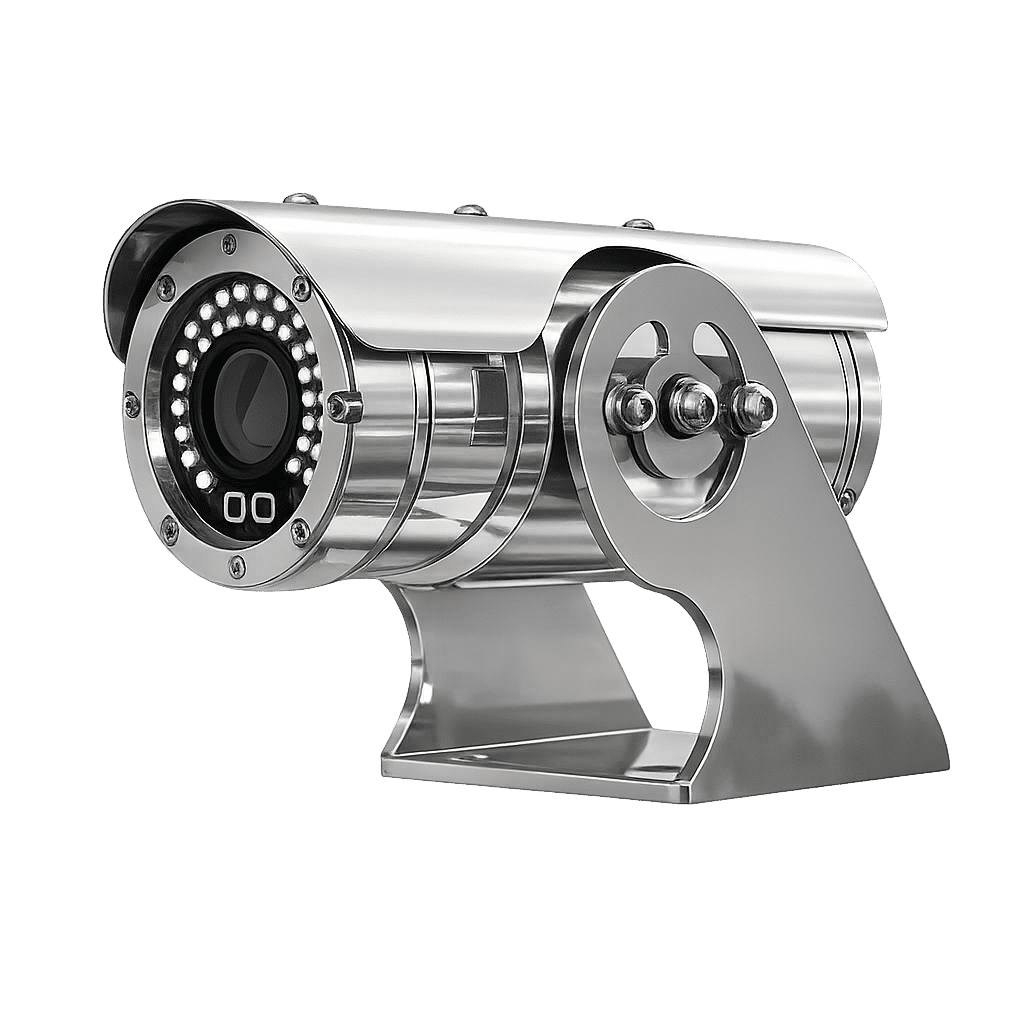

GC-M2BNF SERIES
The GC-M2BNF Series Flame Detection Camera from Arges Marine is an advanced flame detection and surveillance solution designed for hazardous marine, offshore, oil & gas, and industrial environments. Utilizing dual-frame infrared sensor technology, the system provides rapid flame detection and continuous monitoring of critical areas where fire hazards may exist.
Description
Certified to ATEX and IECEx standards for Zone 1 and Zone 2 hazardous areas, the GC-M2BNF Series combines fire detection and visual monitoring capabilities in a compact, rugged enclosure. With wide-angle coverage, real-time detection, and IP66/IP68 environmental protection, the system is ideal for perimeter security, process monitoring, and fire safety applications in harsh operating conditions.
Specifications
| Parameter | Value |
|---|---|
| Equipment | Marine IR Sensor Camera System |
| Manufacturer | Arges Marine |
| Model | GC-M2BNF Series |
| Detection Technology | Dual Frame Infrared Sensor |
| Certification | ATEX / IECEx |
| Hazardous Area Classification | Zone 1 & Zone 2 |
| Detection Distance | Up to 30 m |
| Detection Angle | 80° |
| Power Supply | PoE / 12V DC |
| Protection Rating | IP66 / IP68 |
| Applications | Marine, Offshore, Oil & Gas & Industrial Facilities |
Technical specification
| Parameter | Specification |
|---|---|
| Camera Type | Flame Detection Camera |
| Detection Technology | Dual Frame Infrared Sensor |
| Detection Distance | Up to 30 m |
| Detection Angle | 80° |
| Hazardous Area Approval | ATEX / IECEx |
| Hazardous Area Rating | Zone 1 & Zone 2 |
| Power Supply | PoE / 12V DC |
| Protection Rating | IP66 / IP68 |
| Monitoring Function | Flame Detection & Surveillance |
| Installation Environment | Marine & Offshore |
| Housing Design | Compact Rugged Construction |
| Operation | Continuous 24/7 Monitoring |
Applications
- Offshore Oil & Gas Platforms
- FPSO Facilities
- LNG & LPG Terminals
- Tankers
- Cargo Vessels
- Fuel Transfer Stations
- Chemical Processing Plants
- Refineries
- Hazardous Storage Areas
- Marine Terminals
- Perimeter Security Systems
- Industrial Process Facilities
Features
- ATEX and IECEx certified design
- Suitable for Zone 1 and Zone 2 hazardous areas
- Dual-frame infrared flame detection technology
- Rapid flame detection capability
- Detection range up to 30 meters
- Wide 80° monitoring angle
- Integrated fire detection and surveillance functionality
- PoE and 12V DC power options
- IP66 / IP68 environmental protection
- Compact and rugged construction
- Designed for harsh marine environments
- Continuous real-time monitoring
- Suitable for offshore and industrial safety applications
Benefits
- Provides early flame detection for enhanced fire safety
- Improves situational awareness in hazardous areas
- Reduces fire response time
- Supports continuous monitoring of critical assets
- Reliable operation in offshore and marine environments
- Wide-area coverage with minimal installation points
- Suitable for explosive atmosphere installations
- Durable design minimizes maintenance requirements
- Enhances facility security and operational safety
- Supports compliance with hazardous area safety requirements
Typical Installation Areas
- Cargo Decks
- Fuel Transfer Areas
- LNG Loading Stations
- Tank Farms
- Pump Rooms
- Offshore Production Modules
- Process Areas
- Helidecks
- Marine Terminals
- Jetty Facilities
- Security Perimeters
- Hazardous Storage Zones
