Electrical Optic Deflection / Torque Monitoring System (XT-EOD/TM)
The XT-EOD/TM Electrical Optic Deflection / Torque Monitoring System is an advanced structural monitoring solution designed to measure hull deflection and torsional stress in real time for marine and offshore applications. Utilizing non-contact optical sensing technology, the system continuously detects structural deformation and provides accurate information on vessel loading conditions, hull behavior, and structural integrity.
Description
The system enables vessel operators to monitor longitudinal hull deflection and torsion under varying operational and environmental conditions, providing valuable data to support safe vessel operation and informed decision-making. By continuously evaluating structural movement, the XT-EOD/TM can provide early warning of abnormal stress conditions that may impact vessel safety or exceed design limits. Designed for integration with vessel monitoring and automation systems, the XT-EOD/TM delivers high-accuracy measurement data and real-time visualization through dedicated monitoring interfaces.
Applications
- Bulk carriers
- Container vessels
- Tankers
- LNG and LPG carriers
- Offshore support vessels
- Floating offshore structures
- Marine structural integrity monitoring
- Hull stress monitoring systems
Key Features
- Real-time hull deflection monitoring
- Real-time torsion monitoring
- Contactless optical sensing technology
- Continuous structural deformation measurement
- High-accuracy data acquisition
- Early warning of abnormal stress conditions
- Real-time monitoring and visualization
- Integration with vessel monitoring systems
- Suitable for marine and offshore environments
- Continuous structural integrity assessment
System capabilities
Hull deflection monitoring
Measures longitudinal hull deflection caused by loading conditions, wave action, and operational stresses, providing continuous insight into vessel structural behavior.
Torsion monitoring
Monitors twisting forces acting on the vessel structure and detects torsional deformation that may occur during operation.

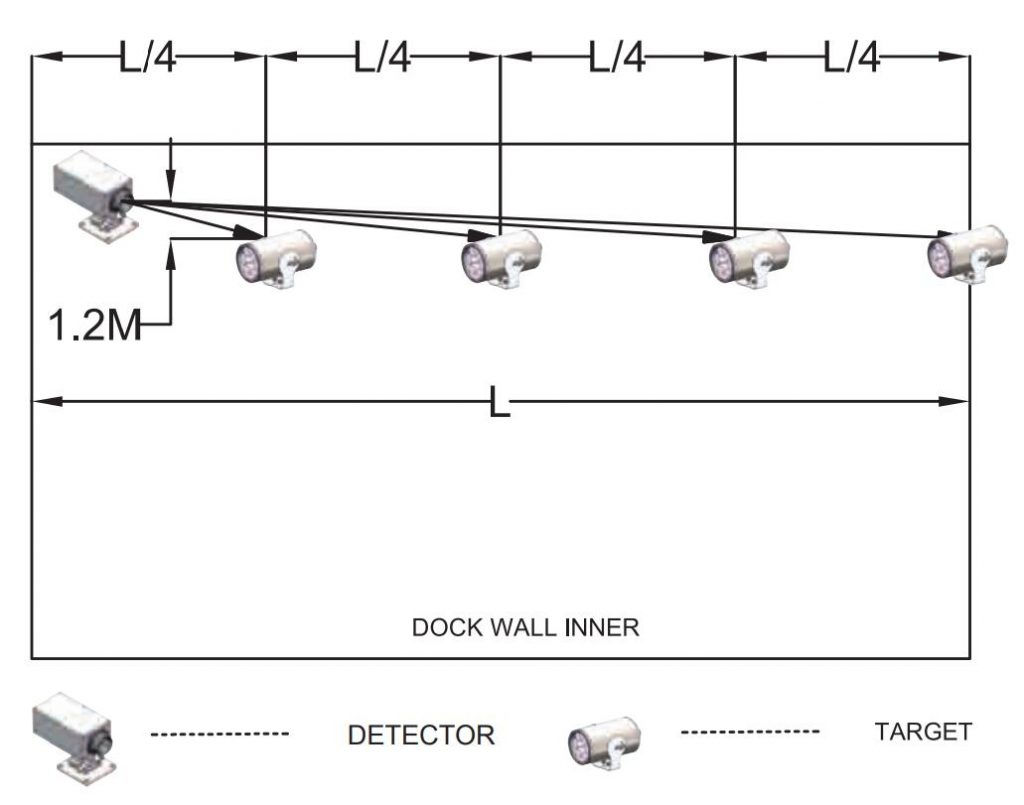

Optical measurement technology
Utilizes non-contact optical sensing technology to measure structural movement without introducing mechanical wear or interference with vessel structures.
Real-time structural assessment
Provides operators with live structural performance data, enabling proactive operational decisions and enhanced safety management.
Alarm & warning functions
Generates alerts when measured parameters exceed predefined thresholds, helping operators identify potential structural concerns before they become critical.
Benefits
- Improved structural integrity monitoring
- Early detection of abnormal stress conditions
- Enhanced vessel safety
- Real-time operational awareness
- Accurate measurement of hull deformation
- Supports informed operational decision-making
- Reduced risk of structural overload
- Continuous monitoring without physical contact
- Suitable for demanding marine environments
Typical Integrated Systems
- Vessel Monitoring Systems
- Loading Computer Systems
- Stability Management Systems
- Cargo Monitoring Systems
- SCADA Platforms
- Alarm Management Systems
- Fleet Performance Monitoring Systems
