Charging & Discharging Panel
The GCPC Series Charging & Discharging Panel from Guang Cai Electric (GCE) is a marine battery charging, discharging, and monitoring solution designed to support critical onboard DC power systems. Developed in accordance with CB-86 marine standards, the panel provides reliable battery management for emergency power systems, communication equipment, navigation systems, automation systems, and essential vessel control circuits.
Description
The GCPC Series Charging & Discharging Panel is designed to manage the charging, discharging, monitoring, and protection of marine battery banks. The system ensures batteries remain in optimal operating condition while supplying reliable DC power to critical vessel systems during normal operation and emergency situations. The panel provides controlled battery charging, battery discharge testing, voltage monitoring, current monitoring, and protective functions to maximize battery life and maintain system readiness. Its modular design allows easy integration with emergency switchboards, generator systems, automation platforms, navigation equipment, communication systems, and vessel safety systems.
Key Features
- Marine-grade battery charging system
- Battery discharge management
- Supports multiple battery voltages
- 12V battery bank support
- 24V battery bank support
- 220V battery bank support
- Continuous battery monitoring
- Voltage and current indication
- Battery protection functions
- CB-86 compliant design
- Easy operation and maintenance
- Modular construction
- Reliable marine performance
- Custom-built configurations available
System functions
Battery charging
Provides controlled charging of battery banks to maintain optimum battery performance and operational readiness.
Battery discharging
Supports controlled discharge operations for battery testing, maintenance, and performance verification.
Voltage monitoring
Continuously monitors battery voltage and charging conditions.
Current monitoring
Displays charging and discharging current values for operational supervision.
Battery protection
Protects battery systems against abnormal charging conditions and operational faults.
System status indication
Provides clear visual indication of charging, discharging, and battery operating status.
Applications
Emergency Power Systems: • Emergency Generator Starting Batteries • Emergency Switchboard Battery Banks • Emergency Lighting Systems
Navigation Systems: • Bridge Navigation Equipment • Gyrocompass Systems • Radar Systems • AIS Equipment
Communication Systems: • GMDSS Equipment • Radio Communication Systems • Internal Communication Systems
Automation Systems: • Alarm Monitoring Systems • Power Management Systems • PLC Control Systems • Vessel Automation Systems
Marine & Offshore Installations: • Commercial Vessels • Tankers • Bulk Carriers • Container Ships • Offshore Support Vessels • Offshore Platforms
Benefits
- • Reliable battery management
- • Increased battery service life
- • Continuous DC power availability
- • Improved system safety
- • Easy maintenance and testing
- • Enhanced emergency readiness
- • Compliance with marine standards
- • Flexible system configuration
- • Custom design options available
- • Reduced operational downtime
Supported Battery Configurations
| Battery System | Application |
|---|---|
| 12V DC | Small control and monitoring systems |
| 24V DC | Marine automation and engine starting systems |
| 220V DC | Large vessel emergency and critical power systems |

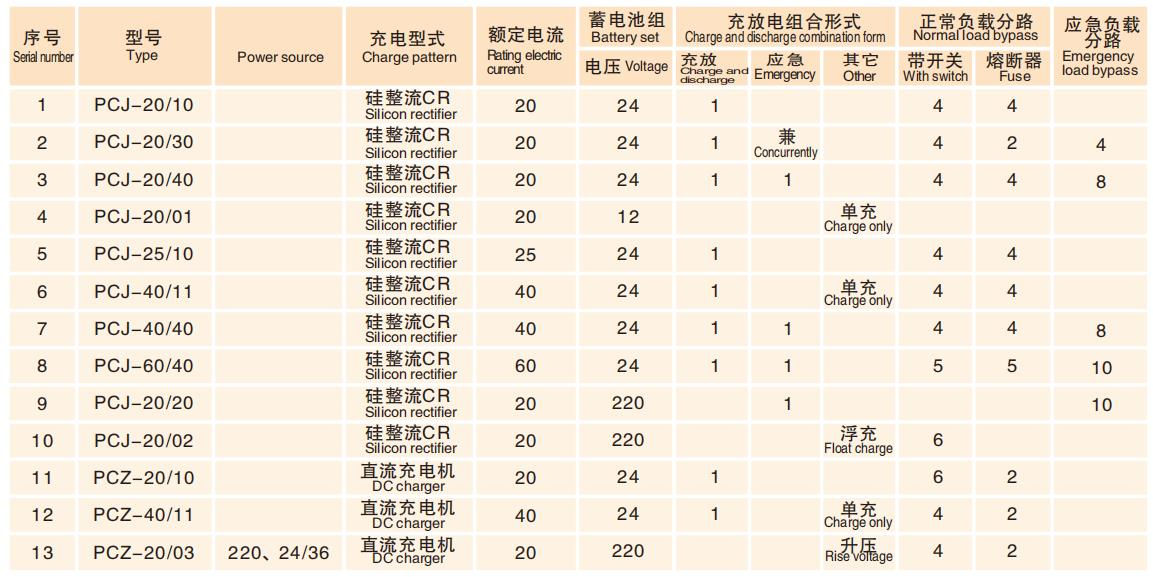

Technical specification
| Parameter | Value |
|---|---|
| Product Type | Charging & Discharging Panel |

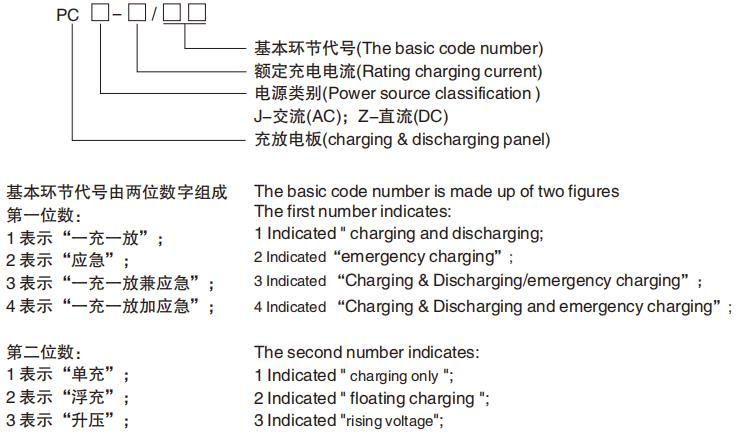

| Model | GCPC Series |
| Manufacturer | Guang Cai Electric (GCE) |
| Standard | CB-86 |
| Supported Battery Voltages | 12V, 24V, 220V DC |
| Function | Battery Charging & Discharging |
| Monitoring | Voltage & Current Monitoring |
| Protection | Integrated Battery Protection |
| Installation | Marine & Offshore Applications |
| Construction | Modular Design |
| Custom Design | Available Upon Request |
| Maintenance | Easy Operation & Maintenance |
Typical integrated systems
The GCPC Series can be integrated with:
- Emergency Switchboards
- Main Switchboards
- Power Management Systems (PMS)
- Alarm Monitoring Systems (AMS)
- Generator Starting Systems
- Navigation Equipment
- Communication Equipment
- Vessel Automation Systems
- UPS Systems
- Emergency Lighting Systems
