Automatic Start Control Box

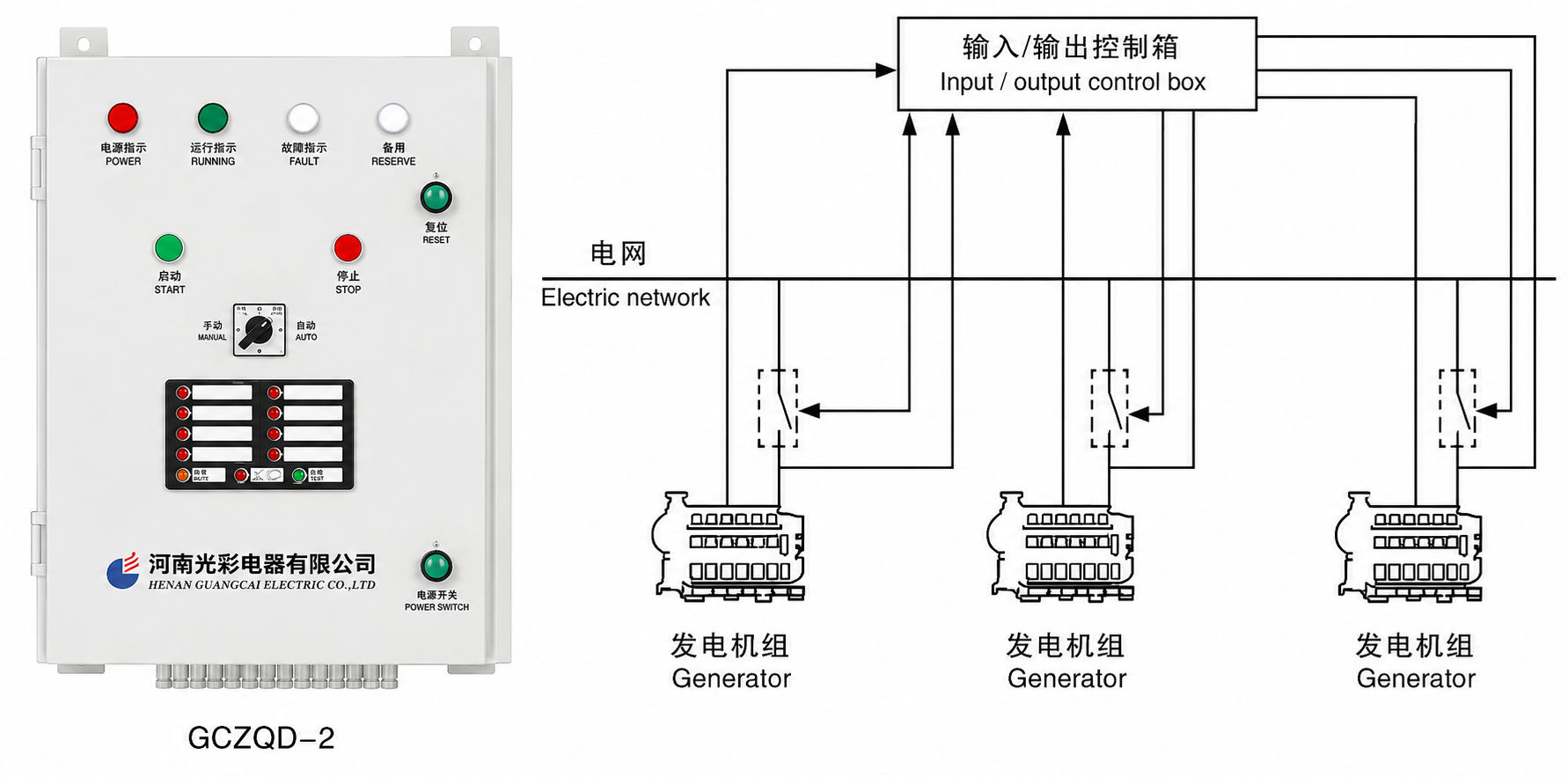

The GCZQD-2 Automatic Start Control Box from Guang Cai Electric (GCE) is an intelligent engine starting and protection controller designed for marine emergency generators, diesel generator sets, emergency power systems, and auxiliary engines. The unit provides automatic and manual engine starting functions while continuously monitoring critical engine parameters to ensure safe and reliable operation.
Description
The GCZQD-2 Automatic Start Control Box is designed to manage the automatic starting, monitoring, protection, and shutdown of diesel engines and emergency generator sets. The controller continuously monitors battery voltage, engine speed, lubricating oil pressure, and cooling water temperature. In the event of abnormal operating conditions, the system generates alarms and initiates protective shutdowns when necessary to prevent engine damage. The unit supports both automatic and manual operating modes and incorporates multiple start attempts to improve engine starting reliability during emergency situations.
Key Features
- Automatic engine starting
- Manual engine starting
- Emergency generator control
- Multiple start attempt capability
- Engine protection functions
- Battery voltage monitoring
- Lubricating oil pressure monitoring
- Cooling water temperature monitoring
- Overspeed protection
- Start failure alarm
- Automatic shutdown protection
- Marine-grade construction
- High reliability operation
- Easy maintenance and operation
System functions
Automatic start mode
Automatically initiates engine starting sequences when required by the vessel power management or emergency power system.
Manual start mode
Allows operators to manually start and control the engine when required.
Multi-start function
Performs up to three consecutive automatic starting attempts to improve startup success rates.
Alarm monitoring
Continuously monitors engine operating conditions and activates alarm outputs when abnormal conditions occur.
Protective shutdown
Automatically stops the engine under critical fault conditions to prevent equipment damage.
Alarm & protection functions
Start failure alarm
An alarm is activated if the engine fails to start after three consecutive attempts within 40 seconds.
Battery undervoltage alarm
Alarm activates when battery voltage falls below: 23 VDC
Overspeed protection
The engine is automatically stopped and an alarm is activated when engine speed exceeds: 115% of rated speed
Cooling water high temperature alarm
Alarm activates when fresh water temperature reaches: 90°C ± 2°C
Low lubricating oil pressure alarm
Alarm activates when lubricating oil pressure falls below: 0.12 – 0.15 MPa
Critical lubricating oil pressure shutdown
The engine is automatically stopped and alarmed when lubricating oil pressure falls below: 0.08 – 0.10 MPa
Technical specification
| Parameter | Value |
|---|---|
| Product Type | Automatic Start Control Box |
| Model | GCZQD-2 |
| Manufacturer | Guang Cai Electric (GCE) |
| Working Power Supply | DC 24V (+30%, -25%) |
| Start Modes | Automatic & Manual |
| Continuous Start Attempts | 3 Times |
| Start Failure Alarm | After 3 Failed Starts Within 40 Seconds |
| Battery Undervoltage Alarm | < 23V |
| Overspeed Protection | > 115% Rated Speed |
| High Water Temperature Alarm | 90°C ± 2°C |
| Low Lubricating Oil Alarm | 0.12 – 0.15 MPa |
| Critical Oil Pressure Shutdown | 0.08 – 0.10 MPa |
| Alarm Output | Dry Contact Closure Signal |
| Installation | Marine & Industrial Applications |
Applications
Marine Emergency Generator Systems: • Emergency Generator Auto Start • Emergency Power Distribution Systems • Emergency Switchboard Applications
Diesel Generator Sets: • Standby Generator Control • Auxiliary Generator Protection • Automatic Generator Starting
Marine Engine Systems: • Auxiliary Engine Monitoring • Engine Protection Systems • Safety Shutdown Applications
Offshore Installations: • Backup Power Systems • Emergency Equipment Control • Critical Utility Systems
Benefits
- Reliable automatic engine starting
- Enhanced emergency power availability
- Improved equipment protection
- Reduced operator intervention
- Automatic fault detection
- Engine safety monitoring
- Increased operational reliability
- Simple installation and operation
- Reduced maintenance costs
- Suitable for marine and offshore environments
