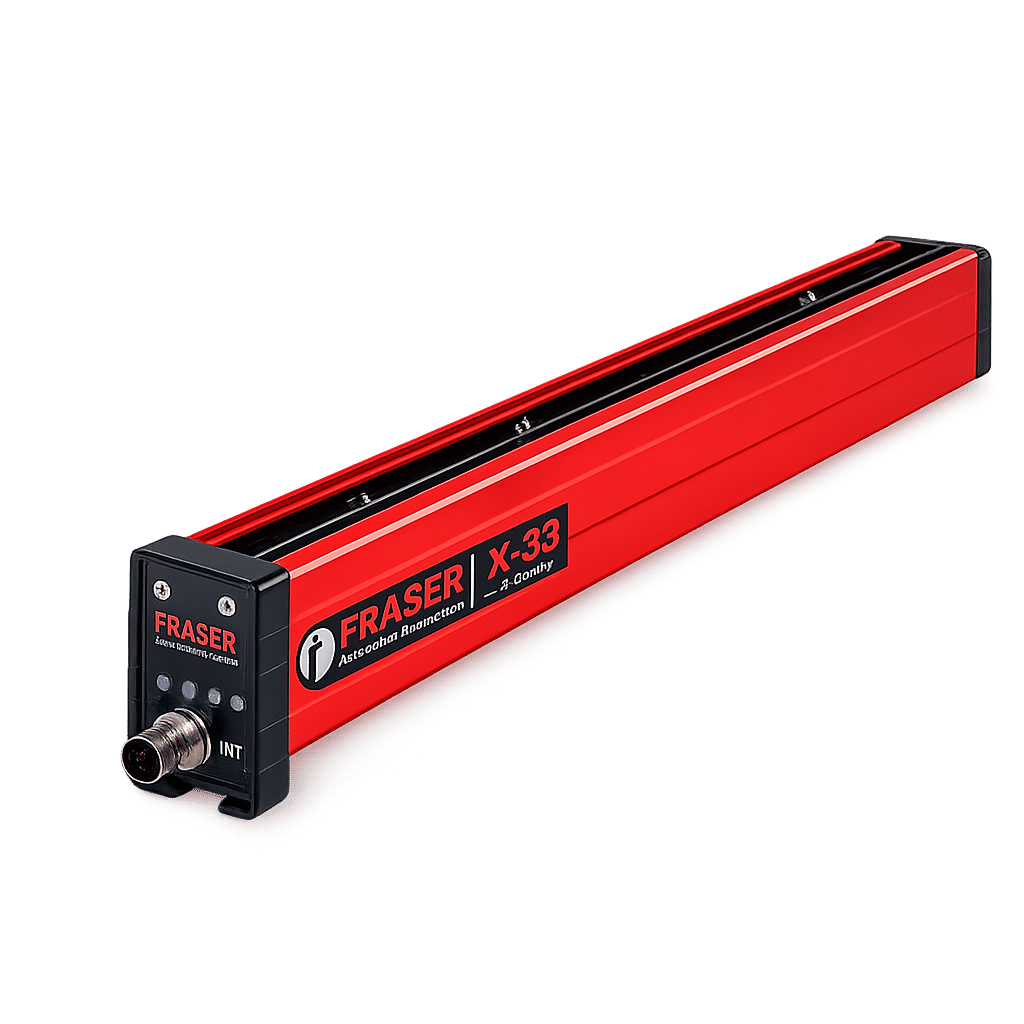

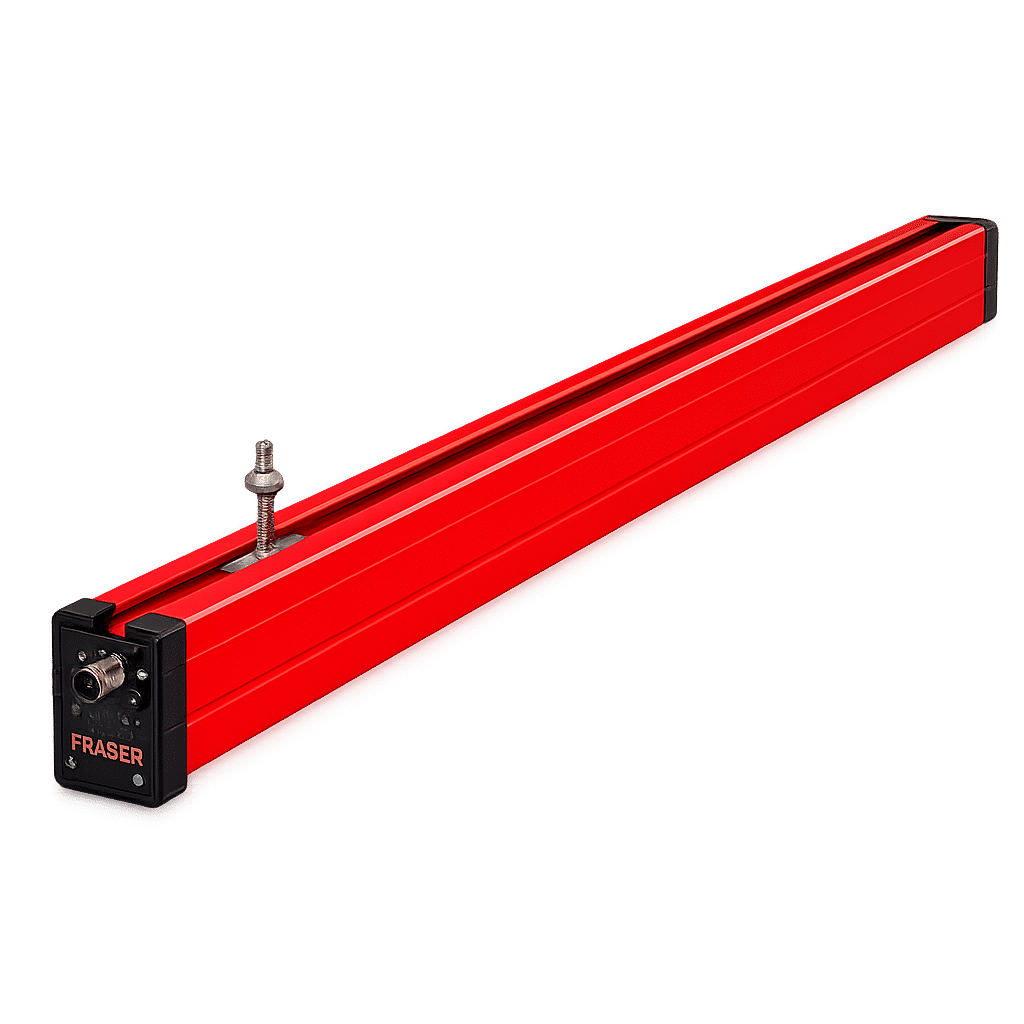

X-33 Intelligent Static Eliminator
The X-33 is a high-power 33 kV intelligent static eliminator designed for long-range and wide-area applications. It uses adaptive pulsed DC ionisation with field polarity sensing to optimise charge neutralisation performance in high-speed industrial processes such as film production and converting lines.
Specifications
| Parameter | Details |
|---|---|
| Operating distance | Long range (application dependent) |
| Output voltage | ±33 kV (integrated) |
| Construction | FR-ABS reinforced extrusion with epoxy resin encapsulation |
| Emitters | Tungsten, resistively coupled, replaceable |
| Available lengths | 600 mm to 6000 mm (standard increments from 750 mm) |
| Weight | 1.02 kg + 2.5 kg/m |
| Electrical input | 24 V DC (21–28 V), max 2.5 A |
| Connector | M12 5-pin |
| Environmental rating | 0–55 °C, 70 % RH non-condensing |
| Protection | IP64 |
| Certification | CE, CB |
Features
- High-power long-range static neutralisation (33 kV output)
- Adaptive pulsed DC ionisation with polarity sensing
- Optimised for winding, unwinding, extrusion, and lamination lines
- LED status indication with cleaning and fault monitoring
- Remote monitoring outputs compatible with PLC systems
- Remote on/off and standby control
- Full-length active ionisation (no dead zones)
- Designed for high-speed industrial environments
