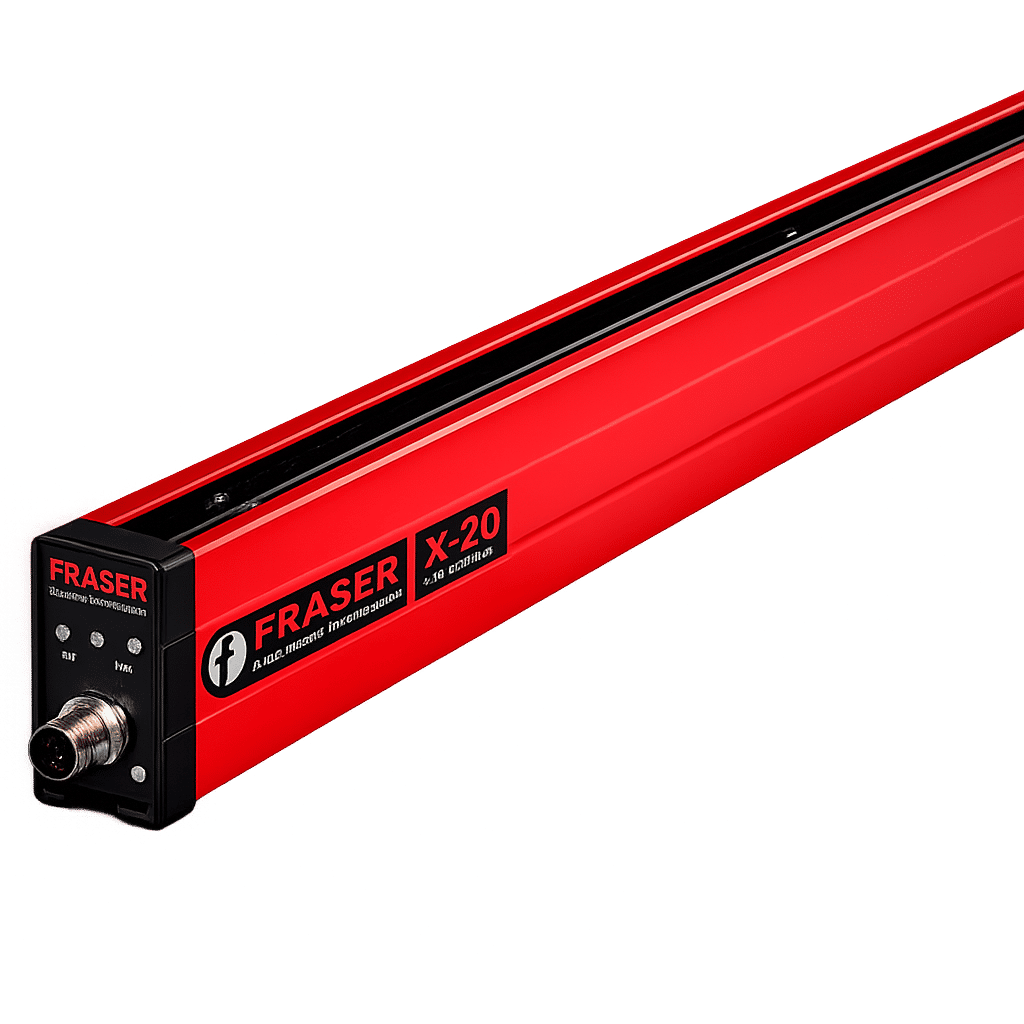

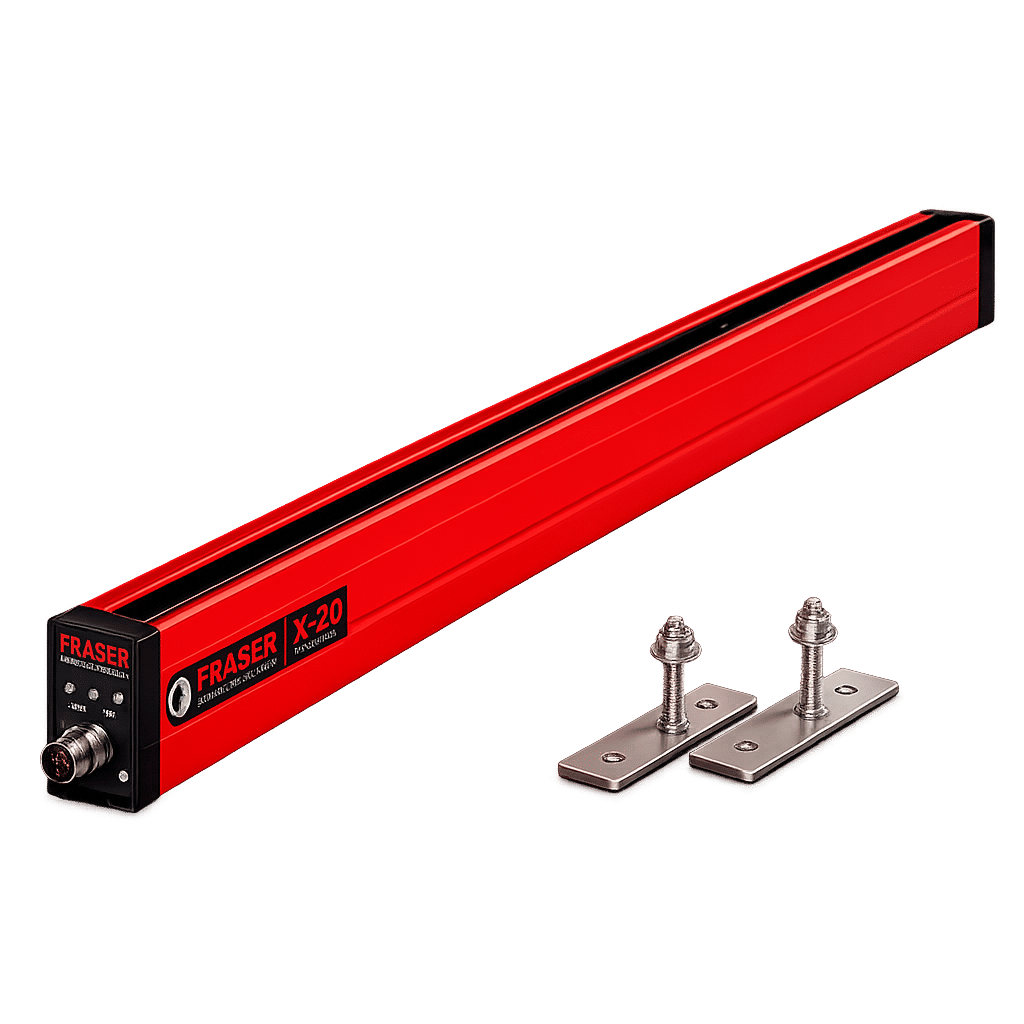

X-20 Intelligent Static Eliminator

Name: X-20 Intelligent Static Eliminator
Brand: Fraser Anti-Static Techniques
Availability: InStock

X-20 Intelligent Static Eliminator is a high-performance pulsed DC ionisation system designed for long-distance static neutralisation in industrial production environments. It uses adaptive intelligence to monitor electrostatic charge levels and deliver controlled ion output for efficient neutralisation at operating distances up to 800 mm. The system is designed for continuous use in high-speed manufacturing processes requiring stable static control.

Static Neutralization and Generations

Static Elimnation

EquipmentStatic Eliminator Bar

ManufacturerX-SERIES (Static Control Systems)

Type / Model / Part noX-20

Download PDF

Technical specification

Parameter	Specification
Operating Voltage	24 V DC (21–28 V)
Maximum Current	2.0 A
Output Voltage 20	kV integrated ionising supply
Ionisation Type	Pulsed DC adaptive ion control system
Effective Range	150 – 800 mm
Control System	X-SERIES intelligent charge sensing
Operating Modes	3 automatic modes + 3 manual modes
Electrical Connection	M12 5-pin connector
Housing Material	FR-ABS industrial-grade extrusion with epoxy encapsulation
Emitter Type	Replaceable tungsten emitters
Protection Rating	IP67
Operating Temperature	0 – 55 °C
Humidity	Up to 70% RH non-condensing
Dimensions	28 mm x 66.5 mm (W x H)
Length Options	450 mm to 4950 mm (150 mm increments)
Weight	2.6 kg/m
Status Indication	Bi-colour LED (HV OK, Attention, Clean Me)
Remote Outputs	HV OK and Attention (IEC 61131-2 Type 1/2/3 compatible)
Control Features	Remote ON/OFF and standby mode
Coverage	100% effective length coverage
Power Supply Option	100–250 V AC to 24 V DC (NEOS-PSU)
Certifications	CE, CB
