ENAR
Industrial
X-12F Intelligent Static Eliminator
The X-12F Intelligent Static Eliminator is a 24 V DC short-range ionising bar designed for high-speed industrial static neutralisation. It uses X-SERIES adaptive intelligence to automatically adjust ion output based on measured static levels, providing fast and efficient charge decay in packaging, plastics, converting, and textile applications.
EquipmentIntelligent Static Eliminator Bar
ManufacturerFraser Anti-Static Techniques
Type / Model / Part no X-12F
Technical specification
| Parameter | Specification |
|---|---|
| Supply Voltage | 24 V DC (21–28 V) |
| Ionising Voltage | 12 kV (integrated) |
| Operating Distance | Up to 150 mm |
| Control System | X-SERIES adaptive intelligence (auto + manual modes) |
| Output Signals | HV OK / Attention (PLC compatible, IEC 61131-2 Type 1/2/3) |
| Status Indication | Bi-colour LED + “Clean Me” indicator |
| Construction | Reinforced FR-ABS with epoxy encapsulation |
| Emitter Type | Tungsten, shockless |
| Protection Rating | IP67 |
| Electrical Connector | M12 5-pin |
| Current Consumption | Max 1.5 A |
| Operating Temperature | 0 – 55 °C |
| Humidity | Up to 70% RH (non-condensing) |
| Weight | 1.5 kg/m |
| Certification | CE, CB |
Features
- Short-range high-speed static neutralisation
- Intelligent adaptive ion control (X-SERIES system)
- Fully encapsulated industrial design for durability
- Dual local and remote monitoring outputs
- Designed for continuous industrial operation
- Modular lengths for application-specific installation
Related products
View Details

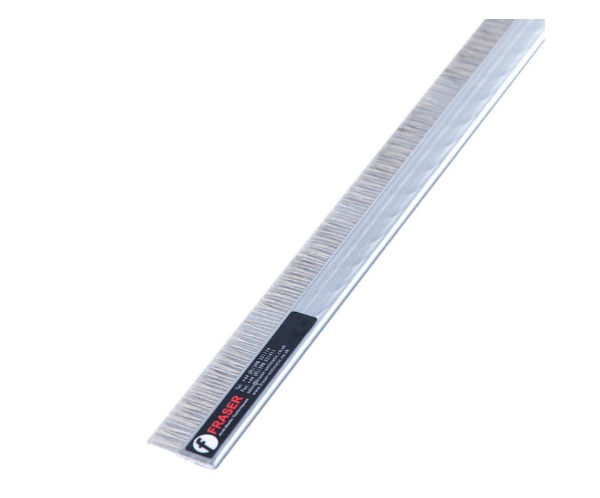

660 Static Discharger
Al Ghwasa
View Details

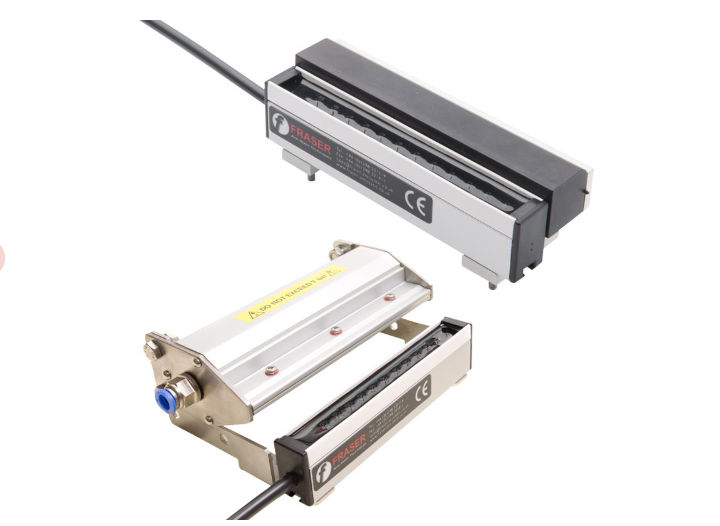

5000 / 5100 Ionised Air Knives
Al Ghwasa
View Details

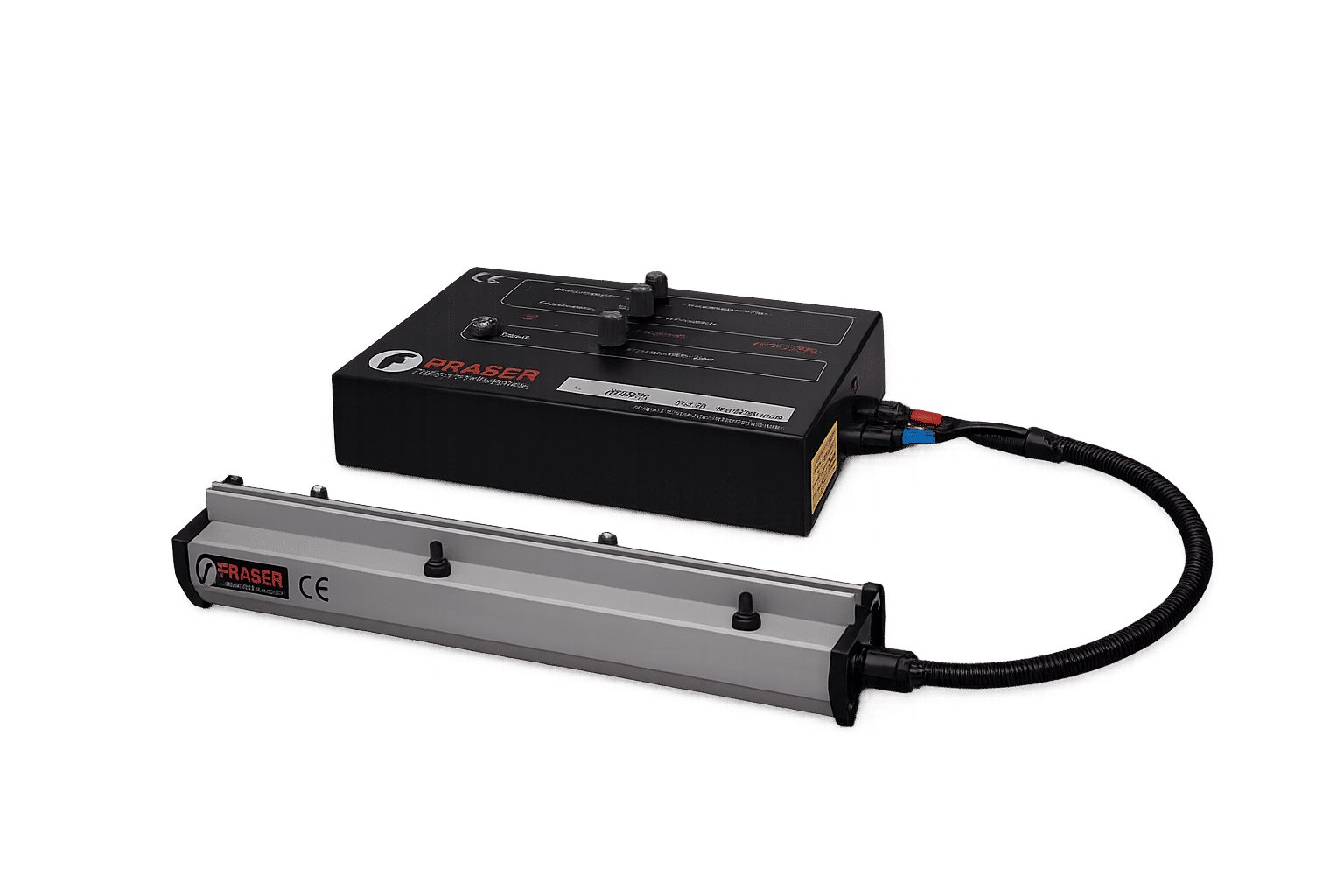

3850 Ionstorm Static Eliminator
Al Ghwasa
View Details

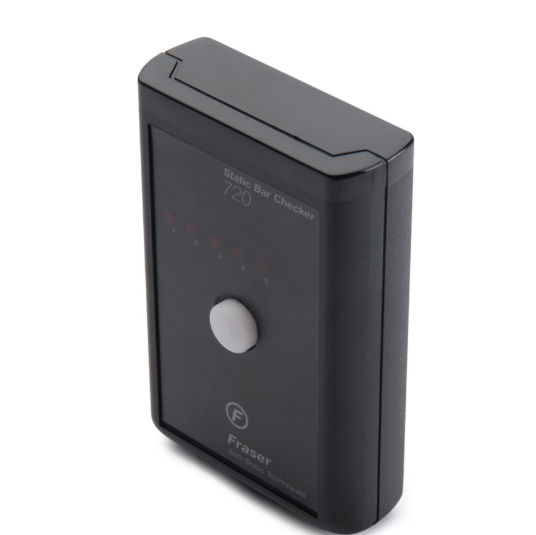

720 AC Static Bar Checker
