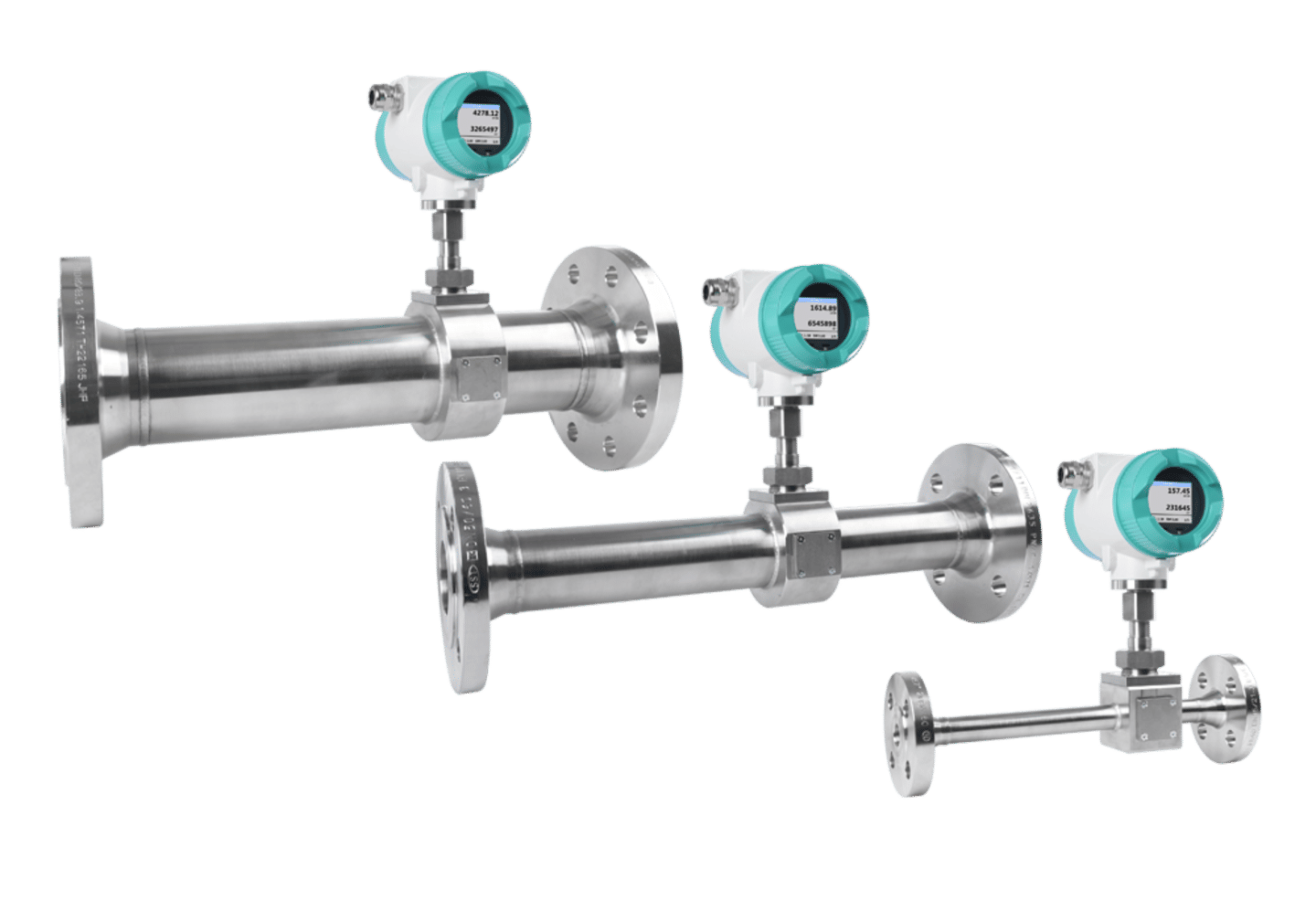

VU 570 - Vortex ultrasonic sensor for flow measurement
Vortex ultrasonic sensor designed for precise flow measurement of compressed air, technical gases, and mixed gases with integrated pressure and temperature measurement for standard volume flow calculation.
EquipmentFlow Sensor
Type / Model / Part NoVU 570
Technical specification
| Parameter | Value |
|---|---|
| Measurement Range (Velocity) | 0.3 m/s to 30 m/s |
| Pressure Range | Up to 40 bar |
| Temperature Range | -40°C to 100°C |
| Pipe Size Range | DN 15 to DN 80 |
| Accuracy | 1% deviation of measured value |
| Protection Class | IP 67 |
| Interface | 4...20 mA, pulse, Modbus RTU (RS 485) |
| Optional Interfaces | Modbus TCP (Ethernet), PoE, M-Bus |
Applications
- Measurement of compressed air
- Technical gas measurement
- Mixed gas measurement
- CO₂ measurement
- LPG measurement
- Propane measurement
- Krypton measurement
- Compressed air monitoring in PET bottle production
Features
- Precise measurement starting at 0.3 m/s
- Suitable for unknown or changing gas compositions
- Measures operating volume flow and mass flow
- Integrated pressure and temperature measurement for standard volume flow
- Robust aluminium housing for industrial applications
- Suitable for rapidly changing temperature and pressure conditions
- Large measuring span
- No moving parts
- Low maintenance design
- Negligible pressure loss due to minimal flow obstruction
- Integrated display for measured values
- Settings adjustable via display buttons
- Main counter reset via display
