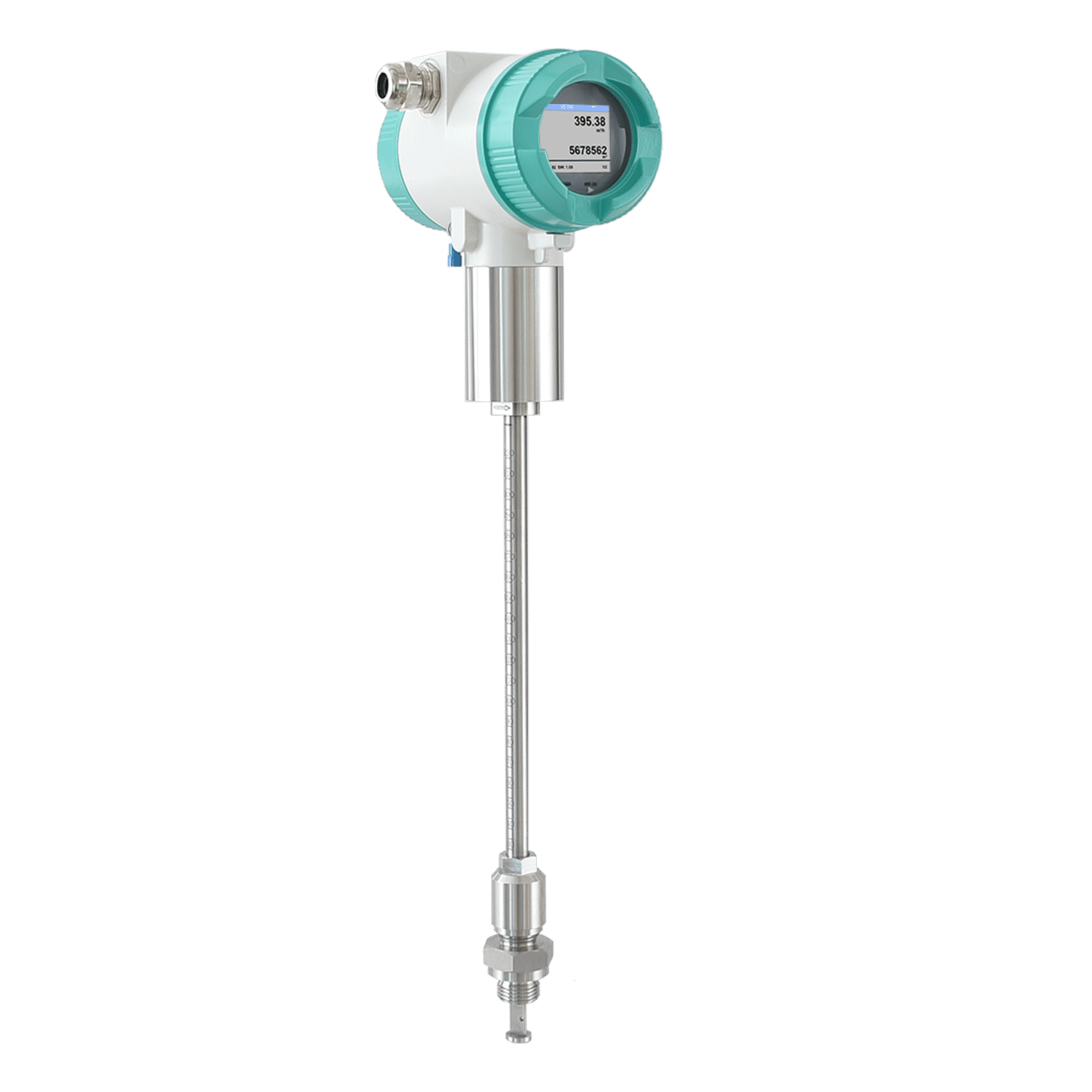

VD 550 - Robust Flow sensor for Wet compressed air / gases
Flow sensor designed for measurement of wet compressed air and gases with high sensitivity in the lower measuring range, suitable for compressor capacity measurement and compressed air system efficiency analysis.
Specifications
-Equipment: Flow Sensor -Type / Model / Part No: VD 550
Technical specification
| Parameter | Value |
|---|---|
| Low Flow Sensitivity | From 2 m/s |
| Medium Temperature Range | Up to 180°C |
| Pipe Size Range | DN 20 to DN 600 |
| Protection Class | IP 67 |
| Housing Material | Impact-resistant die-cast aluminium |
Applications
- Measurement of compressor capacity
- Compressed air audits
- Efficiency measurement of compressed air systems
- Wet compressed air measurement
Features
- Unrivalled sensitivity in lower measuring range
- Covers full operating range of speed-controlled compressors
- Suitable for extremely high flow rates
- Flow, total consumption, temperature, and pressure measurement
- Installation under pressure via 1/2″ ball valve
- Robust design for outdoor use
- No moving parts
- High temperature measurement capability up to 180°C
