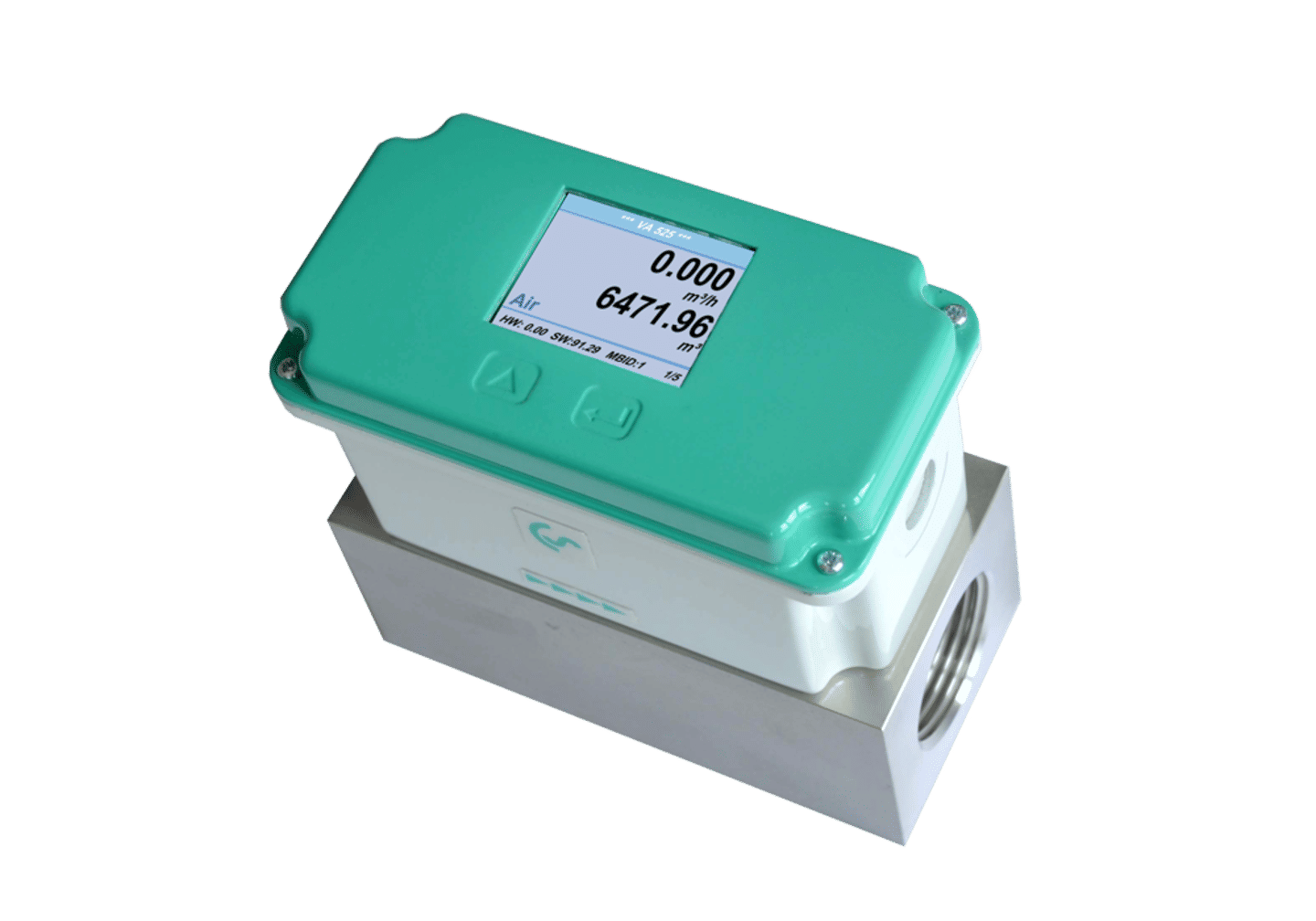

VA 525 - Compact Inline flow meter for compressed air and nitrogen
Compact inline flow meter designed for energy monitoring systems to measure compressed air and nitrogen consumption and analyze leakage flows in industrial applications.
EquipmentFlow Meter
Type / Model / Part NoVA 525
Technical specification
| Parameter | Value |
|---|---|
| Measurement Principle | Thermal mass flow |
| Accuracy | ± 1.5% or ± 1% of measured value ± 0.3% of final value |
| Pressure Range | Up to 16 bar |
| Temperature Range | Up to 60°C |
| Pipe Size Range | 1/4" to 2" |
| Interface | 4...20 mA, pulse, Modbus RTU (RS 485) |
| Optional Interfaces | Modbus TCP (Ethernet), PoE, M-Bus |
| Gas Velocity Range | Up to 224 Nm/s |
Applications
- Monitoring compressed air consumption in energy monitoring systems
- Monitoring nitrogen consumption
- Consumption monitoring of individual machines
- Integration into energy monitoring networks
- Leakage flow analysis in compressed air systems
Features
- Compact design for limited installation space
- Integrated flow straightener
- No inlet and outlet sections required
- High accuracy at small and large flow rates
- Optional built-in pressure sensor
- Direct standard volume flow output without additional pressure or temperature measurement
- No moving parts Low maintenance design
- Integrated display for measured values
- Main counter reset via display
- Settings adjustable via display keys
