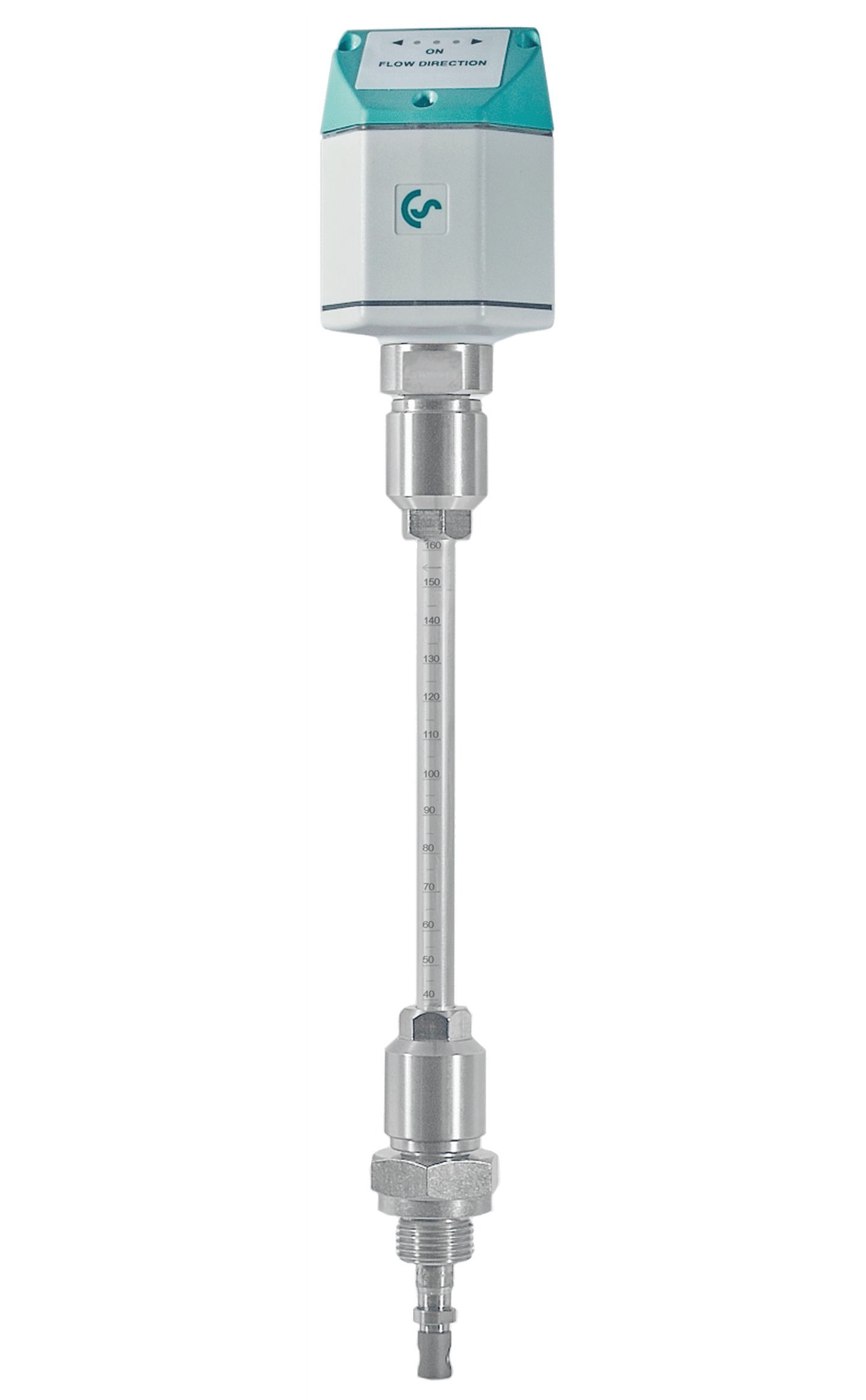

VA 500 - Flow meter for compressed air and gase
Flow meter for compressed air and gases designed for energy monitoring, CO₂ reduction, and leakage flow analysis in compressed air systems, suitable for mobile and stationary measurements.
Equipment: Flow Meter
Type / Model / Part No: VA 500
Technical specification
| Parameter | Value |
|---|---|
| Measurement Principle | Thermal mass flow |
| Accuracy | ± 1.5% or ± 1% of measured value ± 0.3% of final value |
| Pressure Range | Up to 50 bar |
| Temperature Range | Up to 110°C |
| Pipe Size Range | 1/2" up to 40" (larger on request) |
| Interface | 4...20 mA, pulse, Modbus RTU (RS 485) |
| Protection Class | IP65 |
| Gas Velocity Range | Up to 224 Nm/s |
Applications
- Monitoring compressed air consumption
- Analysis of leakage flows in compressed air systems
- Energy cost reduction in compressed air systems
- CO₂ emission reduction in compressed air systems
- Measurement of compressed air and non-corrosive gases (nitrogen, oxygen, argon, helium)
- Mobile flow measurement applications
Features
- Direct mass flow measurement with standard volume flow output
- Pressure and temperature compensated via thermal mass flow principle
- Highly accurate at low and high flow rates
- Quick and easy installation via ½" ball valve
- No moving parts
- Low maintenance design
- Extremely low pressure drop
- Integrated display for measured values
- Settings adjustable via display
- Main counter reset via display
- Optional bidirectional measurement
- Optional interfaces: Modbus TCP (Ethernet), PoE, M-Bus
- Easy installation under pressure
