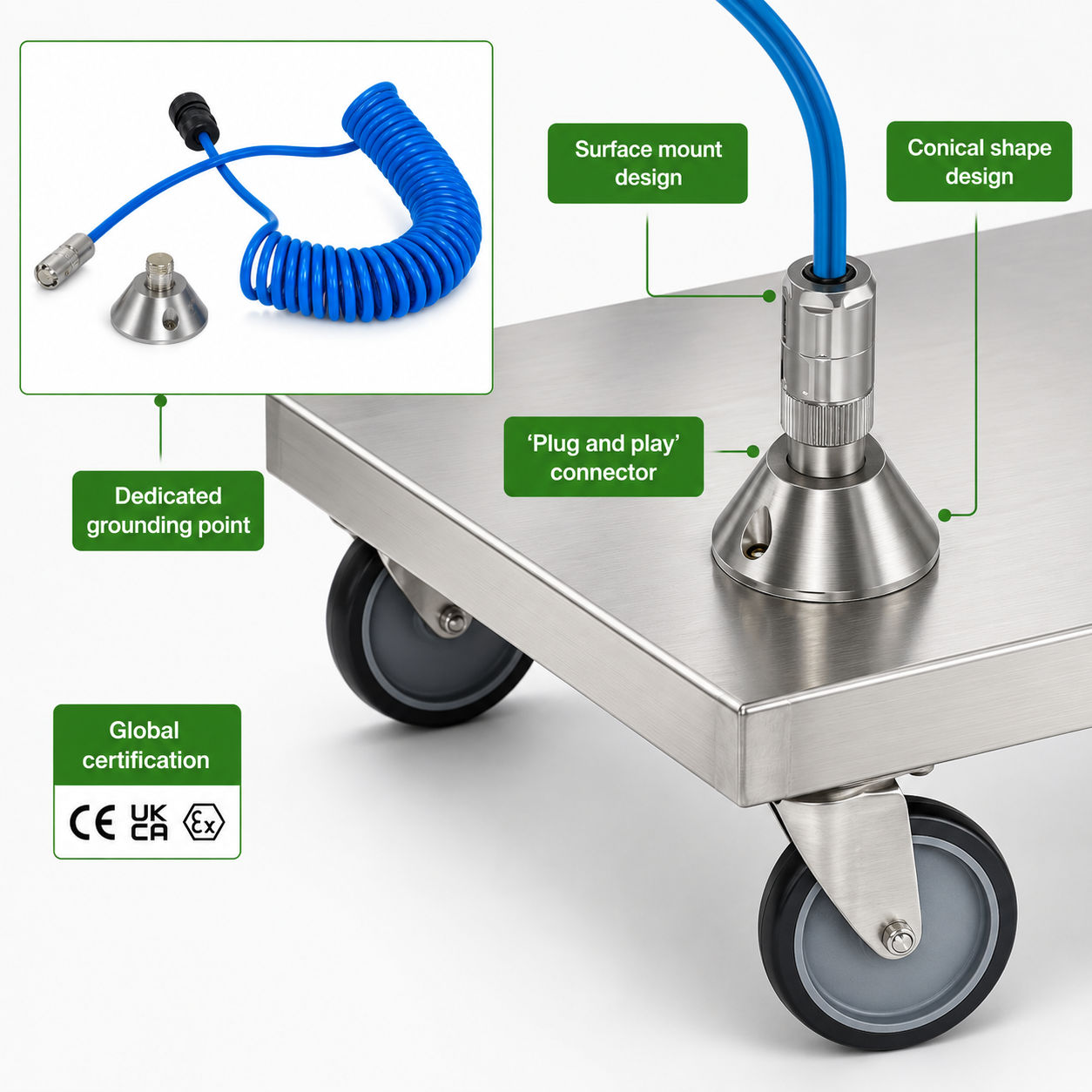

Surface Mount Grounding Connector (SMC)
The Surface Mount Grounding Connector (SMC) is a dual core surface mount connector designed for use with static ground monitoring systems such as the Bond-Rite® and Earth-Rite® range. These systems combine interlock control and visual indication to verify ground connection points and provide protection against electrostatic ignition risks.
Description
The instrument is designed to measure the current dew point and graphically display the dew point curve and the switching behaviour of the dryer over an extended period. It can store up to 100 million measured values together with the date and measurement location name. Measurement data can be transferred to a PC via a USB stick and analysed using CS Basic software, enabling measurement data and service reports to be created.
Technical specification
| Parameter | Value |
|---|---|
| Product Type | Dual core surface mount connector |
| Product Name | Surface Mount Grounding Connector (SMC) |
| Compatible Systems | All Newson Gale dual core systems |
| Intended Function | Ground monitoring capability |
| Connector Type | Plug and play connector |
| Design Feature | Conical shape |
| Certifications / Approvals | IECEx approved, UKCA approved and certified |
Functional Features
- Combines with static ground monitoring systems that provide interlock control and visual indication to verify ground connection points.
- Provides a dedicated grounding point for mobile process equipment.
- Offers positive contact with equipment to be grounded.
- Interfaces with all Newson Gale dual core systems.
- Provides ground monitoring capability for mobile processes and equipment where traditional grounding clamps cannot be used.
- Conical shape helps reduce powder deposit build-up over time.
- Conical design aids clean-down operations.
- Capable of dissipating static charges from potentially charged equipment.
- Approved and certified to IECEx and UKCA requirements.
Typical Applications
- Grounding mobile process equipment.
- Ground monitoring of mobile processes and equipment where traditional grounding clamps cannot be used.
