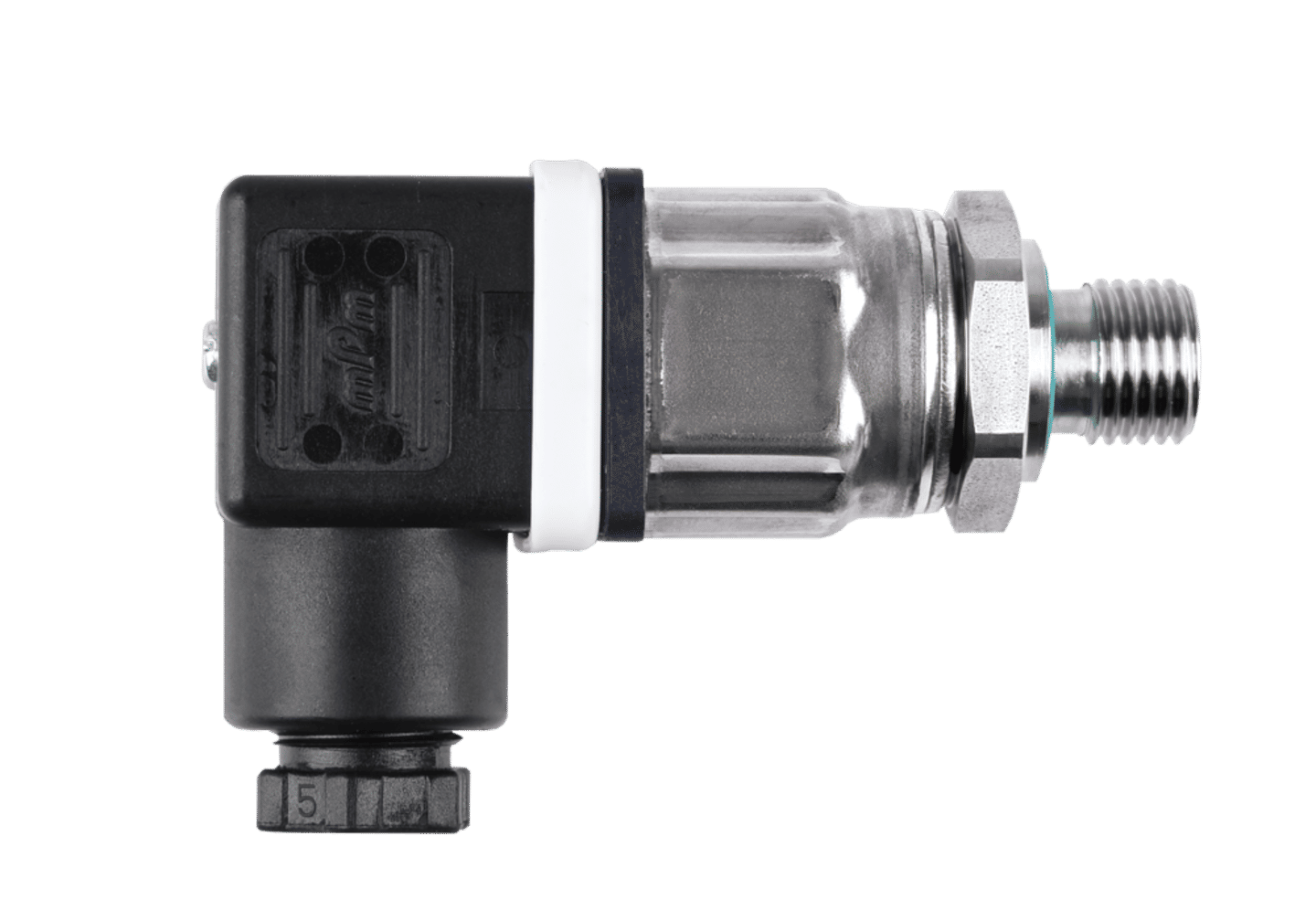

Standard pressure sensor CS 10 and CS 16
Standard pressure sensors for measuring pressure ranges up to 10 bar and 16 bar with 4...20 mA output signal and 2-wire configuration.
EquipmentPressure Sensor
Type / Model / Part NoCS 10 / CS 16
Technical specification
| Parameter | Value |
|---|---|
| Pressure Range (CS 10) | 0...10 bar |
| Pressure Range (CS 16) | 0...16 bar |
| Accuracy | 1% of full scale |
| Optional Accuracy | 0.5% of full scale |
| Output Signal | 4...20 mA |
| Wiring | 2-wire |
| Power Supply | 8...30 VDC |
Applications
- Industrial pressure measurement
- Pressure monitoring systems
- Process control applications
Features
- Standard pressure measurement sensors
- Available with optional higher accuracy version
- Suitable for industrial applications
- 2-wire output configuration
