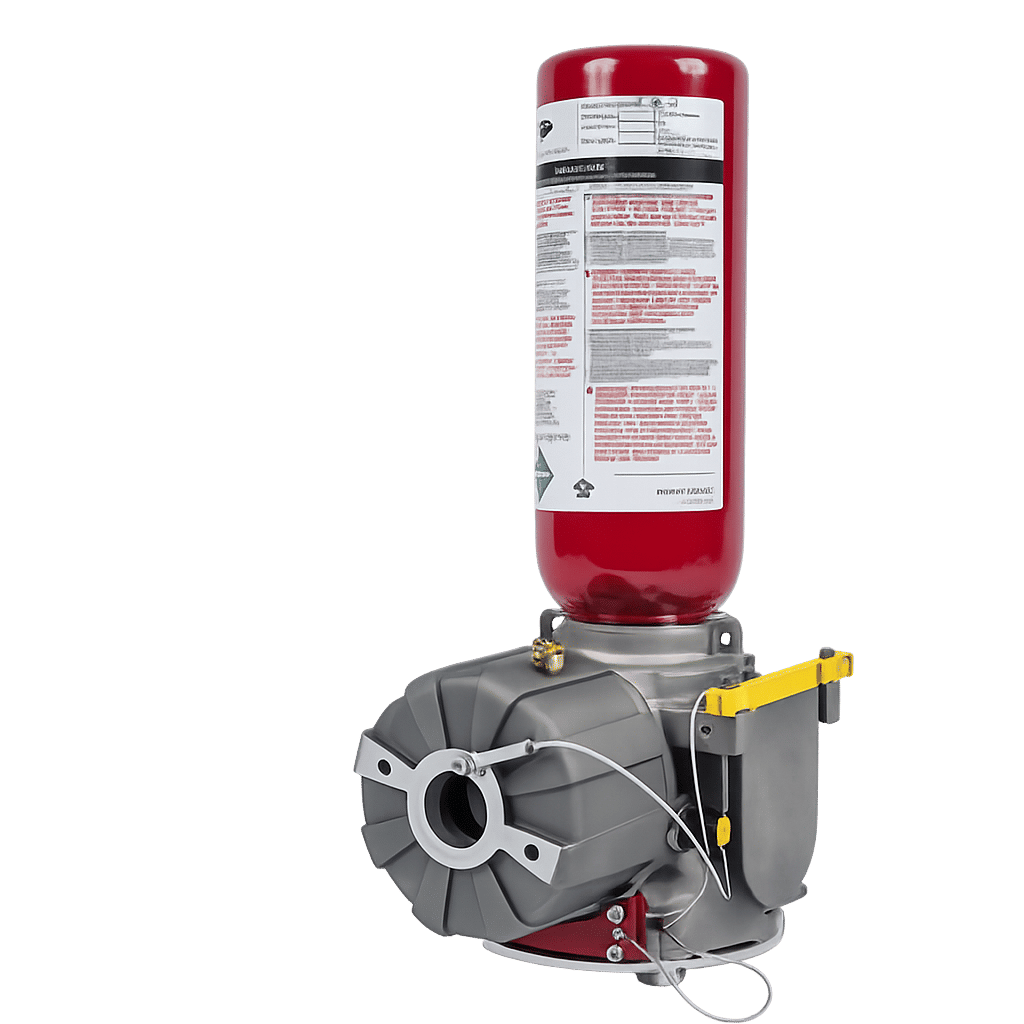

PistonFire II
The IEP Technologies PistonFire II Suppressor is a high-rate discharge suppressor designed for explosion suppression and flame propagation mitigation in industrial process equipment and interconnected duct systems. The suppressor rapidly discharges suppressant into protected areas within milliseconds after receiving an actuation signal from the explosion protection control system.
Product description
The unit consists of a pressurized suppressant storage cylinder and a corrosion-resistant valve body housed within a dust-ignition proof and weatherproof NEMA enclosure. The enclosure contains the actuating mechanism, pressure monitoring components, lockout/tagout provisions, and field wiring connections for continuous operational supervision and safe maintenance procedures.
The PistonFire II Suppressor is designed for hazardous industrial environments and supports fast installation, field reconditioning, and long-term operational reliability.
Technical specification
| Parameter | Value |
|---|---|
| Product | Type High-rate discharge suppressor |
| Application | Explosion suppression and isolation |
| Actuation | Type Non-explosive PF Initiator |
| Operating Function | Rapid suppressant discharge within milliseconds |
| Hazardous Area Design | Class II, Div. I / Class I, Div. II |
| Enclosure Type | Dust-ignition proof and weatherproof NEMA enclosure |
| Pressure Monitoring | Supervisory low pressure switch |
| OSHA Lockout/Tagout | Integrated supervisory provision |
| Approvals | ATEX and FM approved |
| Valve Body Material | Corrosion-resistant stainless steel and aluminum |
| Cylinder Material | Painted carbon steel |
| Operating Plate Material | Painted carbon steel |
| Shipping Condition | Fully pressurized (DOT approved) |
| Initiator Service Life | Up to 5 years |
Model Dimensions
| Model | A (in.) | B (in.) | C (in.) |
|---|---|---|---|
| PFII-1000 | 12.0 | 23.5 | 5.5 |
| PFII-2000 | 12.0 | 30.1 | 8.0 |
| PFII-3000 | 12.0 | 40.8 | 9.0 |
| Model | Range | Part Number |
|---|---|---|
| 32-500005-001 | PFII-1000 Suppressor, Class II, Div. I | 77 lbs |
| 32-500006-001 | PFII-2000 Suppressor, Class II, Div. I | 118 lbs |
| 32-500007-001 | PFII-3000 Suppressor, Class II, Div. I | 168 lbs |
| 32-500015-001 | PFII-1000 Suppressor, Class I, Div. II | 77 lbs |
| 32-500016-001 | PFII-2000 Suppressor, Class I, Div. II | 118 lbs |
| 32-500017-001 | PFII-3000 Suppressor, Class I, Div. II | 168 lbs |
| 06-237129-001 | PistonFire Lifting Strap | 2 lbs |
| 32-094053-020 | Reconditioning Kit with Pressure Switch (Class II, Div. I) | 5 lbs |
| 32-094053-023 | Reconditioning Kit with Pressure Switch (Class I, Div. II) | 5 lbs |
| 32-094053-022 | Depressurization Kit | 3 lbs |
| 32-193023-001 | Cable Kit (Class II, Div. I) | 2 lbs |
| 32-099932-030 | PistonFire II Initiator | <1 lb |
Typical Applications
- Process vessels
- Dust collection systems
- Interconnected ductwork
- Explosion suppression systems
- Industrial processing equipment
- Hazardous process environments
Features
- Rapid suppressant discharge within milliseconds
- Non-explosive actuation design
- Integrated OSHA lockout/tagout supervision
- Continuous nitrogen pressure monitoring
- Weatherproof and dust-ignition proof enclosure
- Corrosion-resistant valve body construction
- Field-rechargeable design for reduced downtime
- Long initiator service life
- Fully pressurized shipment for simplified installation
- Designed for hazardous industrial locations
- Compatible with IEP Technologies control panels and detectors
- ATEX and FM approved
