Permeater PD-1C
The Permeater Gas Generator is a high-precision calibration device that uses permeation tubes and diffusion tubes to produce accurate and stable calibration gas for gas detection and monitoring systems. By maintaining a constant temperature, the system ensures a consistent release rate of both permeating and evaporating gases. With a steady flow of dilution gas such as air or nitrogen, the Permeater provides a continuous and reliable source of calibration gas, making it ideal for gas detector calibration, industrial gas analysis, and environmental monitoring applications.
Specifications table
| Parameter | Value |
|---|---|
| Gas Generation Methods | Permeation tube & Diffusion tube |
| Dilution Gas Options | Nitrogen or Air |
| Flow Rate Range | 0.2 – 10 L/min |
| Flow Accuracy | ±13.2% (0.2–0.4 L/min), ±7% (0.4–1 L/min), ±3.7% (1–10 L/min) |
| Temperature Control Range | (Room Temp + 5°C) to 50°C ± 0.15°C |
| Tube Holder Capacity | Standard tubes: 10 pcs. / H-size: 5 pcs. Diffusion tubes: D-10/D-20/D-30 – 1 pc; Multi-type – 4 pcs |
| Power Supply | 100–240 V AC, 50/60 Hz; Power Consumption: 160 W |
| Dimensions (W×H×D) | 250 × 340 × 315 mm (approx.) |
| Weight | ~14 kg (without water) |
| Accessories Included | Calibration tubing, dilution line, power cord, adapters, stopper, tube holder, funnel, spanner |
| Compliance Standards | EN61010-1, EN61326-1 (industrial), EN IEC63000 (RoHS) |
Filling and setup
A diffusion tube with a fixed inner diameter is filled with a liquid substance (usually an organic solvent) using a syringe and maintained at a constant temperature.
Controlled diffusion
At the set temperature, the liquid evaporates and diffuses at a constant rate, determined by the tube’s dimensions.
Continuous gas generation
A steady flow of dilution gas (like air or nitrogen) passes through the tube, mixing with the evaporated substance to continuously generate a low, stable concentration of calibration gas.
Find the Right Tube
Search By
| Chemical | Range | Part No. | Qty/Box | Type | Actions | |
|---|---|---|---|---|---|---|
| Acetaldehyde | 5-750 | 92 | 10 | Short-term measurement | Inquire | Download |
| Acetaldehyde | 2.5-100 | 92M | 10 | Short-term measurement | Inquire | Download |
| Acetaldehyde | 1-20 | 92L | 10 | Short-term measurement | Inquire | Download |
| Acetaldehyde | 0.3-30 | 92LA | 10 | Short-term measurement | Inquire | Download |
| Acetone | 4-1200 | 151D | 10 | Long-term measurement | Inquire | Download |
| Methyl ethyl ketone | 1.2-360 | 152D | 10 | Long-term measurement | Inquire | Download |
| Formaldehyde | 0.1-20 | 91D | 10 | Long-term measurement | Inquire | Download |
| Acetic acid | 1-100 | 81 | 10 | Short-term measurement | Inquire | Download |
| Acetic acid | 0.125-23.0 | 81L | 10 | Short-term measurement | Inquire | Download |
| Acetic acid | 0.5-100 | 81D | 10 | Long-term measurement | Inquire | Download |
Related products

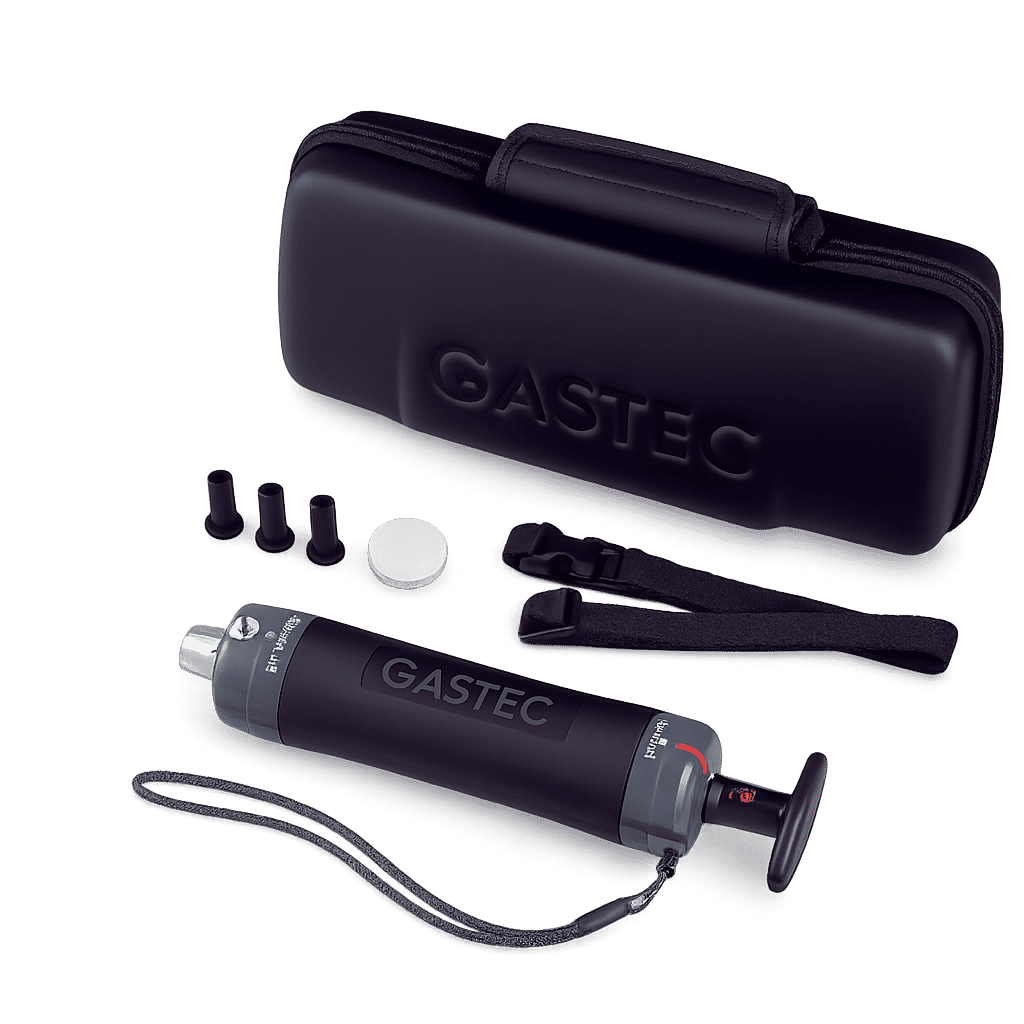

Gas Sampling Pump GV100S/GV100LS/GV110S.
Al Ghwasa

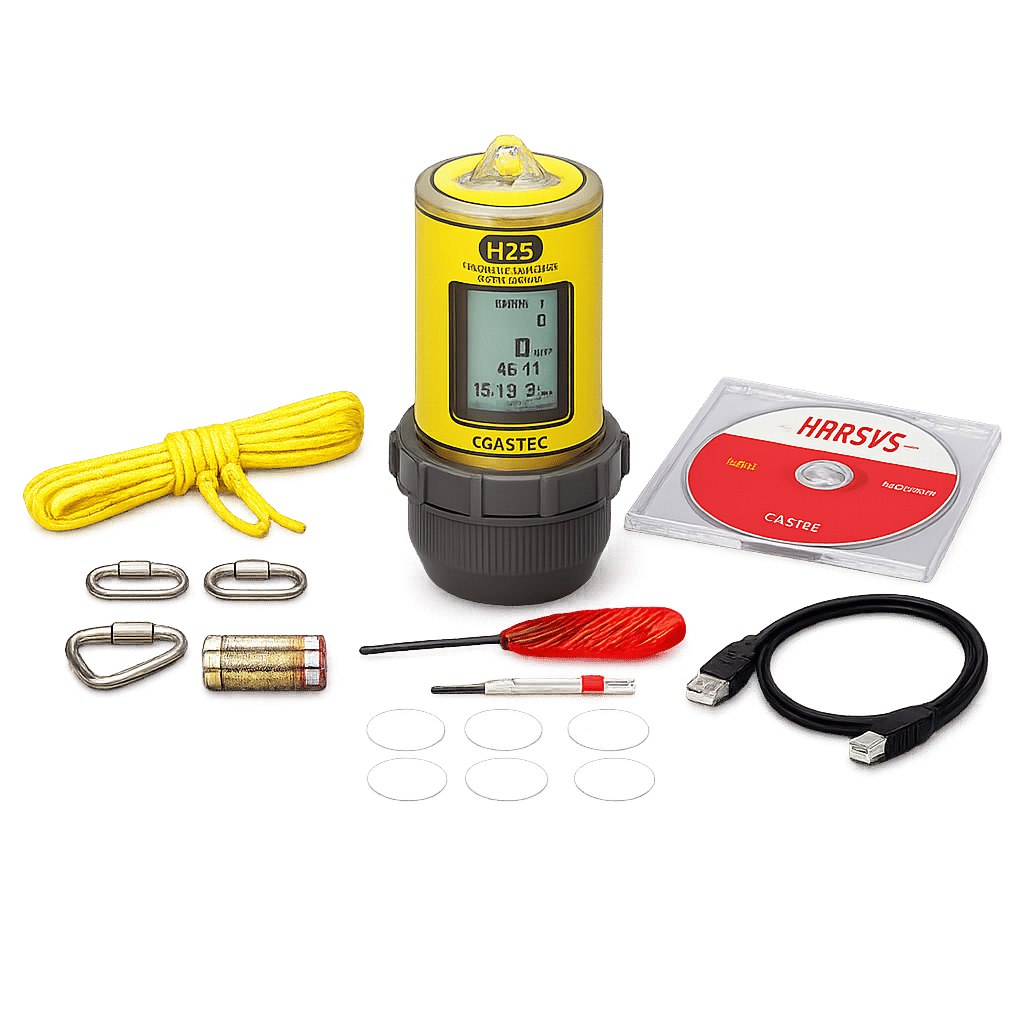

H2S Data Logger
Al Ghwasa

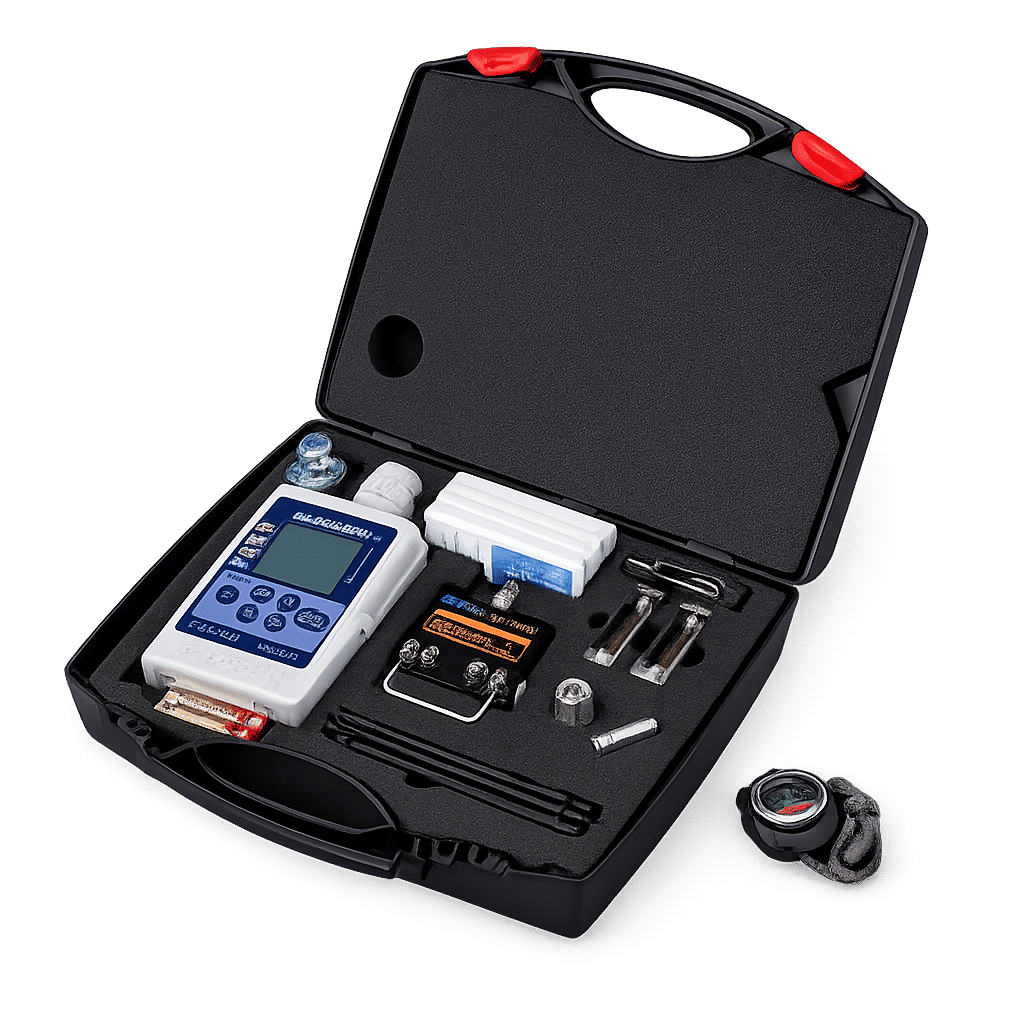

GASTEC Compressed Breathing Air Measurement Kit CG-1
Al Ghwasa

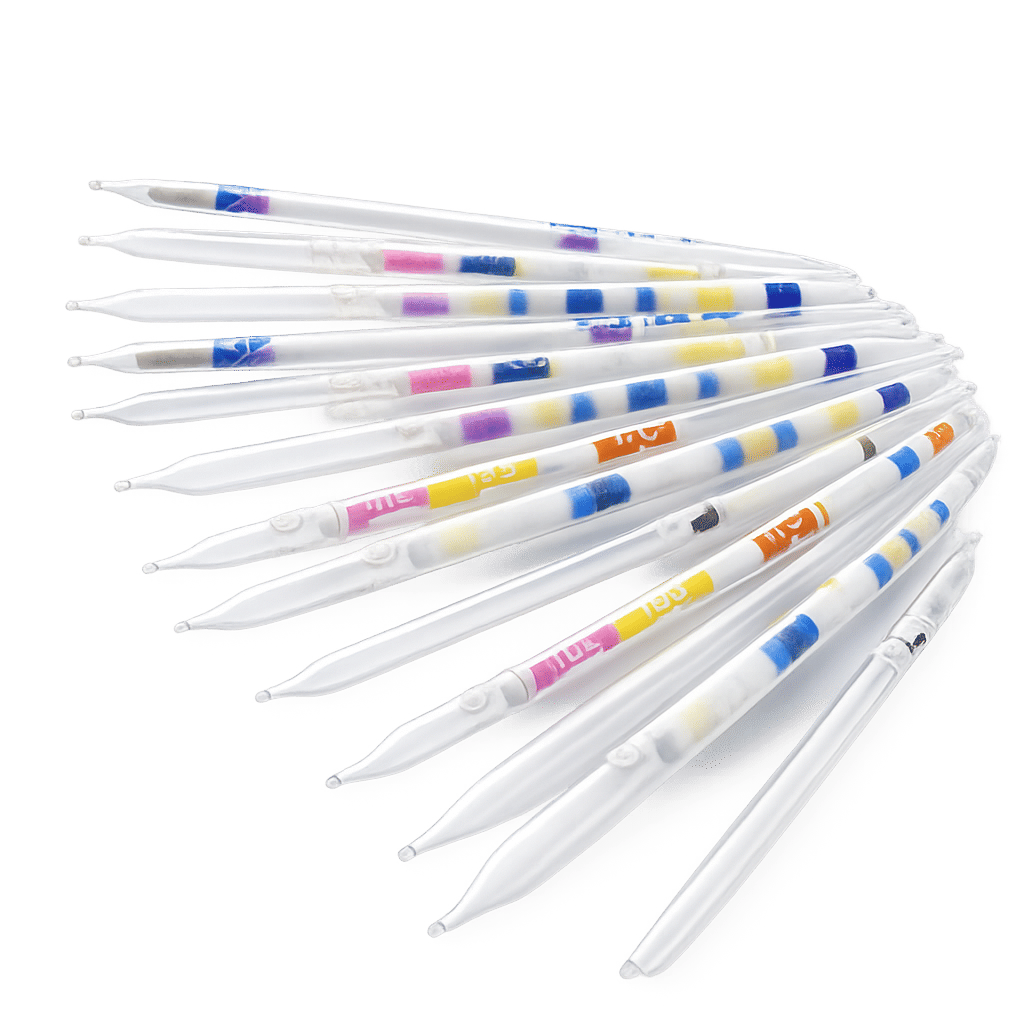

Polytec Tubes
