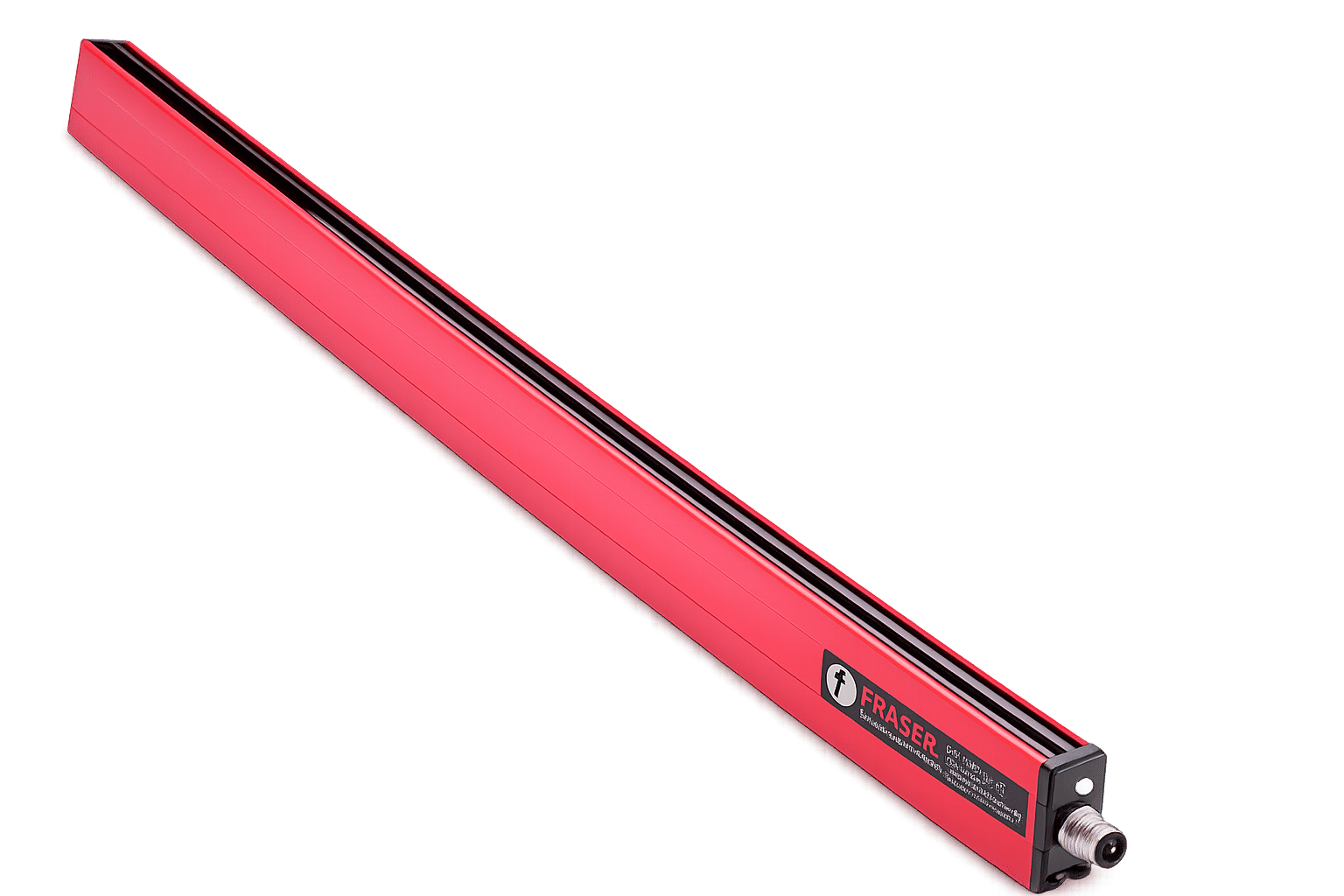

NEOS 12L Intelligent Static Eliminator

Name: NEOS 12L Intelligent Static Eliminator
Brand: Fraser Anti-Static Techniques
Availability: InStock

Static Eliminator Bar NEOS 12L is an intelligent 24 V DC ionisation system designed to neutralise static charge using adaptive ion output control. It delivers 12 kV ionising power for long-range static elimination up to 600 mm. The system continuously monitors electrostatic conditions and adjusts ion emission for efficient charge neutralisation in industrial applications requiring stable static control.

Static Neutralization and Generations

Static Elimnation

EquipmentStatic Eliminator Bar

Manufacturer NEOS (Static Control Systems)

Type / Model / Part noNEOS 12L

Download PDF

Technical specification

Parameter	Specification
Operating Voltage	24 V DC (21–28 V)
Power Consumption	Max 1.5 A
Output Voltage	12 kV integrated ionising supply
Ionisation Type	Pulsed DC, intelligent adaptive control
Effective Range	Up to 600 mm
Control System	NEOS intelligent charge sensing (automatic + manual modes)
Operating Modes	2 automatic modes + 3 manual modes
Electrical Connector	M12 5-pin
Housing Material	FR-ABS industrial-grade extrusion with epoxy encapsulation
Emitter Type	Tungsten, shockless design
Protection Rating	IP67
Operating Temperature	0 – 55 °C
Humidity Rating	Up to 70% RH non-condensing
Dimensions	25 mm x 45 mm (W x H)
Length Options	360 mm to 4920 mm (120 mm increments)
Weight	1.5 kg/m
Status Indication	Bi-colour LED (HV OK, Attention, Clean Me)
Remote Signals	HV OK and Attention outputs (IEC 61131-2 compatible)
Monitoring Interface	PLC-compatible outputs for lamps/relays
Control Features	External ON/OFF and standby mode
Installation Coverage	100% effective length coverage
Certifications	CE, CB, UL
Power Supply Option	NEOS-PSU (100–250 V AC to 24 V DC)
