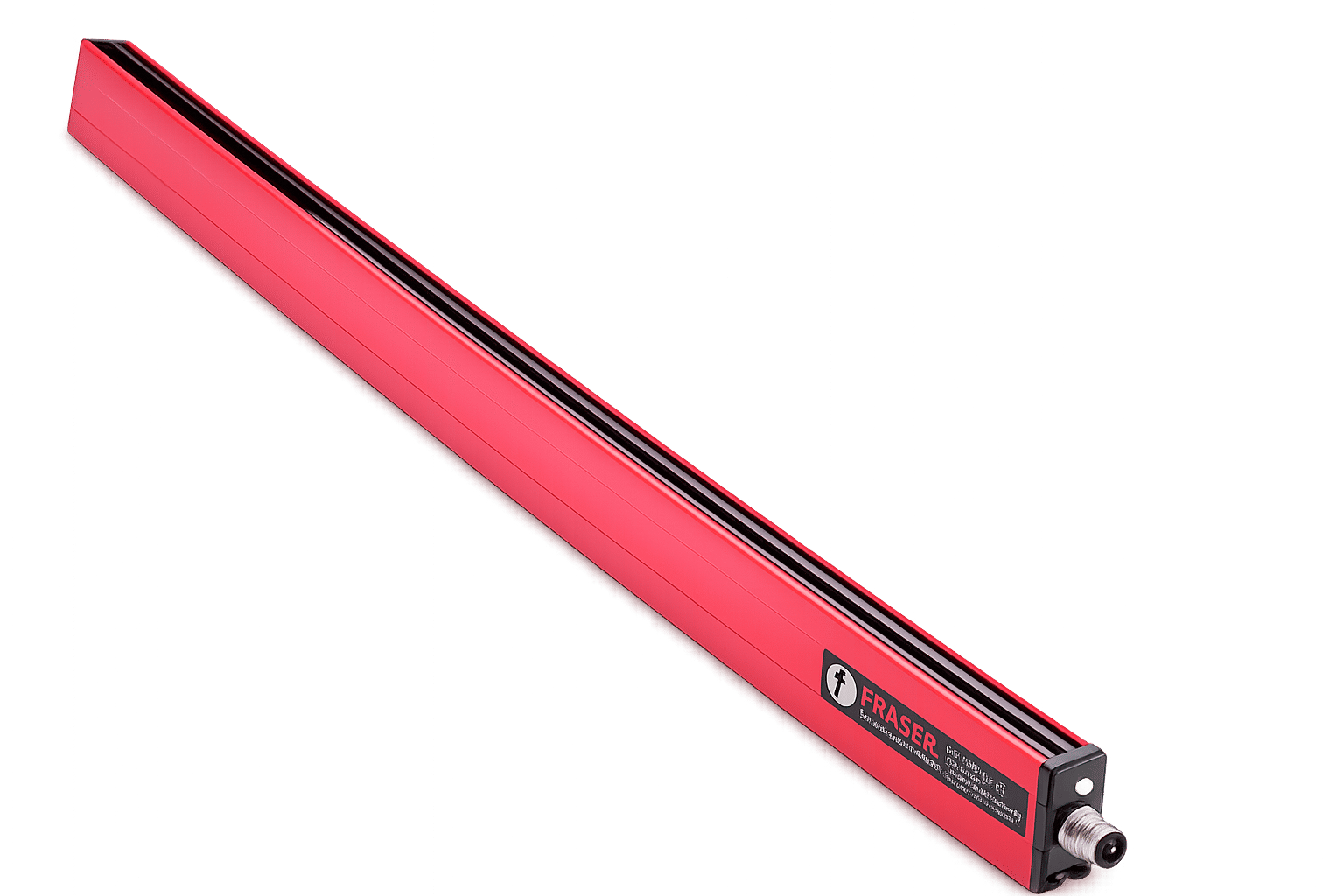

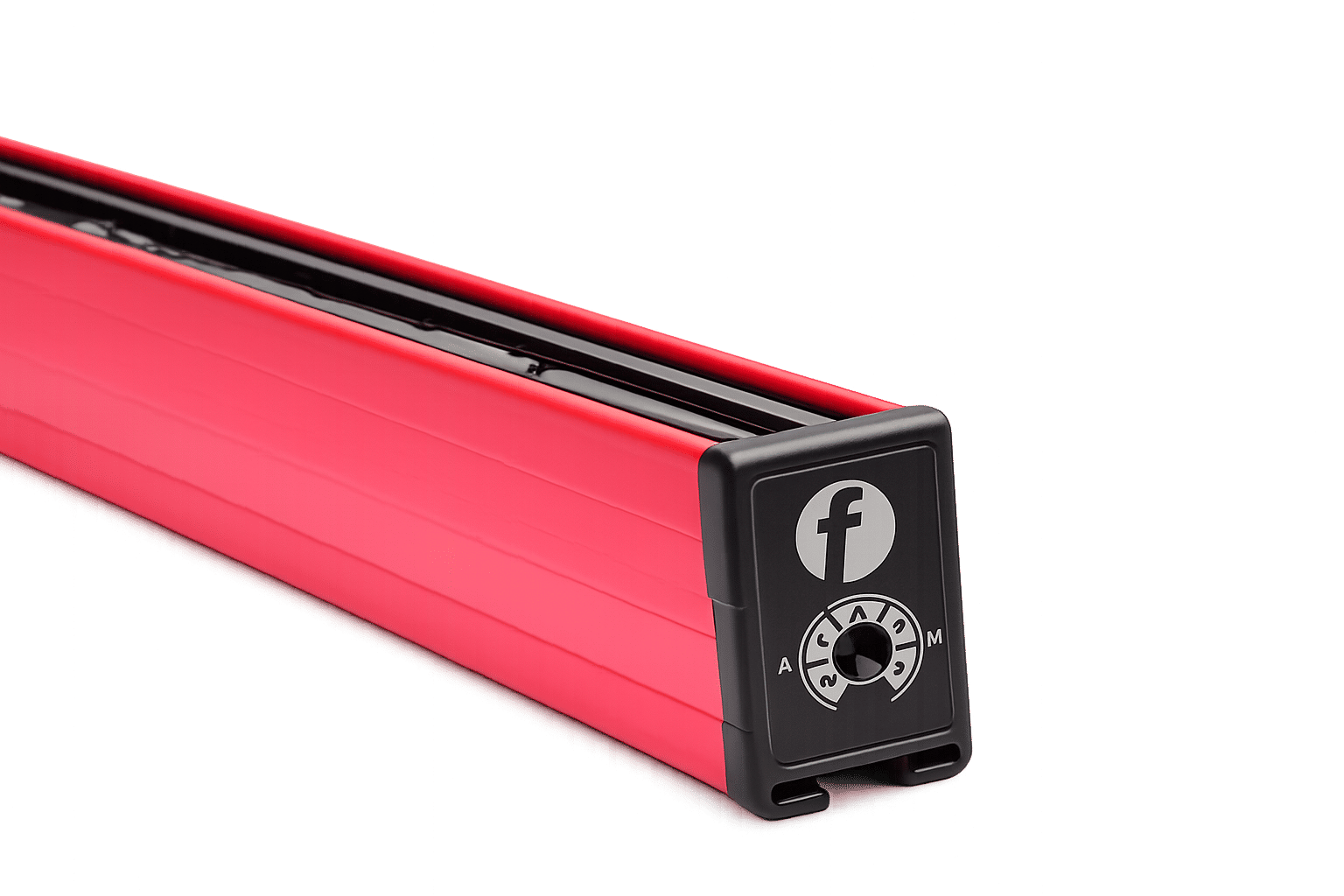

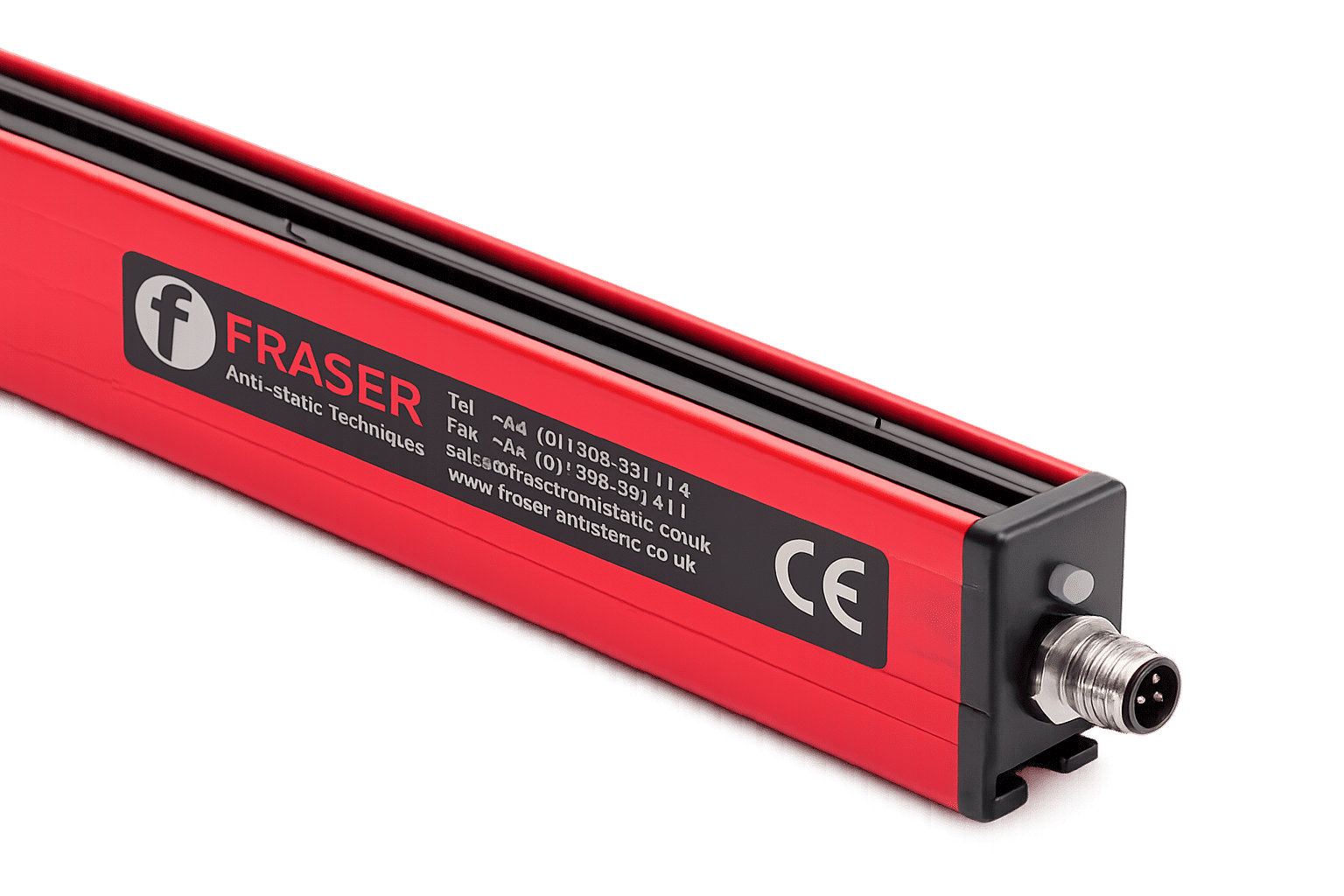

NEOS 12F Intelligent Static Eliminator
The NEOS 12F Intelligent Static Eliminator is a 24 V DC short-range ionising bar designed for high-speed industrial applications requiring strong and precise static neutralisation. It uses integrated electronics and NEOS adaptive intelligence to monitor static charge levels and optimise ion output for rapid charge decay. It is typically used in converting, packaging, plastics, and textile processes where close-range static control is required.
EquipmentIntelligent Static Eliminator Bar
ManufacturerFraser Anti-Static Techniques
Type / Model / Part noNEOS 12F
Technical specification
| Parameter | Value |
|---|---|
| Supply Voltage | 24 V DC (21–28 V) |
| Ionising Voltage | 12 kV (integrated) |
| Operating Distance | Up to 100 mm (short-range application) |
| Control System | NEOS adaptive intelligence (2 automatic + 3 manual modes) |
| Output Signals | HV OK / Attention (PLC compatible, IEC 61131-2 Type 1/2/3) |
| Status Indication | Bi-colour LED + “Clean Me” indicator |
| Construction | Reinforced FR-ABS extrusion with epoxy encapsulation |
| Emitter Type | Tungsten, shockless, long-life |
| Protection Rating | IP67 |
| Electrical Connector | M12 5-pin |
| Current Consumption | Max 1.5 A |
| Operating Temperature | 0 – 55 °C |
| Humidity | Up to 70% RH (non-condensing) |
| Weight | 1.5 kg/m |
| Certification | CE, CB, UL |
Features
- High-intensity short-range static neutralisation
- Adaptive ion control for fast charge decay
- Fully encapsulated industrial design for durability
- Dual local and remote monitoring outputs
- Suitable for high-speed production lines
- Modular lengths for application-specific installation
