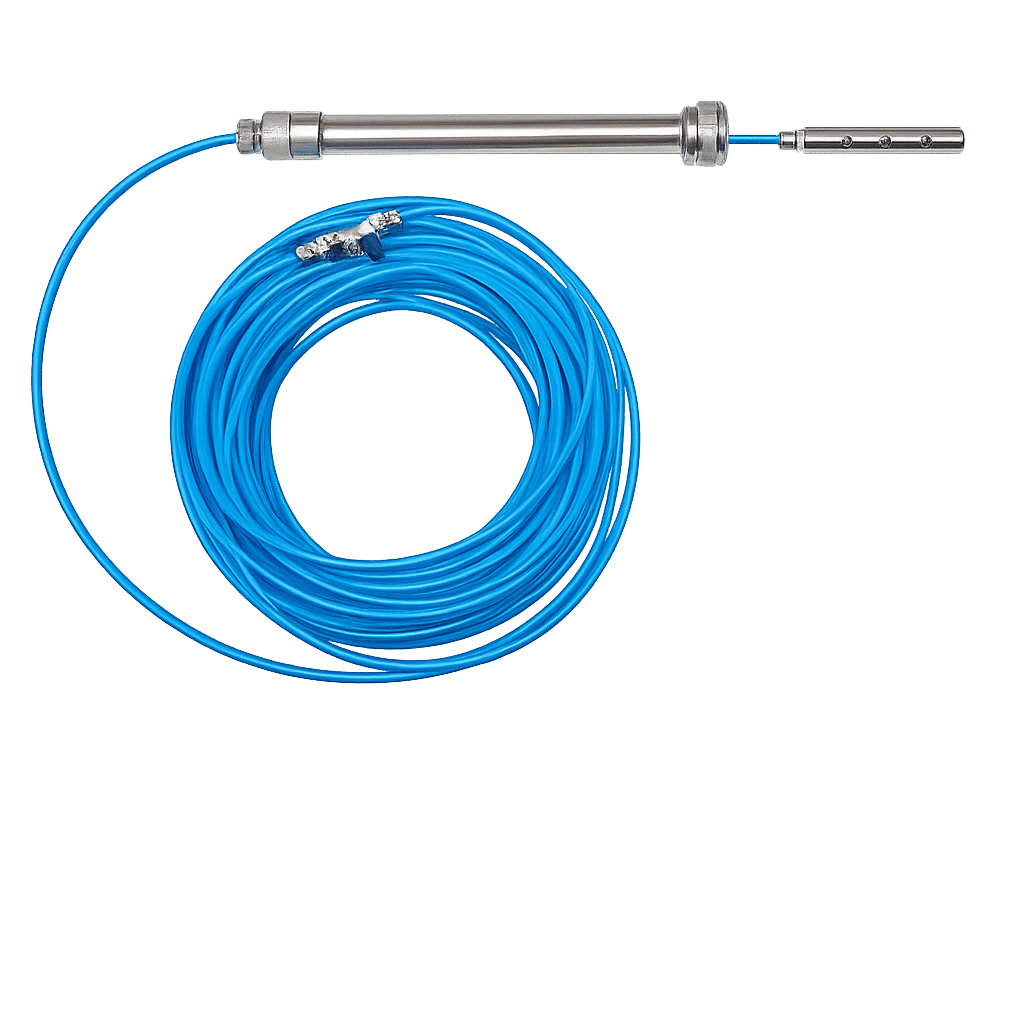

L40 Liquid Conductivity Meter

Name: L40 Liquid Conductivity Meter
Brand: Fraser Anti-Static Techniques
Availability: InStock

The L40 Liquid Conductivity Meter is a portable diagnostic instrument used to measure the electrical conductivity of low-conductivity liquids such as fuels and solvents. It is designed for electrostatic hazard assessment in industrial processes where liquid movement (pumping, mixing, or transfer) can generate static charge buildup. The device provides accurate, auto-ranging digital measurements with automatic zeroing before each test to ensure consistent results.

Static Neutralization and Generations

Speacialist Equipments

Equipment L40 Liquid Conductivity Meter

ManufacturerFraser Anti-Static Techniques

Type / Model / Part noL40

Download PDF

Technical specification

Parameter	Specification
Measurement Range	0.1 pS/m to 1.0 × 10⁸ pS/m
Auto-Ranging	Yes
Auto-Zeroing	Microprocessor controlled before each measurement
Display	Backlit digital display with direct read-out
Metering Cell Volume	36 ml
Electrode Spacing	10 ± 0.8 mm
Bias Voltage	5 V DC
Power Supply	Internal rechargeable battery + 110–240 V AC, 50–60 Hz
Battery Charging Time	Approx. 16 hours (overnight)
Low Battery Indication	Yes (on display)
Metering Cell Material	Stainless steel external cell

Description (System Features):

Measures conductivity of low-conductivity liquids such as fuels and solvents
Supports electrostatic hazard evaluation in industrial liquid handling systems
Provides direct digital readout with automatic ranging for ease of use
Includes external metering cell designed for consistent sample volume measurement
Portable operation with rechargeable battery for field use
