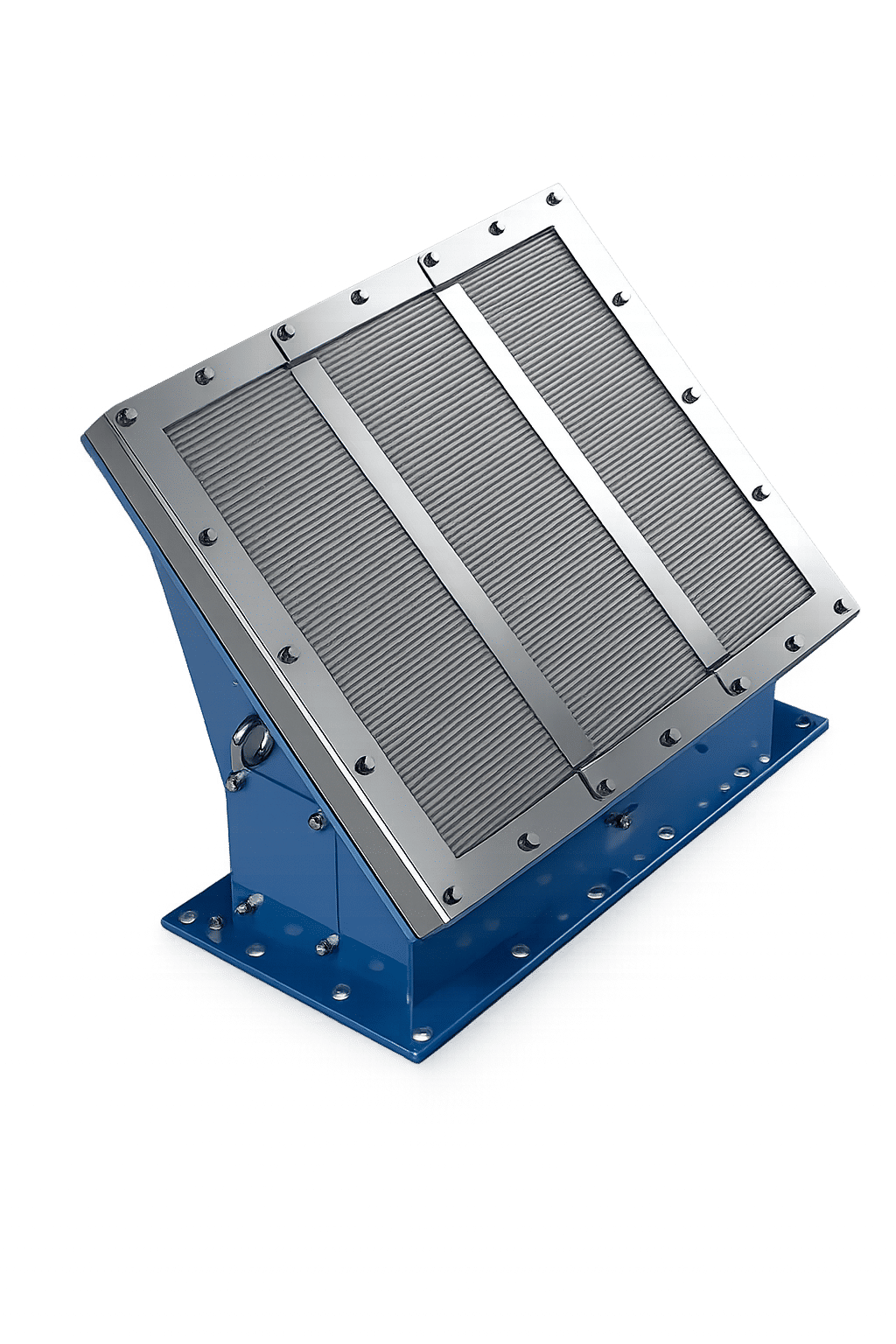

IVE Flameless Explosion Vent
The IVE Flameless Explosion Vent is designed for explosion protection of process equipment such as bucket elevators installed indoors or in locations where standard explosion venting cannot be safely used. It combines pressure relief with flame arresting technology to safely vent explosion pressure while preventing flame release into the surrounding area.
Description
During an explosion event, the vent opens and directs gases through a flame arresting mesh element, which cools the hot gases and extinguishes the flame before discharge. The system includes a burst detection sensor to indicate activation and support operational response.
Technical specification
| Parameter | Value |
|---|---|
| Product Type | Flameless explosion vent |
| Operating Principle | Bucket elevators and indoor process vessels |
| Venting Method | Pressure relief with flame arresting mesh |
| Sensor | Integrated vent burst detection sensor |
| Certification | EN 16009 |
| Function | Internal explosion pressure relief without flame emission |
| Frame Material | Carbon steel (coated) |
| Vent Material | Stainless steel |
Features
- Provides explosion pressure relief without flame ejection
- Integrated flame arresting mesh for flame quenching
- Designed specifically for bucket elevator applications
- Integrated vent burst detection sensor
- Large mesh area for improved venting efficiency
- Inspection port for easy inspection
- Field reconditioning capability
- Optional weather cover available
