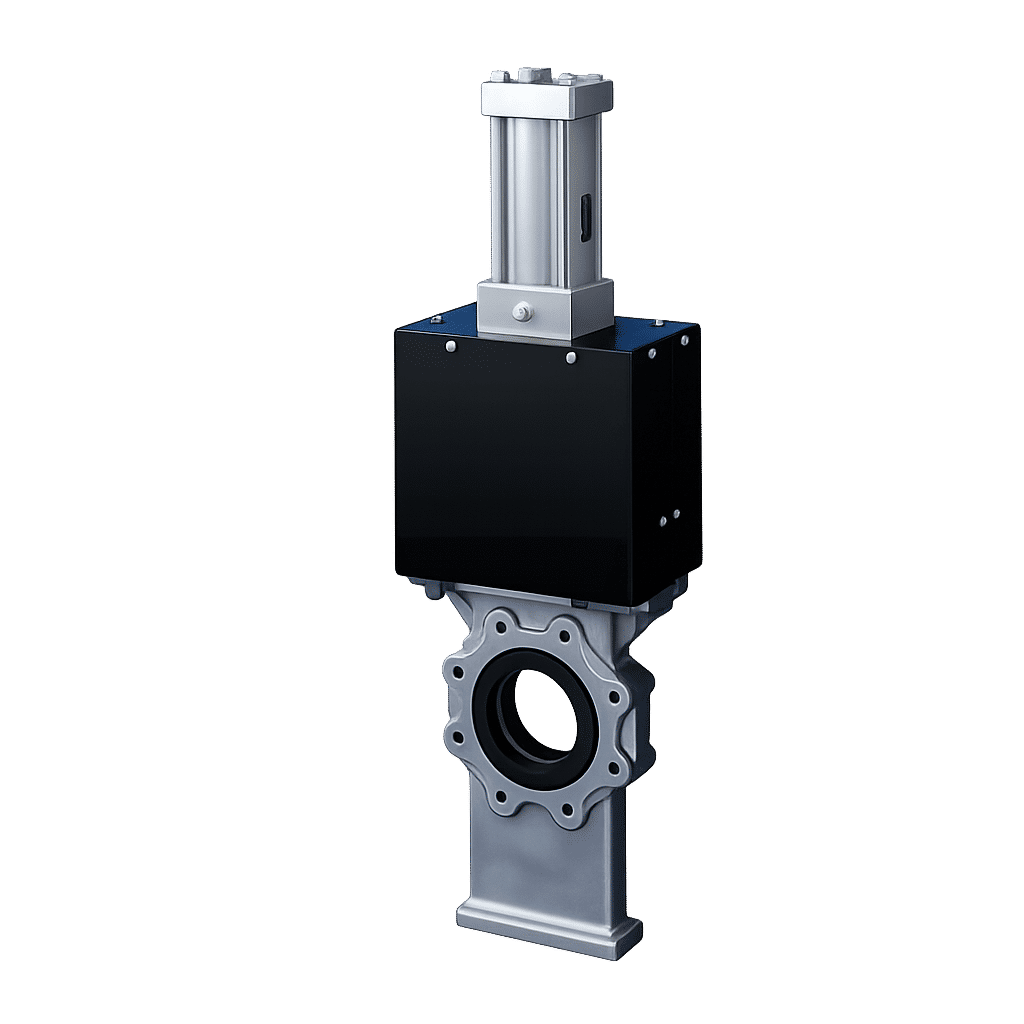

Isolation Valve
The IEP Technologies High Speed Isolation Valve is designed to provide rapid mechanical isolation within explosion protection systems. The valve operates within milliseconds to form a physical barrier in process pipelines, preventing flame and pressure propagation between interconnected industrial equipment.
Product description
The system is typically activated by an explosion detection signal processed through an IEP Technologies control unit. Upon activation, nitrogen from a high-rate discharge system drives a piston actuator, rapidly closing a full-bore stainless steel gate to isolate the process line.
The valve is suitable for use in explosion isolation applications across dust handling, gas, and vapor processing systems, where compliance with NFPA 68 and NFPA 654 guidelines is required.
| Parameter | Value |
|---|---|
| Product Type | Mechanical explosion isolation valve |
| Application | Explosion isolation in process pipelines |
| Operating | Range Full vacuum to 30 psi (2 bar) Maximum Deflagration Pressure 150 psi (10 bar) |
| Actuation Method | Nitrogen-driven piston system |
| Detection Input | Explosion pressure detector via control unit |
| Flange Standards | ANSI B16.5 150# / DIN 2501 PN10 |
| Gate Material | 316 stainless steel |
| Gate Shroud Material | 316 stainless steel |
| Piston/Weldment Material | Painted mild steel |
| Seat Material Options | EPDM (Nordel) / FKM (Viton®) |
| Liner Material Options | UHMWP / filled PTFE (Teflon®) |
| Pressure Source | High-rate discharge nitrogen bottle |
Design & Performance Features
- Full-bore design minimizes pressure drop
- High-speed mechanical closure within milliseconds
- Designed to withstand explosion pressure waves up to 150 psi
- Minimal product build-up due to full-port construction
- Minimal reconditioning required after actuation
- No gate deformation under explosion load conditions
- Compatible with IEP explosion detection and control systems
Typical Applications
- Dust collectors
- Mills and grinders
- Industrial fans
- Dryers
- Vapor recovery lines
- Interconnected process piping systems
Features
- Provides rapid mechanical isolation within milliseconds
- Full-bore stainless steel construction for unrestricted flow
- High structural integrity under explosion pressure conditions
- Compatible with ANSI and DIN flange standards
- Nitrogen-driven piston actuation system
- Minimal maintenance and reconditioning requirements
- Suitable for dust, gas, and vapor explosion protection systems
- Integrated into complete IEP Technologies explosion protection systems
