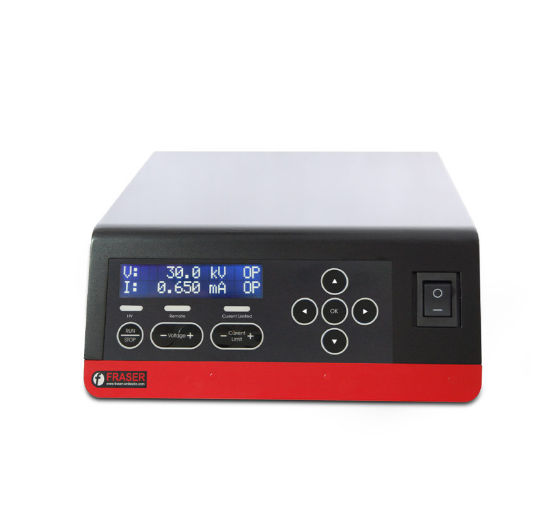

IONFIX PRO Static Generator
The IONFIX™ Pro is a high-performance static generator designed for demanding industrial electrostatic applications requiring high power, precise control, and reliable operation. Delivering up to 150 W of power with output voltages up to 30 kV or 60 kV, it is suitable for continuous and high-speed production processes such as winding, lamination, interleaving, product separation, and material handling.
Product description
The system is designed for both simple operation and advanced configuration, offering intuitive keypad control with detailed LED status and fault feedback. It supports integration into automated production lines through standard PLC interfaces and optional fieldbus communication.
With fast response times, multiple safety systems, and four high-voltage outputs, the IONFIX™ Pro provides flexible and stable electrostatic performance for complex industrial environments.
Features
- High-power static generator delivering up to 150 W output
- Available in 30 kV and 60 kV configurations
- Positive or negative polarity options
- Fast rise and fall times for high-speed processes
- Supports up to four high-voltage electrode outputs
- Intuitive keypad control with LED status and fault display
- PLC-compatible remote interface for automation systems
- Optional fieldbus communication integration
- Adjustable voltage and current limits for process control
- Multiple safety protections including overload and short-circuit protection
- Flexible mounting with 180° display rotation
Specification
| Specification | Details |
|---|---|
| Construction | 1.5 mm powder coated steel |
| Dimensions | 264 × 105.25 × 337 mm (W × H × D) |
| Width with Brackets | 314.30 mm |
| Electrical Output (30 kV model) | 30 kV max, 150 W, 5 mA |
| Electrical Output (60 kV model) | 60 kV max, 150 W, 2.5 mA |
| Voltage Adjustment | 0.1 kV steps |
| Current Limit Adjustment | 0.01 mA steps |
| Polarity | Positive or negative (specified at order) |
| HV Connections | Up to 4 electrodes |
| External Control | 25-way D-type PLC interface |
| Electrical Input | 90 – 250 V AC, 50/60 Hz, 3 A max |
| Power Cable | 2.8 m cable |
| AC Inlet | IEC 60320 C14 |
| Safety Features | Overload, short-circuit, sparking, mis-wiring protection |
| Operating Environment | Dry, oil-free location |
| Operating Temperature | 0 – 50 °C |
| Humidity | 70 % rH non-condensing max |
| Protection Rating | IP20 |
| Certification | CE |
| Optional Feature | Fieldbus connection |
