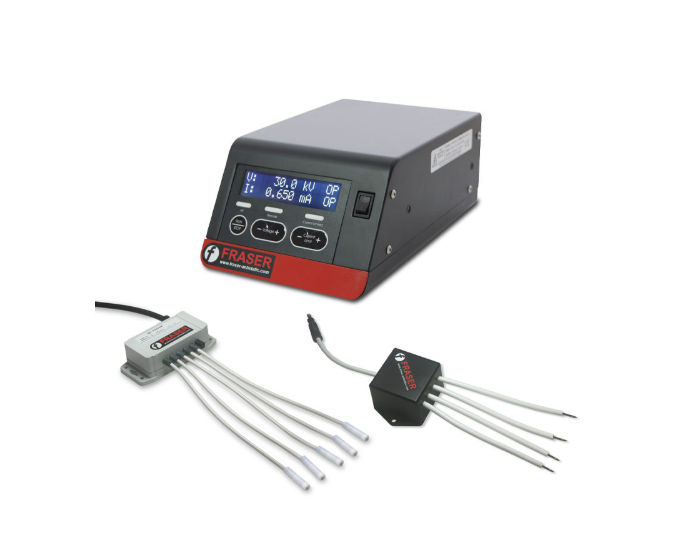

IONFIX IML Accessories
Fraser offers a versatile range of IML accessories designed to complement the IONFIX™ Compact Static Generator for in-mould labelling applications. The system is designed to provide flexible electrostatic charging solutions for label handling, adhesion, and mould positioning in plastics and packaging industries. Using the dedicated IML version of the IONFIX™ Compact Static Generator, limited to 20 kV output, the accessories support efficient and reliable label placement during production processes. The range includes connector boxes, splitter boxes, electrodes, static dissipative foam, high-voltage silicone cable, plated emitter pins, and a manual static wand for label adhesion applications.
Features
- Designed for in-mould labelling (IML) applications
- Compatible with IONFIX™ Compact Static Generator
- Supports flexible label charging and adhesion setups
- Connector and splitter boxes available for multi-electrode installations
- High-voltage silicone cable rated up to 30 kV
- Manual static wand for hand-operated label adhesion
- Static dissipative foam for label transfer to mould cavities
- Multiple electrode configurations available
- Compact and lightweight construction
- Suitable for robotic and machine-mounted installations
Included Accessories
- 7700 Connector Box
- 7700-R Connector Box with built-in resistance
- 771-R Single Point Electrode
- 772 Single Pin Electrode
- 773 IML Ring Terminal
- 7701 Splitter Box
- 81319 Silicone Cable
- 81036 Plated Emitter Pins
- 7400 Static Dissipative Foam
- 7097 Static Wand
7700 connector box specifications
| Specification | Details |
|---|---|
| Material | Polycarbonate, UL 94 V-0 Rated |
| Dimensions | 151 × 42.5 × 119 mm (W × H × D) |
| Weight | 190 g |
| Cable Length | 2 m standard cable to generator |
| Environmental Conditions | 0 – 55 °C, 70 % rH non-condensing max |
| Voltage Rating | Maximum 20 kV |
7701 splitter box specifications
| Specification | Details |
|---|---|
| Material | ABS, UL 94 V-0 Rated |
| Dimensions | 73 × 53 mm (W × D) |
| Cable Length | 1 m cable to 7700 box as standard |
| Outlet Configuration | 1–4 resistively coupled hardwired outlets |
| Weight | 120 g |
| Environmental Conditions | 0 – 55 °C, 70 % rH non-condensing max |
| Voltage Rating | Maximum 20 kV |
