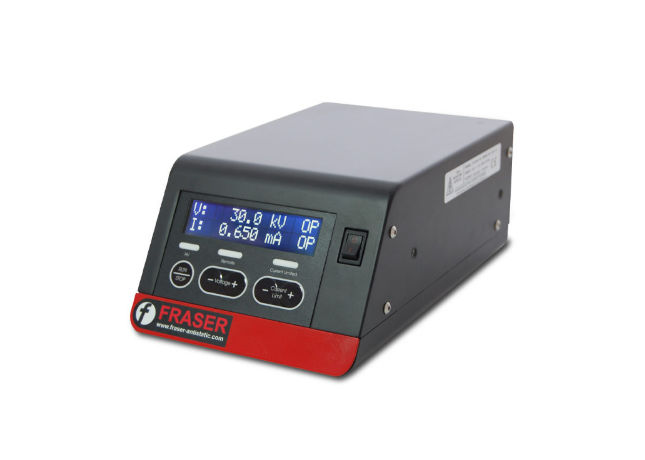

IONFIX Compact Static Generator
he IONFIX™ Compact is a medium-performance static generator designed for industrial electrostatic charging applications such as temporary adhesion, in-mould labelling (IML), hole detection, product charging, and material separation.
Product description
Designed for both standalone operation and full process integration, the generator delivers up to 30 kV output with precise voltage and current control. Its compact construction, fast response times, and PLC-compatible remote interface make it suitable for high-speed industrial applications.
The unit features a user-friendly keypad with LED displays for operating status and fault diagnostics, along with flexible mounting options for easy installation. The IONFIX™ Compact is available in positive or negative polarity versions and supports up to four generator electrodes.
Features
- 0 – 30 kV output for industrial electrostatic applications
- Fast rise and fall times for high-speed production processes
- Adjustable voltage in 0.1 kV steps
- Adjustable current limit in 0.01 mA steps
- Supports up to four high-voltage output connections
- Integrated keypad controls with LED status and fault display
- PLC-compatible remote control and monitoring interface
- Flexible mounting brackets with 180° display rotation
- Available in positive or negative polarity configurations
- Worldwide compatibility with AC or 24 V DC power supply options
- Protection against overload, short-circuit, sparking, and mis-wiring
Technical specifications
Description Equipment: Static Generator Manufacturer: Fraser Anti-Static Techniques Type / Model / Part no: IONFIX™ Compact Technical Specification & Spare Parts: IONFIX™ Compact Static Generator
| Specification | Details |
|---|---|
| Construction | 1.5 mm powder coated steel with flexible mounting brackets |
| Dimensions | 158.30 × 105.25 × 277 mm (W × H × D) |
| Overall Width with Brackets | 208.30 mm |
| Electrical Output | 30 kV max, 20 W |
| Output Current | 1 mA @ 20 kV, 0.67 mA @ 30 kV |
| Voltage Adjustment | 0.1 kV steps |
| Current Limit Adjustment | 0.01 mA steps |
| Polarity | Positive or negative (specified at order) |
| HV Connections | Up to 4 generator electrodes |
| External Control | 25-way D-type remote interface for PLC/process control |
| Electrical Input (DC) | 24 V DC, 2 A max, 48 W max |
| Electrical Input (AC) | 90 – 250 V AC, 50/60 Hz, 1 A |
| Connectors | Combicon or 4-pin M12 connector |
| AC Inlet | IEC 60320 C14 |
| Safety Protection | Overload, short-circuit, sparking, and mis-wiring protection |
| Environmental Conditions | Dry, oil-free environment |
| Operating Temperature | 0 – 50 °C |
| Humidity | 70 % rH non-condensing max |
| Protection Rating | IP20 |
| Certification | CE, CB, UL |
| Optional Version | IML variant limited to 20 kV output |
