Intelligent chart recorder DS 500 for compressed air and gases
Intelligent chart recorder for compressed air and gas systems with data recording, visualization, alarm functions, and webserver-based remote access.
EquipmentChart Recorder
Type / Model / Part NoDS 500
Technical specification
| Parameter | Value |
|---|---|
| Display | 7" Colour Touchscreen |
| Protection Class | IP 65 (metal housing) |
| Sensor Inputs | Up to 12 optional sensors |
| Signal Inputs | 0/4...20 mA, 0...10 V |
| Interface | Webserver (network-compatible) |
Applications
- Recording of measured data in compressed air systems
- Monitoring of gas systems
- Consumption monitoring of compressed air lines
- Cost calculation per generated m³ of compressed air
- Energy monitoring (kWh/m³)
- Monitoring of threshold exceedances
Features
- Touchscreen operation with graphical display of measured curves
- Real-time display of measured values and trends
- Alarm notification via SMS and e-mail (via CS Soft Basic software)
- Remote access via webserver
- Daily, weekly, and monthly reporting
- Cost analysis in € per m³ of compressed air
- Totalizer function for analogue signals
- Mathematical functions for internal calculations
- Automatic sensor detection and power supply
- Easy installation and system setup
- Up to 12 sensor inputs supported
- Storage and visualization of historical data
Related products
View Details
Dew point sensor FA 515 Ex
Al Ghwasa
View Details
DP 400 mobile - Mobile Dew Point Measurement with Pressure Sensor
Al Ghwasa
View Details
PI 500 - portable flow measurement
Al Ghwasa
View Details

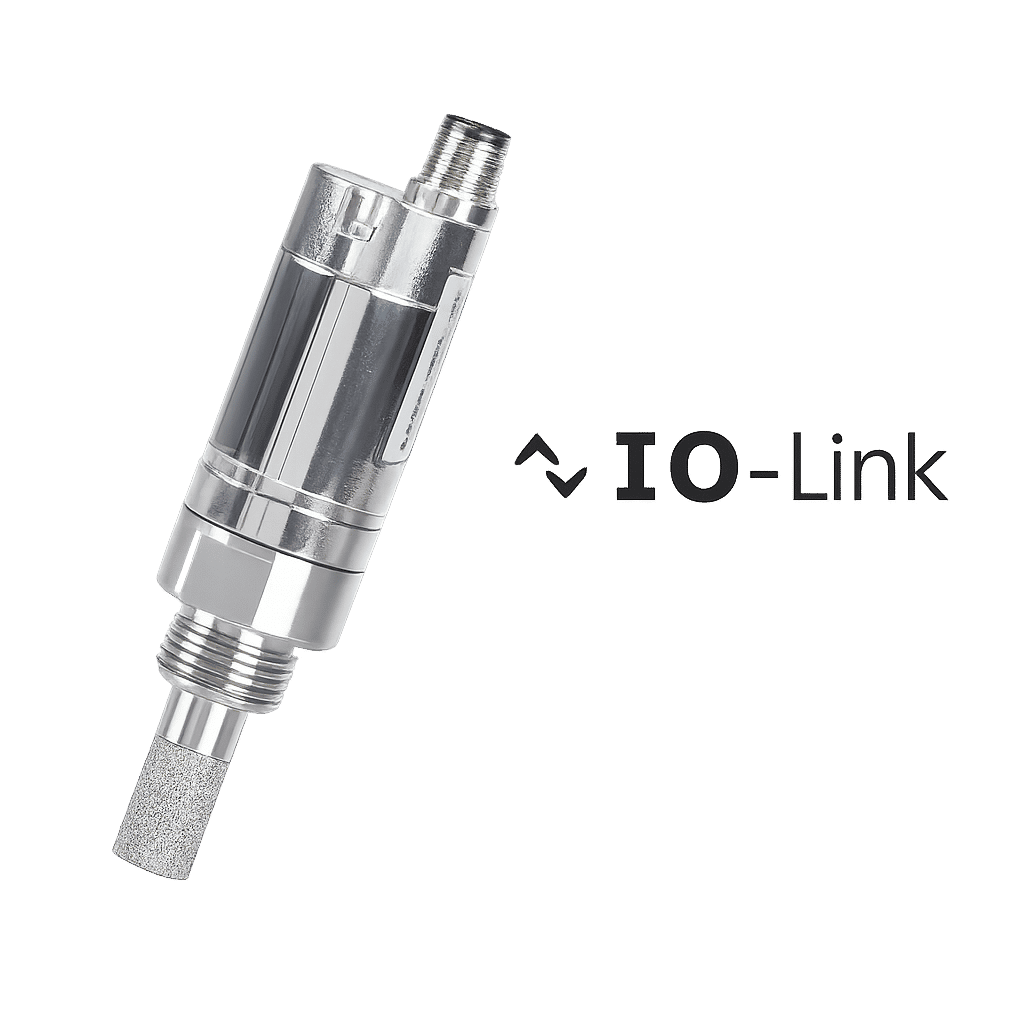

FA 510/515
