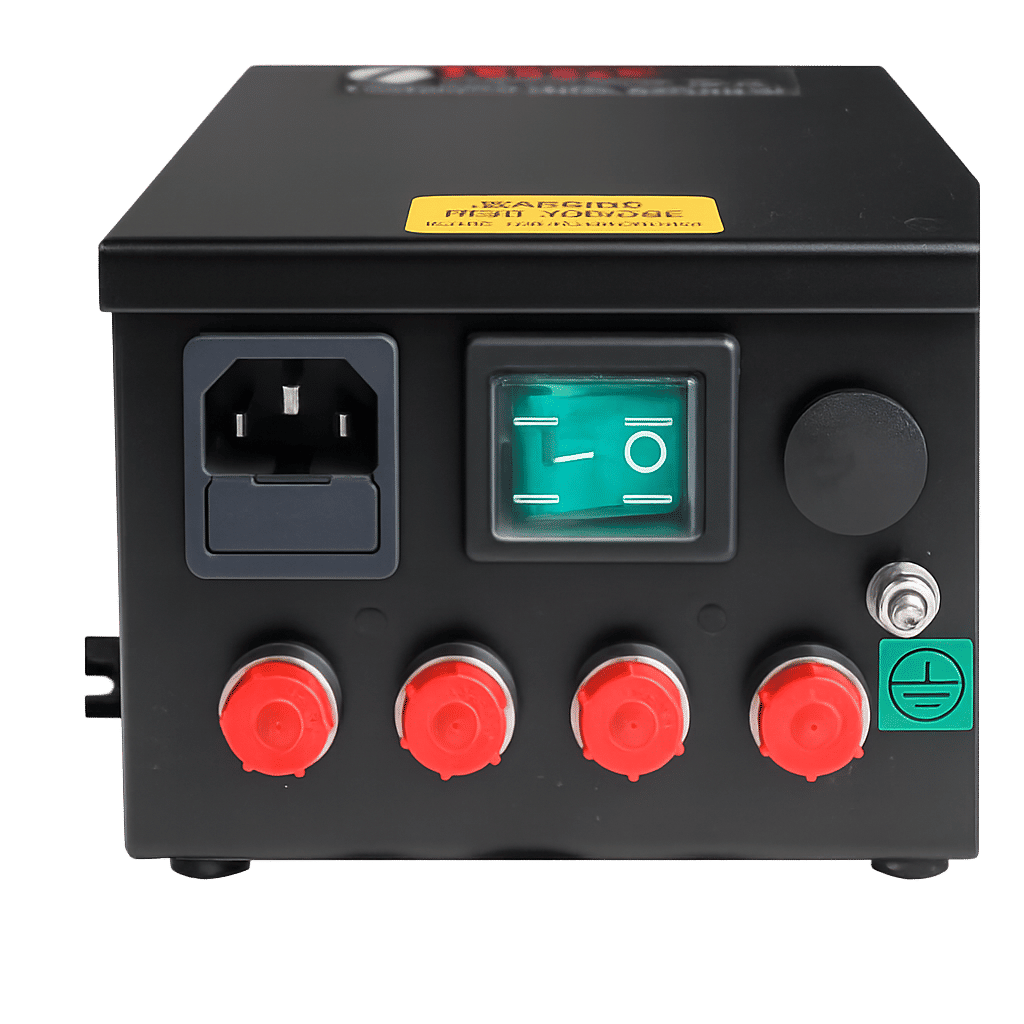

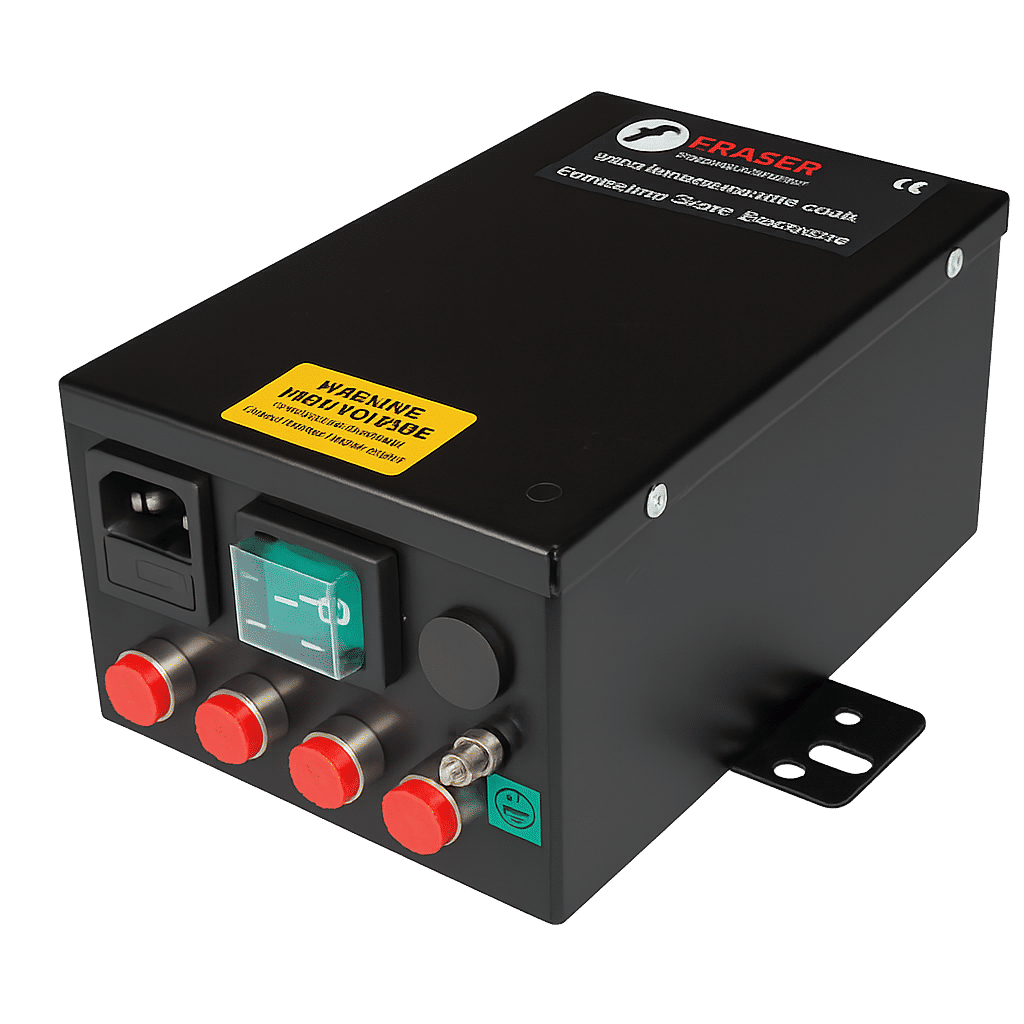

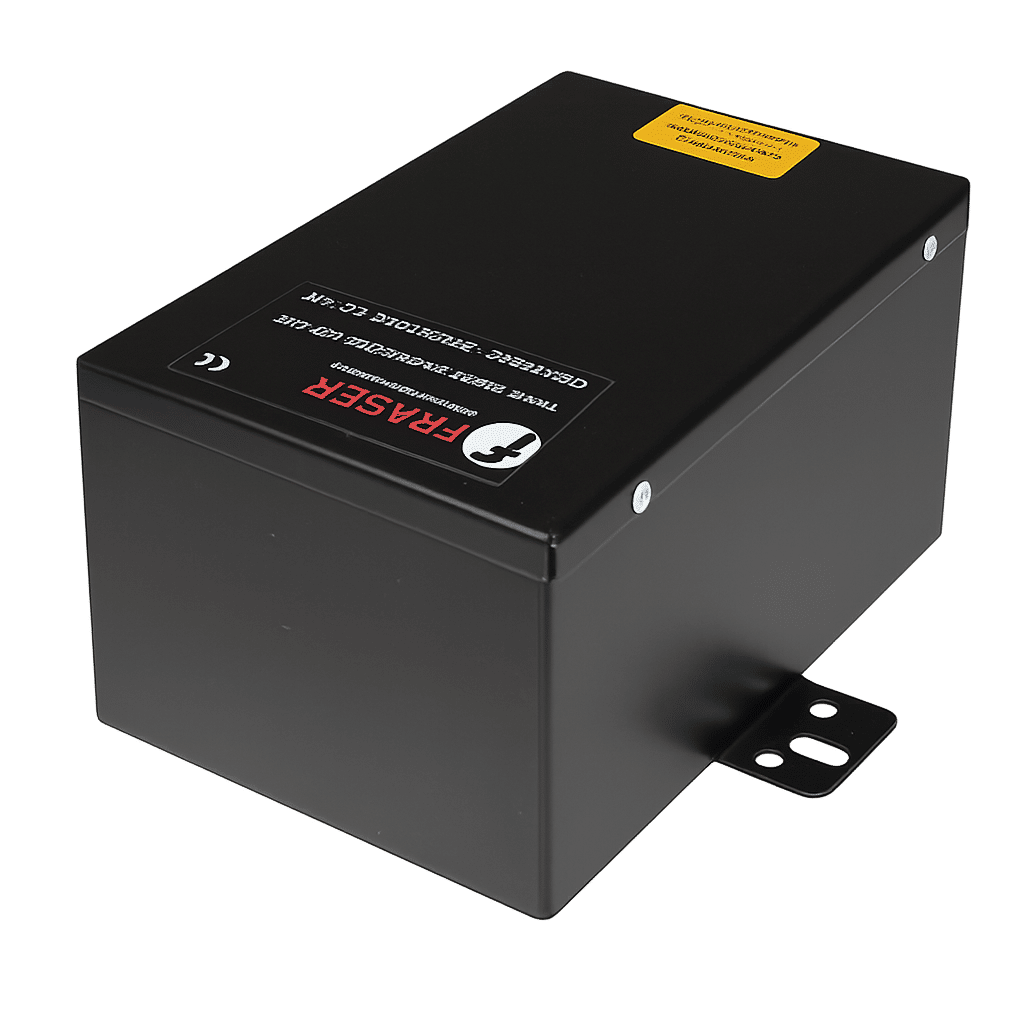

HP50-F Power Unit

Name: HP50-F Power Unit
Brand: Fraser Anti-Static Techniques
Availability: InStock

HP50-F Power Unit is a high-voltage AC power supply designed for operating multiple Fraser static eliminators in large industrial static control systems. It delivers stable 6 kV ionising output with high load capability, integrated overload protection, and reliable long-term operation for continuous industrial applications requiring multiple ionisation bars.

Static Neutralization and Generations

Static Elimnation

EquipmentHigh Voltage Power Unit

ManufacturerFraser Anti-Static Techniques

Type / Model / Part noHP50-F

Download PDF

Technical specification

Parameter	Specification
Output Voltage	6 kV AC
Maximum Peak Voltage	7.76 kV
Secondary Current Limit	5 mA
Maximum Load Capacity	30 m combined bar and HT cable
Supported Connections	Up to 4 static eliminators
Output Type	Flat-wave high-voltage output
Safety Protection	Automatic shutdown on overload or short circuit
Input Voltage	115 V or 230 V AC
Input Frequency	50 / 60 Hz
Power Consumption	Approx. 30 W
Power Connection	2 m IEC power lead supplied
Construction	Powder-coated steel housing
Transformer Design	Fully encapsulated windings
Dimensions	131.4 × 89 × 196.7 mm (W × H × L)
Mounting Width	180 mm including bracket
Protection Rating	IP40
Operating Temperature	Up to 50 °C
Humidity	Up to 70% RH non-condensing
Installation Environment	Dry and oil-free location
Connection Type	Fraser HP connectors
Control Features	Local ON/OFF switch
Monitoring Option	Optional remote monitoring for HV and electrode status
Certifications	CE, CB, UL
