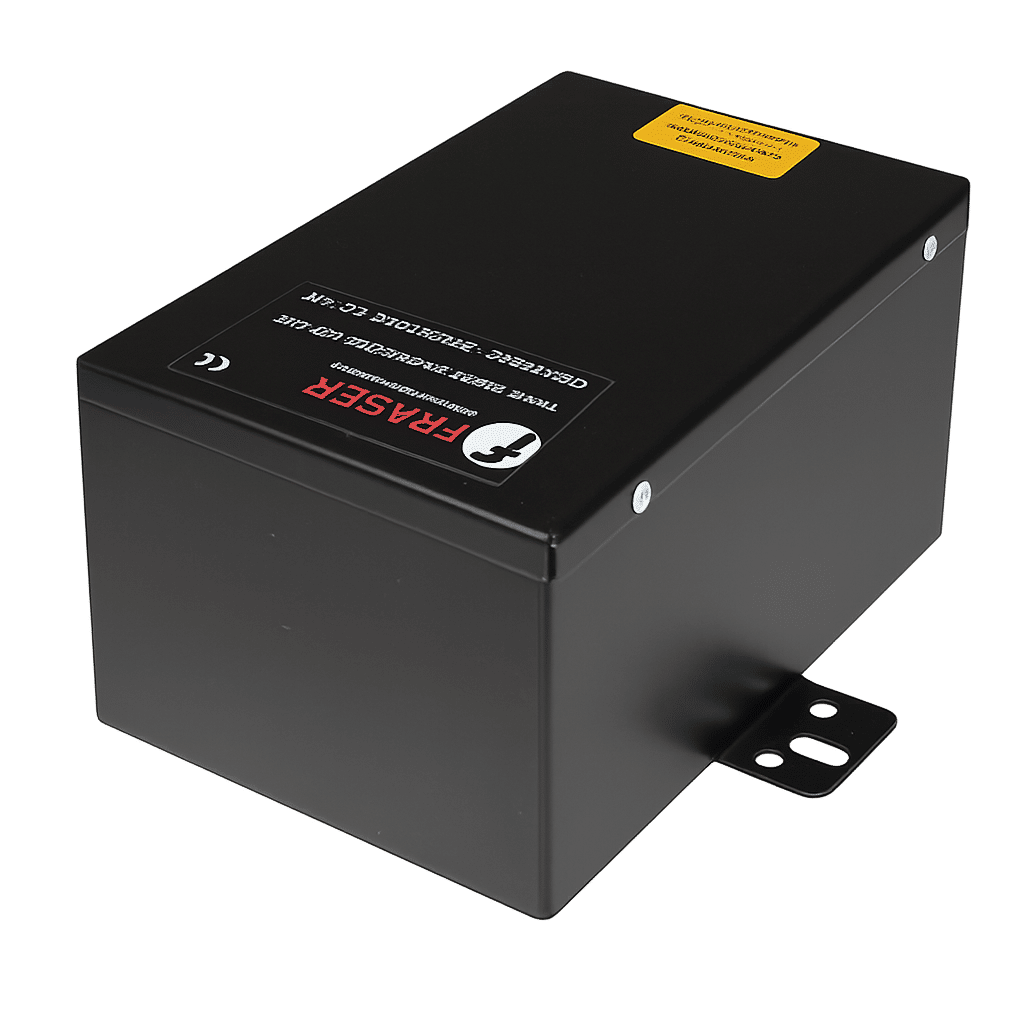

HP50-4 Power Unit

Name: HP50-4 Power Unit
Brand: Fraser Anti-Static Techniques
Availability: InStock

HP50-4 Power Unit is a high-voltage AC power supply designed to operate up to four Fraser static eliminators in industrial static control systems. It delivers stable 5.5 kV ionising power with integrated overload protection, multiple output capability, and reliable operation for continuous industrial manufacturing processes.

Static Neutralization and Generations

Static Elimnation

EquipmentHigh Voltage Power Unit

ManufacturerFraser Anti-Static Techniques

Type / Model / Part noHP50-4

Download PDF

Technical specification

Parameter	Specification
Output Voltage	5.5 kV AC
Secondary Current Limit	5 mA
Maximum Load Capacity	12 m combined bar and HT cable
Supported Connections	Up to 4 static eliminators
Safety Protection	Automatic shutdown on overload or short circuit
Input Voltage	115 V or 230 V AC
Input Frequency	50 / 60 Hz
Power Consumption	Approx. 30 W
Power Connection	2 m IEC lead supplied
Construction	Powder-coated steel housing
Transformer Design	Fully encapsulated windings
Dimensions	131.4 × 89 × 196.7 mm (W × H × L)
Mounting Width	180 mm including bracket
Protection Rating	IP40
Operating Temperature	Up to 50 °C
Humidity	Up to 70% RH non-condensing
Installation Environment	Dry and oil-free location
Connection Type	Fraser HP connectors
Control Features	Local ON/OFF switch
Monitoring Option	Optional remote operational condition/alarm monitoring
Compatible Equipment	Fraser AC static eliminators
Certifications	CE, CB, UL
