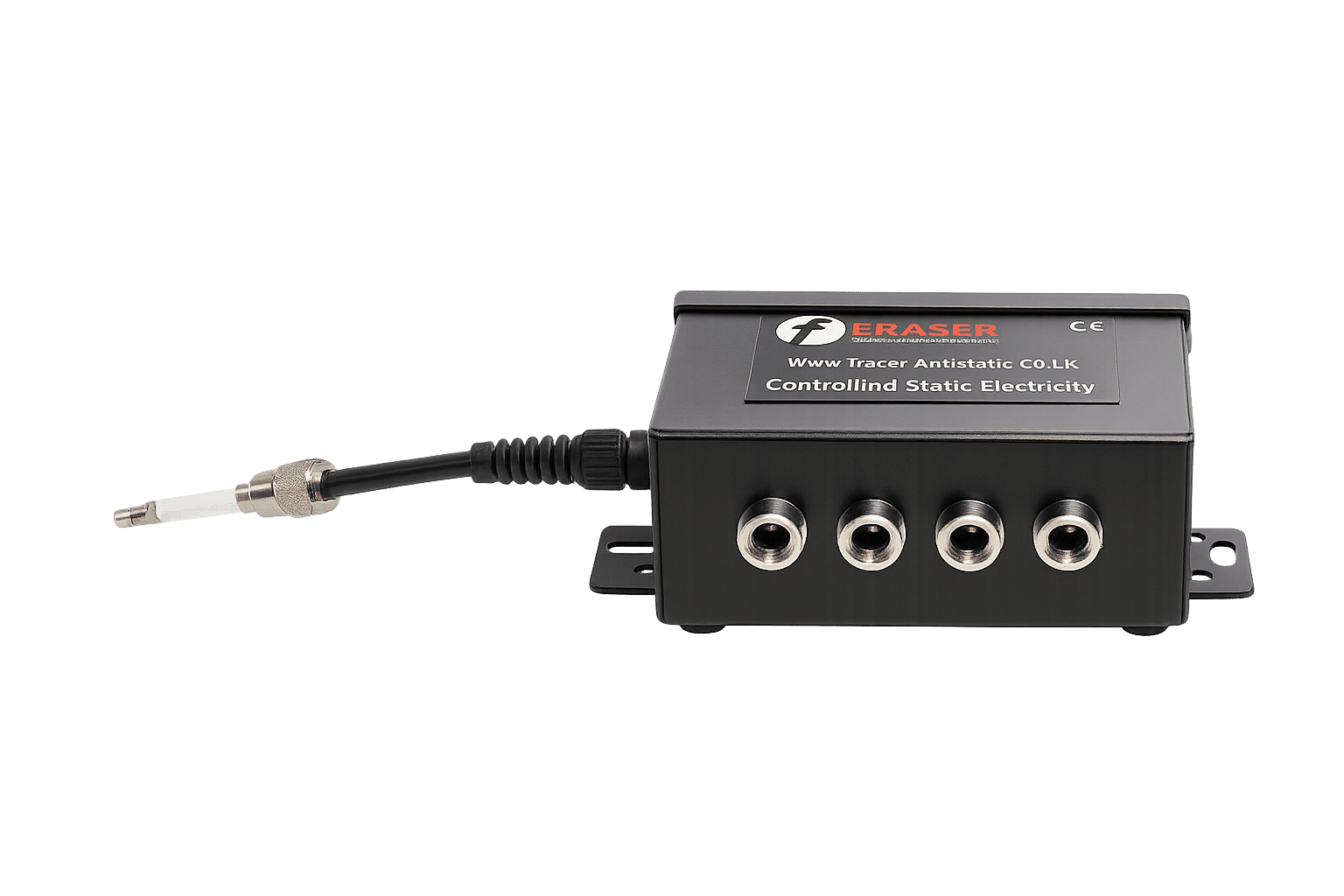

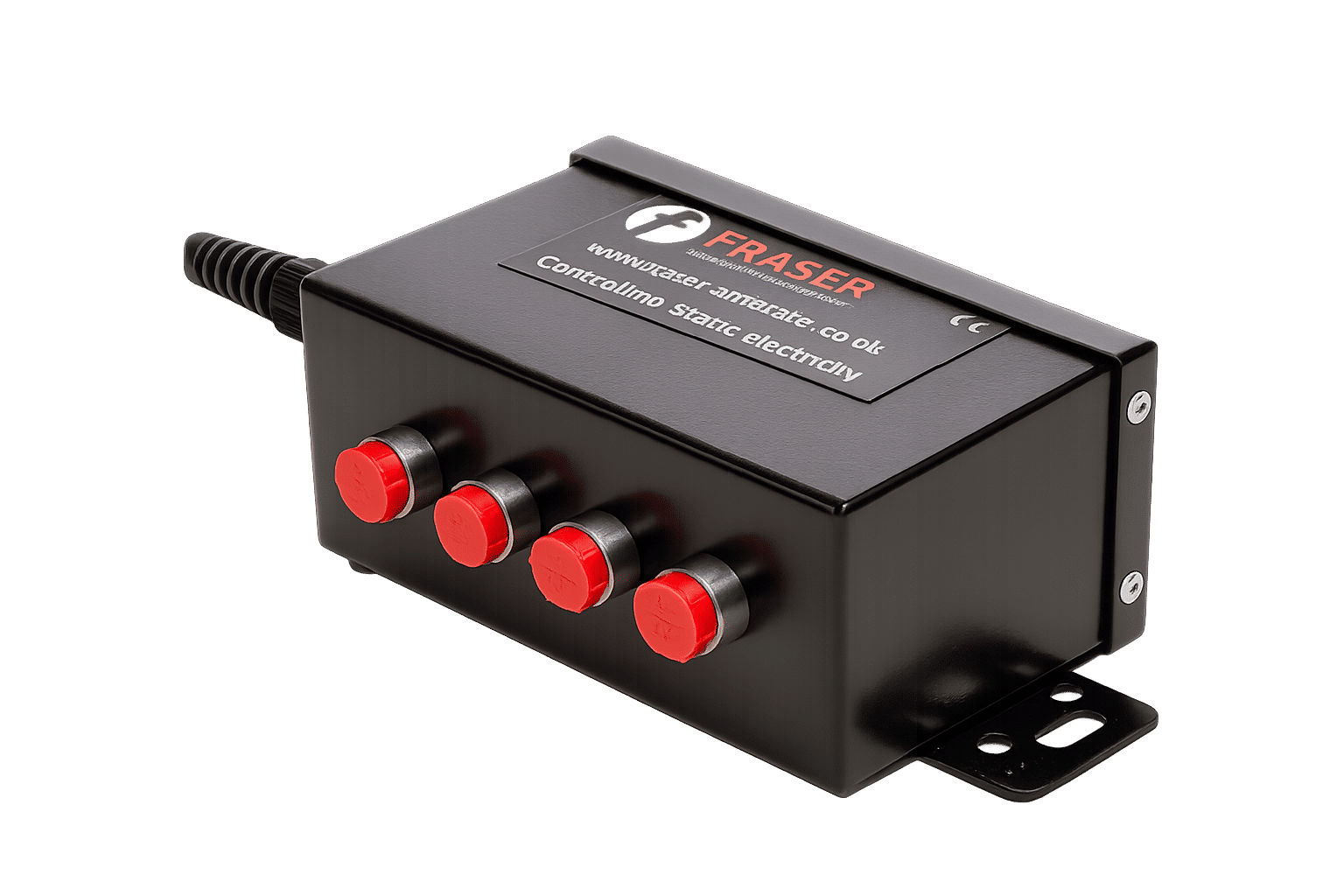

HP 4:1 Connector Box
HP 4:1 Connector Box is a high-voltage distribution accessory designed for Fraser 5.5 kV and 6 kV ionisation systems. It enables flexible cable routing, additional static eliminator connections, and intermediate cable disconnection points within industrial static control installations.
EquipmentHigh Voltage Connector Box
ManufacturerFraser Anti-Static Techniques
Type / Model / Part noHP 4:1 Connector Box
Technical specification
| Parameter | Specification |
|---|---|
| Application Type | High-voltage cable distribution connector |
| Compatible Systems | Fraser 5.5 kV and 6 kV AC ionisation systems |
| Connector Configuration | 4:1 high-voltage distribution |
| Connection Type | Fraser HP connectors |
| Housing Material | Mild steel |
| Dimensions | 138 × 86 × 65.2 mm (W × H × D) |
| Mounting Width | 180 mm including brackets |
| Included Cable | 2 m hardwired HT cable |
| Total Weight | 800 g including cable |
| Functional Use | Cable distribution and disconnect point |
| Installation Capability | Supports additional static eliminators (within power unit load limits) |
| Safety Requirement | Power unit must be switched off before cable connection/disconnection |
