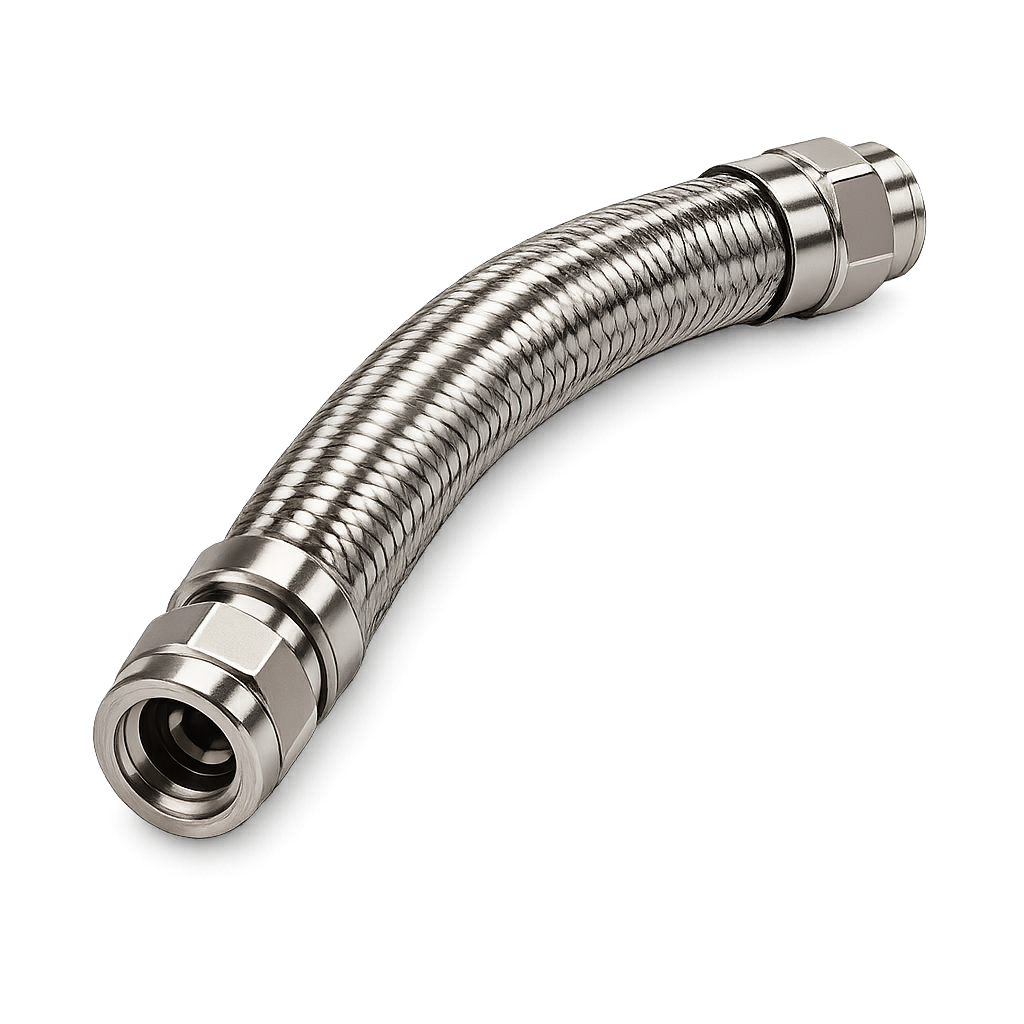

High-Pressure Hose Pipes
High-pressure hose pipes provide a flexible connection point in systems where rigid tubing cannot accommodate movement, vibration, or misalignment between components. Each assembly is built around a reinforced stainless steel core, typically a corrugated or braided construction, with medium- to high-pressure end connectors swaged or coned-and-threaded onto both ends to maintain a leak-tight seal at full rated pressure. The standard offering is a 3/8" hose with 9/16" end connectors, rated to 20,000 PSI and supplied in a standard 5 meter length, suited to high-pressure liquid and gas test systems, hydraulic circuits, and process instrumentation. Custom pressure ratings, hose sizes, connector types, and assembly lengths are available to match specific system requirements.
Description
High-pressure hose pipes provide a flexible connection point in systems where rigid tubing cannot accommodate movement, vibration, or misalignment between components. Each assembly is built around a reinforced stainless steel core, typically a corrugated or braided construction, with medium- to high-pressure end connectors swaged or coned-and-threaded onto both ends to maintain a leak-tight seal at full rated pressure. The standard offering is a 3/8" hose with 9/16" end connectors, rated to 20,000 PSI and supplied in a standard 5 meter length, suited to high-pressure liquid and gas test systems, hydraulic circuits, and process instrumentation. Custom pressure ratings, hose sizes, connector types, and assembly lengths are available to match specific system requirements.
Features
Rated to 20,000 PSI in the standard configuration
Flexible connection accommodates movement, vibration, and misalignment
Reinforced stainless steel construction for high-pressure liquid and gas service
Standard 3/8" hose size with 9/16" end connectors
Standard 5 meter assembly length, with custom lengths available
Corrosion-resistant 316 stainless steel core and end connectors
Custom pressure ratings, hose sizes, and connector types available on request
Factory pressure and leak tested before dispatch
Suitable for both liquid and gas service across a wide temperature range
Specifications
| Product Type | High-Pressure Flexible Hose Assembly |
| Standard Configuration | 3/8" hose size, 9/16" end connector, 5 meter length, 20,000 PSI rated |
| Construction | Reinforced stainless steel core (braided or corrugated) with swaged or coned-and-threaded end connectors |
| Material | Stainless Steel 316 (core, braid, and end connectors) |
| Pressure Rating | Up to 20,000 PSI (custom ratings available on request) |
| Standard Length | 5 meters (custom lengths available) |
| End Connection | 9/16" high-pressure coned-and-threaded or medium-pressure connector (other thread types and sizes available on request) |
| Service | Suitable for high-pressure liquid, gas, hydraulic, and instrumentation service |
Applications
Available Configurations
Standard High-Pressure Hose Assembly
3/8" hose size with 9/16" end connectors, rated to 20,000 PSI, supplied in a standard 5 meter length for general high-pressure liquid and gas service.
Custom Pressure-Rated Hose Assembly
Built to specified pressure ratings, hose sizes, connector types (NPT, BSP, JIC, coned-and-threaded), and assembly lengths to match particular system requirements.
Alternative Hose Sizes
Available in sizes other than 3/8" to suit varying flow requirements and connection interfaces.
Alternative End Connectors
Available with different connector sizes and thread types where 9/16" coned-and-threaded connections are not required.
Benefits
Typical System Components
