Gauge Accessories

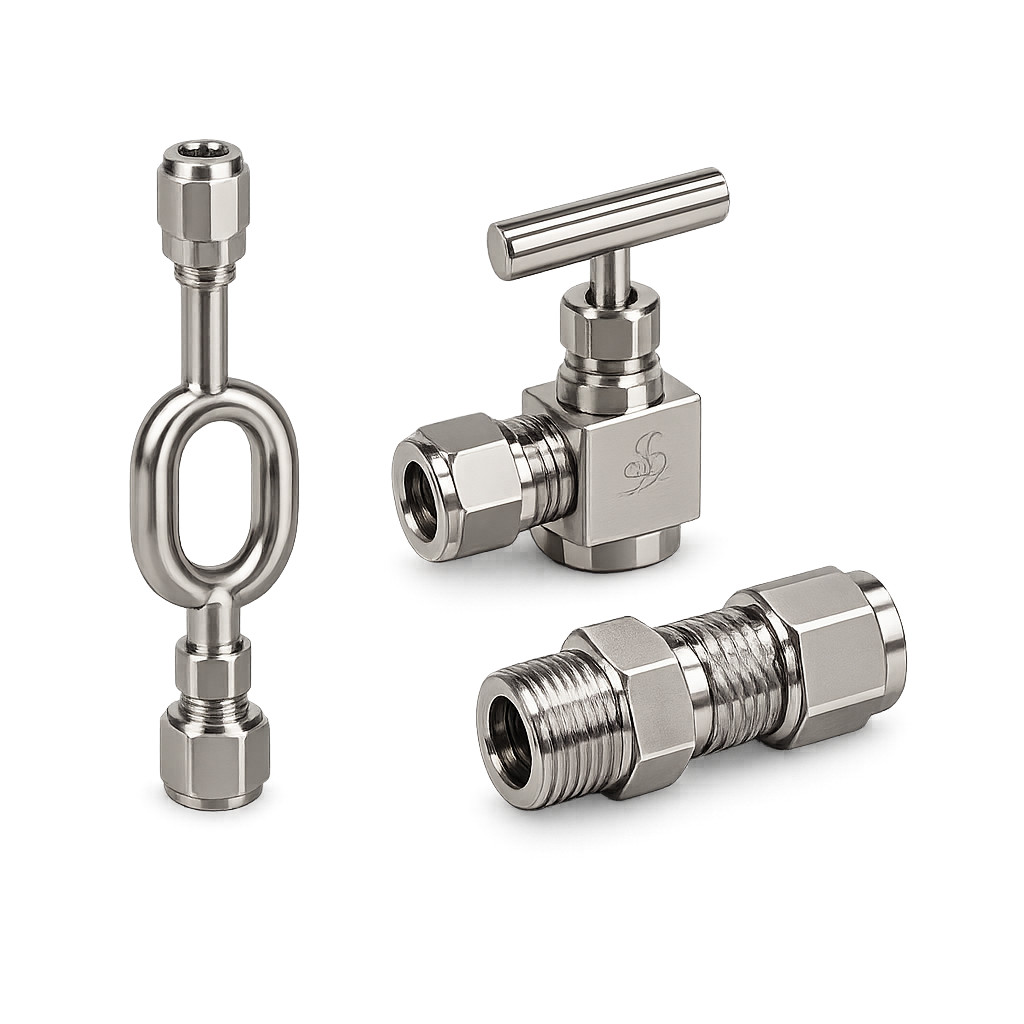

Gauge accessories protect pressure instruments from thermal shock, pressure pulsation, and overpressure while providing the connections needed to mount them correctly on process piping. Syphons buffer gauges from high-temperature steam or condensate lines, snubbers dampen pressure spikes and pulsation from pumps or compressors, and gauge cocks or mini valves allow a gauge to be isolated for maintenance or replacement without shutting down the line. Gauge savers protect the instrument from transient overpressure, while adapters, reducers, and mounting accessories provide the correct thread transition and physical support to fit a gauge to the process connection. Together these accessories extend gauge service life and simplify installation across instrumentation and process piping systems.
Description
Gauge accessories protect pressure instruments from thermal shock, pressure pulsation, and overpressure while providing the connections needed to mount them correctly on process piping. Syphons buffer gauges from high-temperature steam or condensate lines, snubbers dampen pressure spikes and pulsation from pumps or compressors, and gauge cocks or mini valves allow a gauge to be isolated for maintenance or replacement without shutting down the line. Gauge savers protect the instrument from transient overpressure, while adapters, reducers, and mounting accessories provide the correct thread transition and physical support to fit a gauge to the process connection. Together these accessories extend gauge service life and simplify installation across instrumentation and process piping systems.
Features
Protects pressure gauges from thermal shock, pulsation, and overpressure
Gauge cocks and mini valves allow isolation without shutting down the process line
Gauge adaptor's dual-port design supports a gauge plus a secondary instrument or accessory on one tap
Adapters and reducers correct thread mismatches between gauges and process connections
Mounting accessories provide secure panel or remote gauge installation
Corrosion-resistant 316 stainless steel construction
Compatible with standard 1/4" and 1/2" NPT gauge connections
Wide choice of connections and configurations to suit varied gauge types
Specifications
| Product Type | Gauge Accessories (Protection, Isolation, and Mounting) |
| Range Covered | Syphons, Snubbers, Gauge Cocks, Mini Valves, Gauge Savers, Adapters, Reducers, Mounting Accessories |
| Material | Stainless Steel 316 (SS316) |
| Thread Standard | ANSI/ASME B1.20.1 NPT (National Pipe Taper); BSP/ISO 7/1 or 228/1 |
| Size Range | 1/4" to 1/2" NPT (gauge adapter range); other accessories sized to match standard 1/4" and 1/2" gauge connections |
| Pressure Rating | Working pressures calculated per Power Piping Code ANSI B31.1 and ASME B31.3 |
Applications
Available Configurations
Syphon
A coiled or looped fitting installed between a gauge and a steam or hot process line, allowing condensate to form and buffer the gauge from direct high-temperature exposure.
Snubber
A restrictor fitting installed between a gauge and the process line to dampen pressure pulsation and spikes, protecting the gauge movement from fatigue and premature failure.
Gauge Cock
A small isolation valve installed at the gauge connection, allowing the gauge to be shut off from the process line for maintenance, calibration, or replacement.
Mini Valve
A compact valve used in the same isolation role as a gauge cock, typically used where space at the gauge connection is limited.
Gauge Saver
A protective device that limits transient overpressure reaching the gauge, helping prevent damage from pressure spikes beyond the gauge's rated range.
Adapter
A fitting that transitions between the gauge's thread size or type (NPT, BSP) and the process connection thread.
Reducer
A fitting that steps down from a larger process connection thread to a smaller gauge connection thread, or vice versa.
Mounting Accessory
Brackets, panel mounts, and related hardware used to physically support and position a gauge at its installation point.
