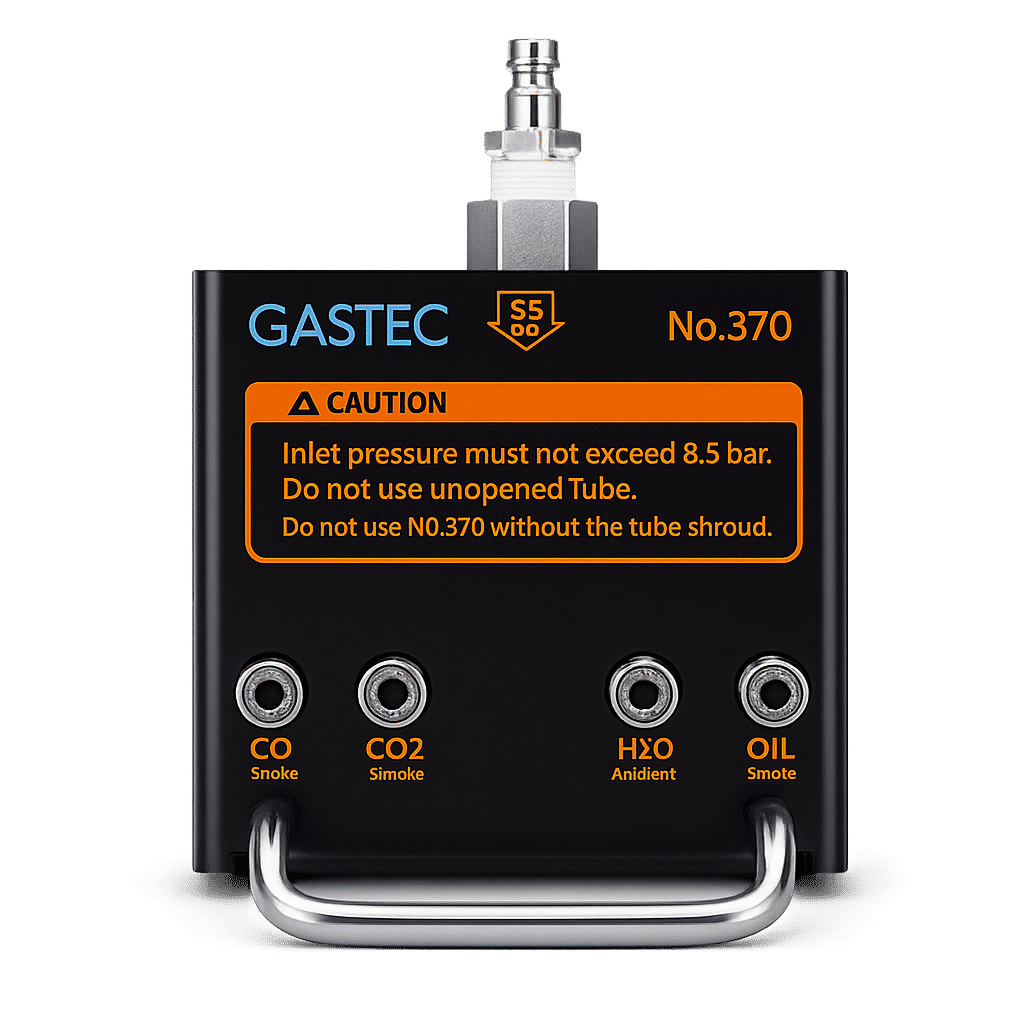

GASTEC Compressed Breathing Air Measurement Kit CG-1
Rapid Impurity Measurement for Compressed Breathing Air The Gastec CG-1 system allows for simple, fast, and simultaneous measurement of four harmful contaminants—CO, CO₂, water vapor, and oil mist—present in compressed breathing air from cylinders or compressors.
Key Feature
- No power source required
- Easy to connect to compressor or cylinder
- Quick, accurate results on-site
- Detects four contaminants simultaneously: CO, CO₂, water vapor, and oil mist

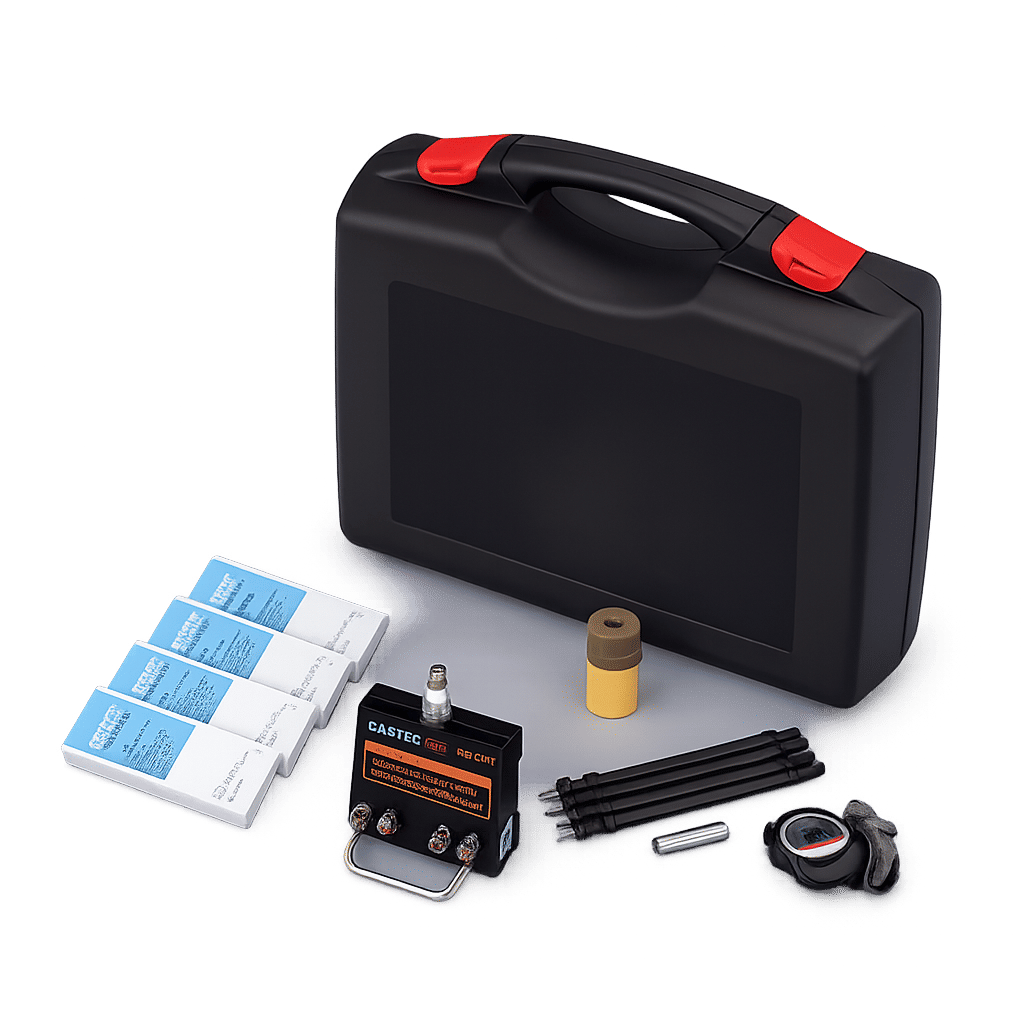

- Compact, durable carrying case
| Gas to be measured | Measuring Range(s) (ppm) | Sampling time (min) | Qty of tubes/box | CGA Grade D | OSHA | NFPA |
|---|---|---|---|---|---|---|
| Carbon Dioxide (CO₂) | 100-3000 | 2 | 10 | ≤ 1000 ppm | ≤ 1000 ppm | ≤ 1000 ppm |
| Carbon Monoxide (CO) | 5-100 2.5-5 | 24 | 10 | ≤ 10 ppm | ≤ 10 ppm | ≤ 5 ppm |
| Oil Mist | 0.3-5 mg/m³ | 25 | 10 | ≤ 5 mg/m³ | ≤ 5 mg/m³ | ≤ 2 mg/m³ |
| Oxygen (O₂) (Deluxe Kit only) | 2-24% | 1 | 10 | 19.5-23.5% | 19.5-23.5% | 19.5-23.5% |
| Water Vapor (H₂O) | 20-160 mg/m³ | 1 | 10 | - | ≤ 67 ppm or ≤ 49 mg/m³ | ≤ 24 ppm or ≤ 19 mg/m³ |
| Water Vapor (H₂O) (Optional) | 00-1000 | 20 sec | 10 | - | - | - |
How to Use
Prepare the Kit
01- Ensure the measurement kit is complete with all tubes, sensors, and the sampling pump.
- Check that the air source (cylinder or compressor) is ready for testing.
Sample the Air

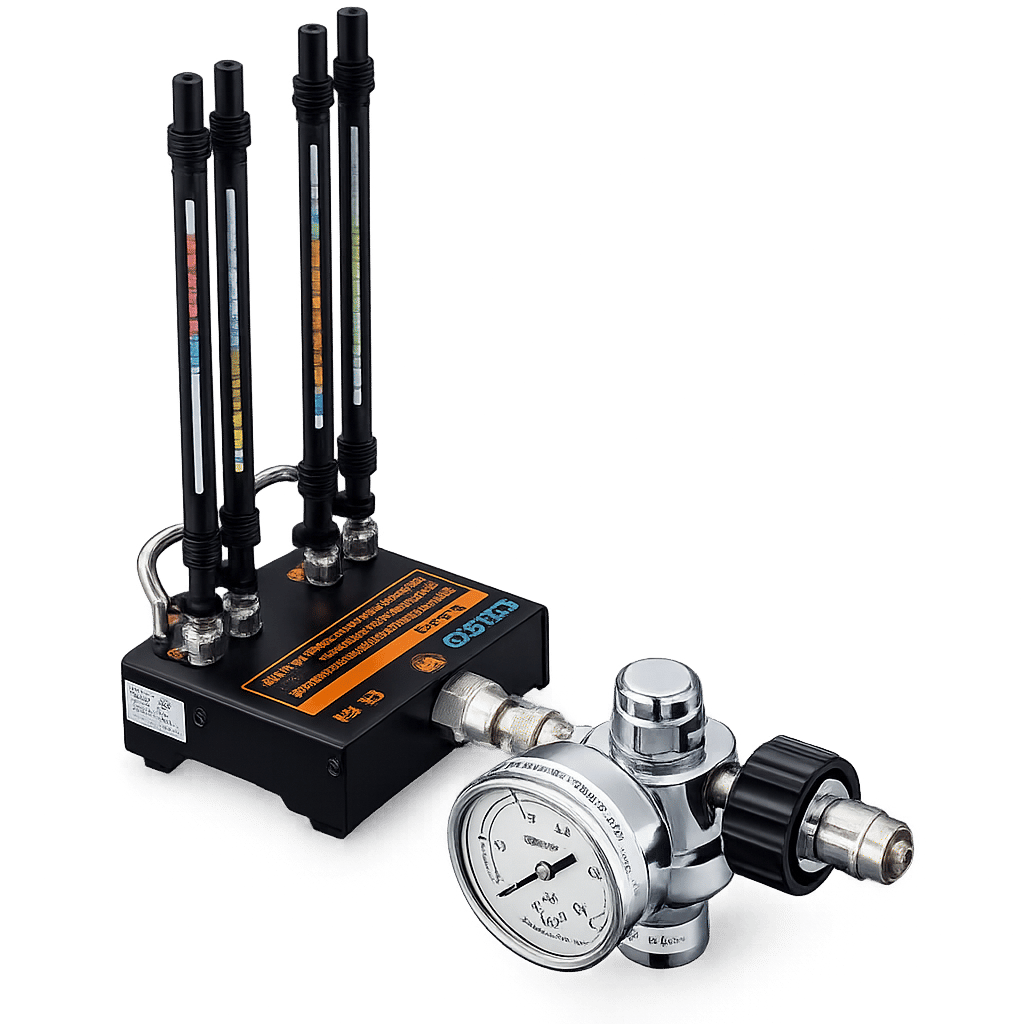

02- Connect the sampling tube to the compressed air source.
- Activate the pump to draw air through the sensors.
- The CG-1 system simultaneously measures CO, CO₂, water vapor, and oil mist.
Read and Record Results
03- Observe the color change or reading on each sensor to determine contaminant levels.
- Record the results for safety compliance and monitoring purposes
