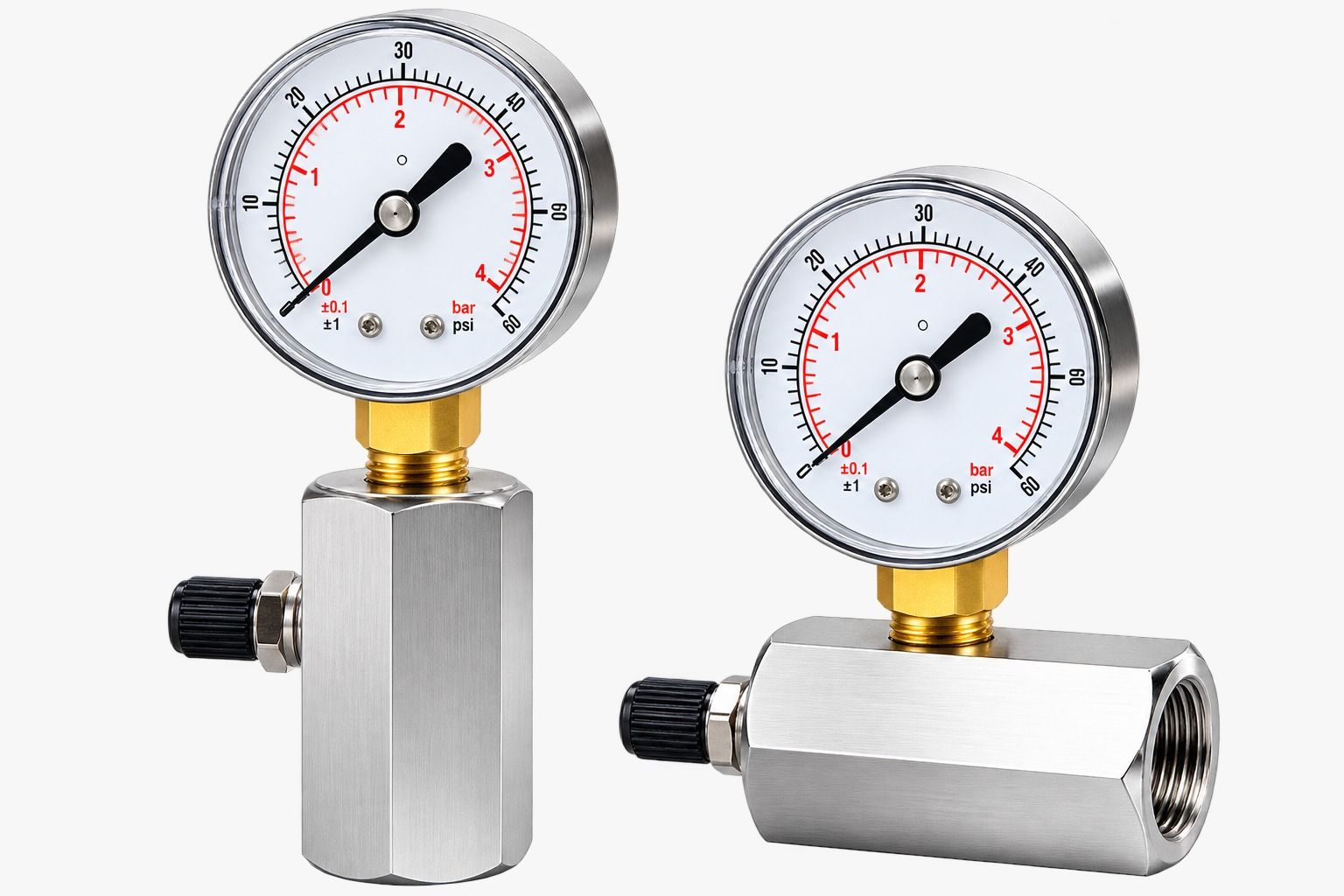

Gas Test Pressure Gauges

Gas Test Pressure Gauges are economical pressure measurement instruments designed for gas testing and pressure monitoring applications. The P-23 model features a black steel case, copper-alloy pressure-sensing components and a chrome-plated steel block valve. Designed in accordance with ASME B40.1 / EN 837-1 standards, these gauges provide dependable pressure indication for gas testing and general industrial applications.

Robust Steel Case: The P-23 Gas Test Pressure Gauge uses a black steel case designed to provide a practical and economical housing for pressure measurement applications. Copper-Alloy Wetted Components: The socket, Bourdon tube and movement are manufactured using copper alloy, providing a suitable construction for the intended gas testing and general pressure measurement applications. Chrome-Plated Block Valve: The gauge incorporates a chrome-plated steel block valve, providing a practical isolation and connection arrangement for gas testing applications. Easy Pressure Reading: The 2-inch aluminum dial and fixed pointer provide clear mechanical pressure indication for routine testing and monitoring. Protective Construction: The gauge features an IP52-rated enclosure with a snap-in plastic lens, providing protection appropriate for its intended operating environment.

The P-23 Gas Test Pressure Gauge is available in pressure ranges from 15 psi to 300 psi, allowing it to be selected according to the pressure requirements of the application. The manufacturer specifies normal operating pressure at up to 75% of the scale value and an over-pressure limit of 125% of the maximum scale value.

The Gas Test Pressure Gauge is designed according to ASME B40.1 / EN 837-1 standards. specifies accuracy according to ASME B40.1, with the 2-inch version identified as Grade B. Better accuracy can be available upon consultation with the manufacturer.

P-23 Gas Test Pressure Gauges provide a practical and economical solution for gas pressure testing and general pressure monitoring. With a robust steel case, copper-alloy pressure components, chrome-plated block valve and multiple pressure ranges, the gauge can be used across a variety of gas and industrial testing applications. For applications requiring dependable mechanical pressure indication without complex electronic instrumentation, the P-23 provides a straightforward and cost-effective pressure measurement solution.
