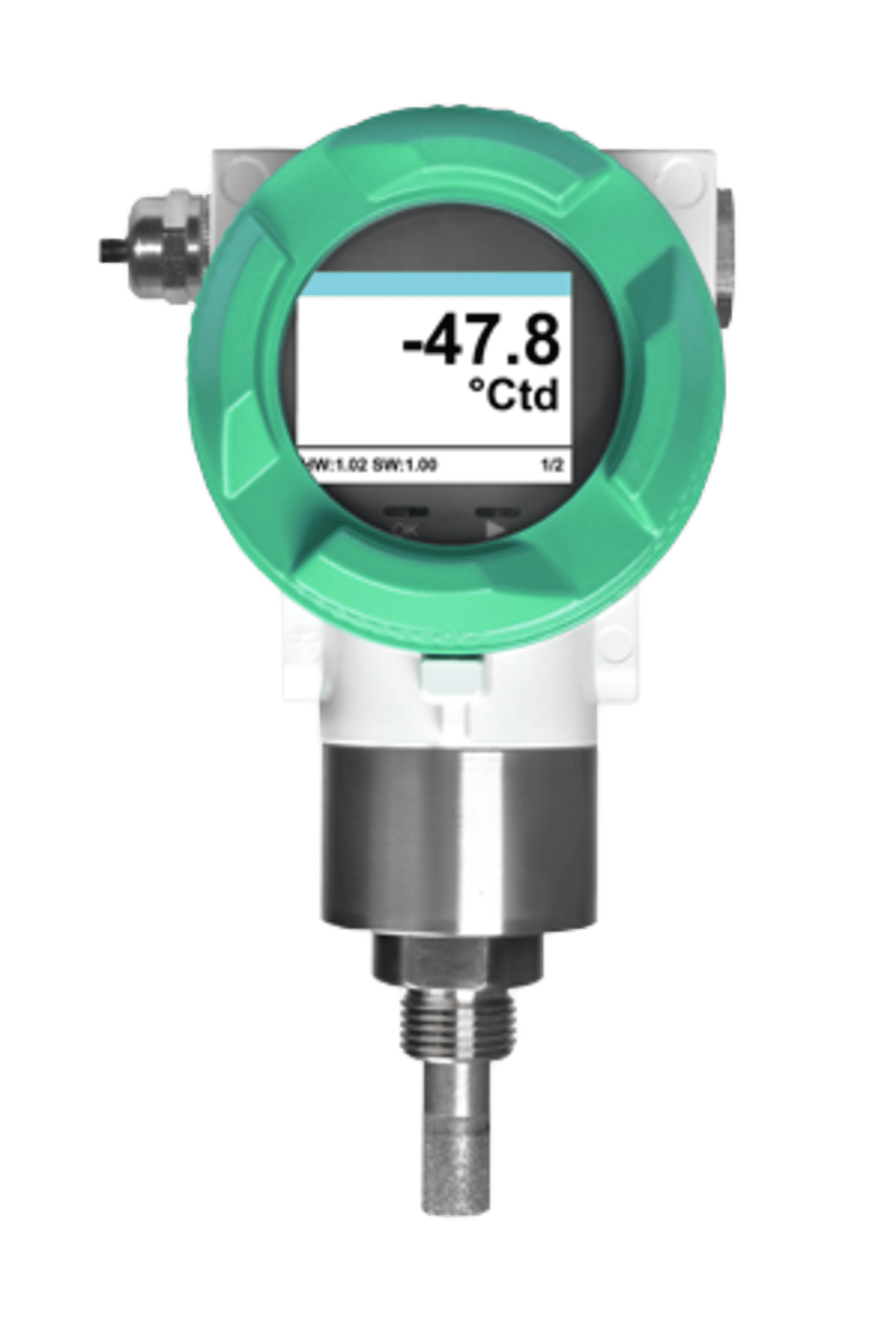

FA 550 - Dew point sensor in robust die-cast aluminum housing
Dew point sensor in a robust, waterproof die-cast aluminum housing for outdoor dew point measurement and operation under harsh industrial conditions.
EquipmentDew Point Sensor
Type / Model / Part No FA 550
Technical specification
| Parameter | Value |
|---|---|
| Housing | Robust, waterproof die-cast aluminum housing |
| Protection Class | IP 67 |
| Analog Output | 4 ... 20 mA |
| Optional Analog Output | 2 pieces 4 ... 20 mA |
| Alarm Relay Rating | Max. 60 VDC, 0.5 A |
| Pressure Resistance | Up to 500 bar (optional) |
| Interface | Modbus RTU |
| Optional Interface | Ethernet |
Applications
- Dew point measurement in compressed air systems after adsorption dryers
- Dew point measurement in compressed air systems after membrane dryers
- Dew point measurement in compressed air systems after refrigeration dryers
- Residual moisture measurement in oxygen
- Residual moisture measurement in nitrogen
- Residual moisture measurement in argon
- Residual moisture measurement in hydrogen
- Residual moisture measurement in natural gas
- Residual moisture measurement in biogas
- Dew point measurement in oxygen
- Dew point measurement in nitrogen
- Dew point measurement in argon
- Dew point measurement in hydrogen
- Dew point measurement in natural gas
- Dew point measurement in biogas
Features
- Alarm relay with adjustable limit value via buttons
- Extremely long-term stable
- Fast adjustment time
- Higher resolution of the sensor signal due to improved evaluation electronics
- Sensor diagnosis on-site with handheld device or CS Service Software
- Readable via Modbus: pressure dew point, temperature, relative humidity, absolute humidity, degree of humidity, moisture content V/V, partial vapor pressure, and atmospheric dew point
Related products
View Details

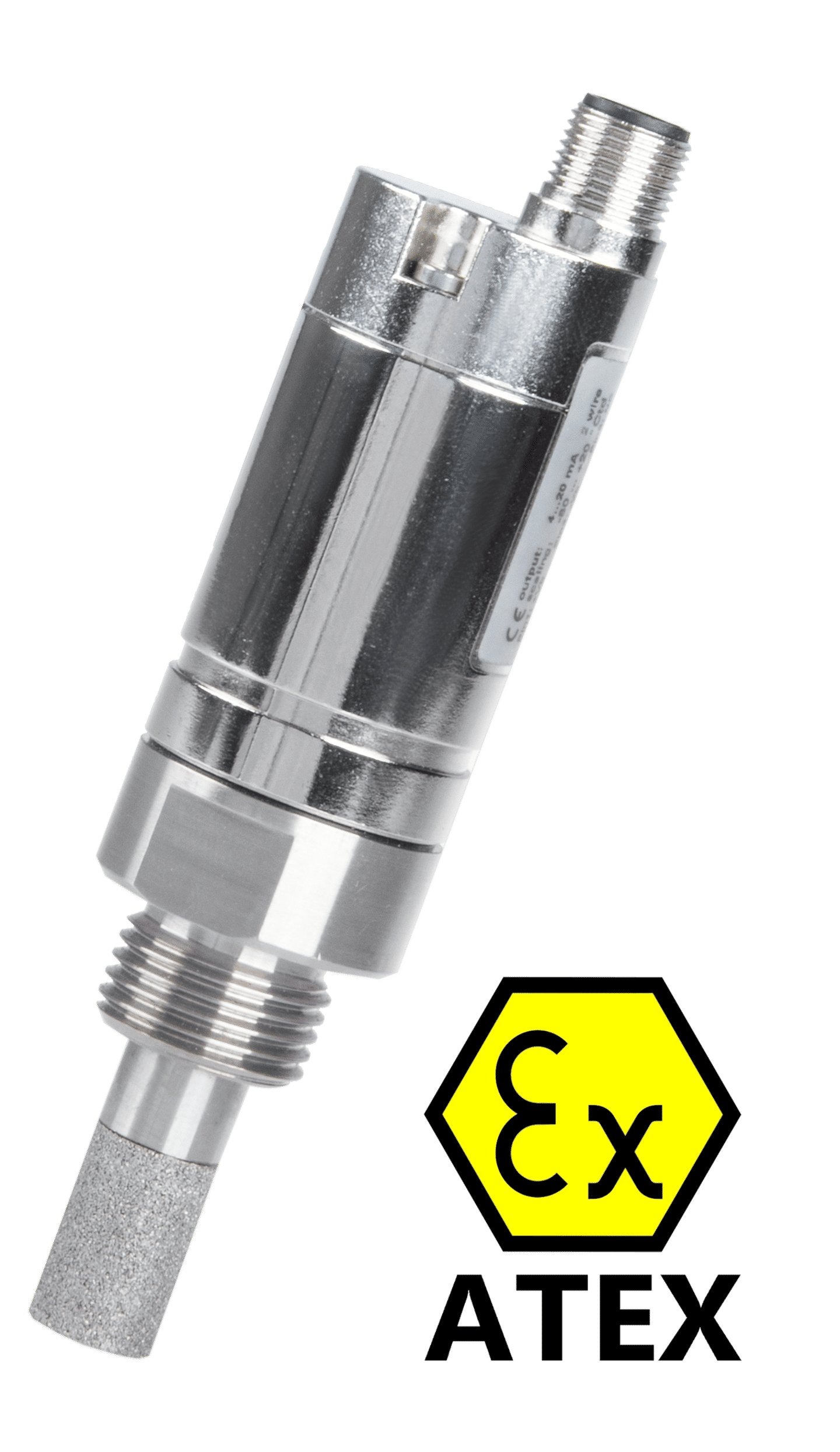

Dew point sensor FA 515 Ex
Al Ghwasa
View Details

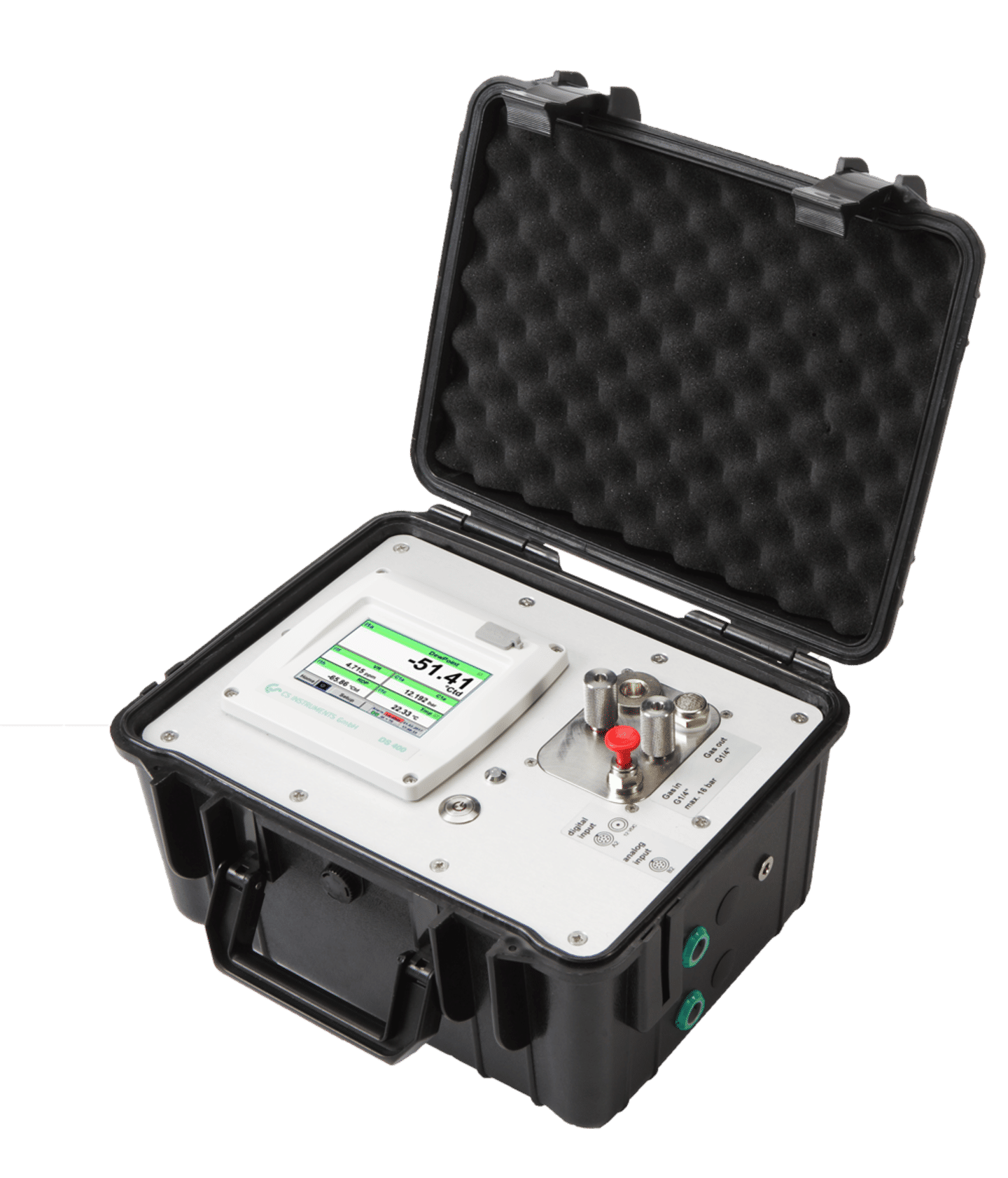

DP 400 mobile - Mobile Dew Point Measurement with Pressure Sensor
Al Ghwasa
View Details

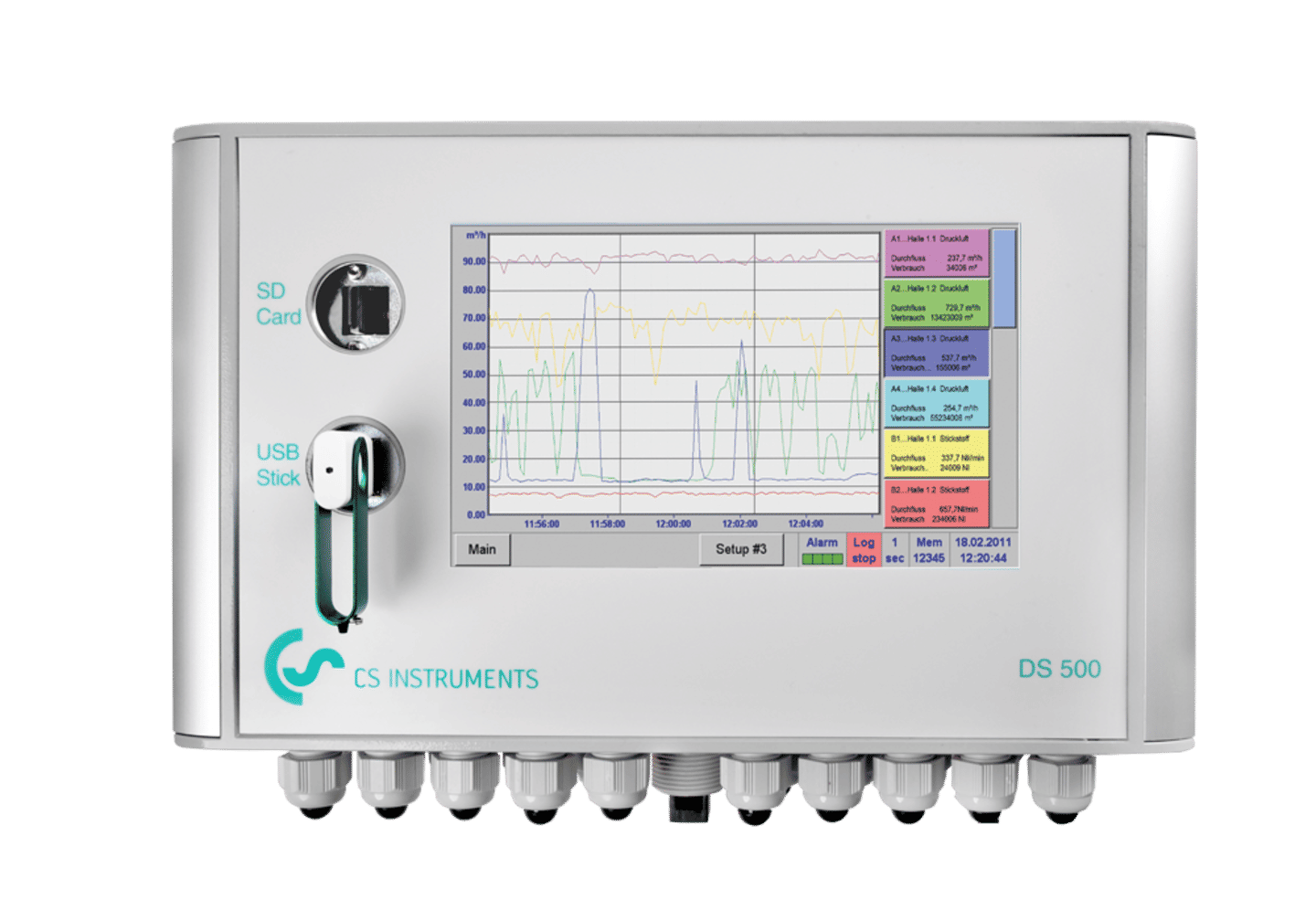

Intelligent chart recorder DS 500 for compressed air and gases
Al Ghwasa
View Details

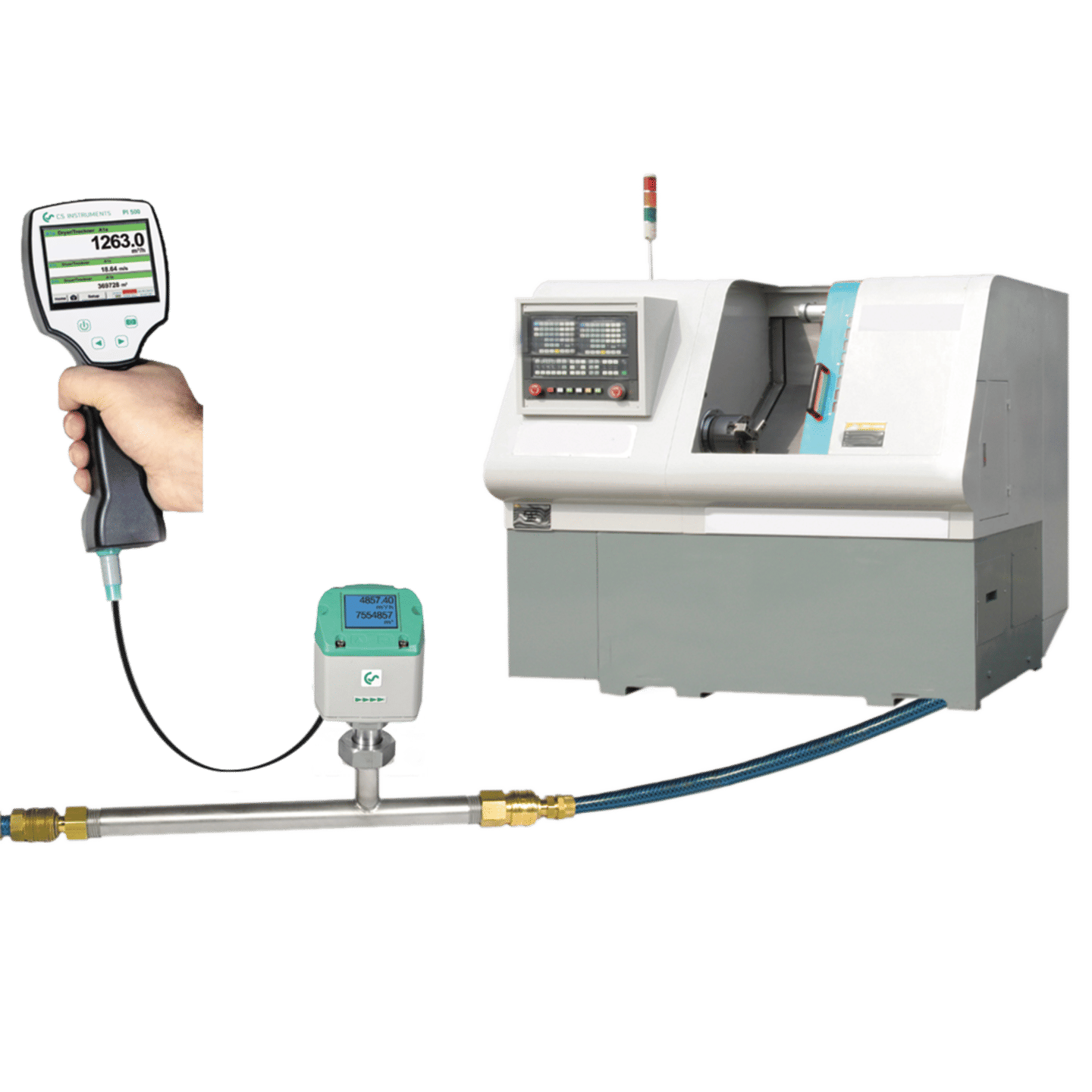

PI 500 - portable flow measurement
