FA 510/515

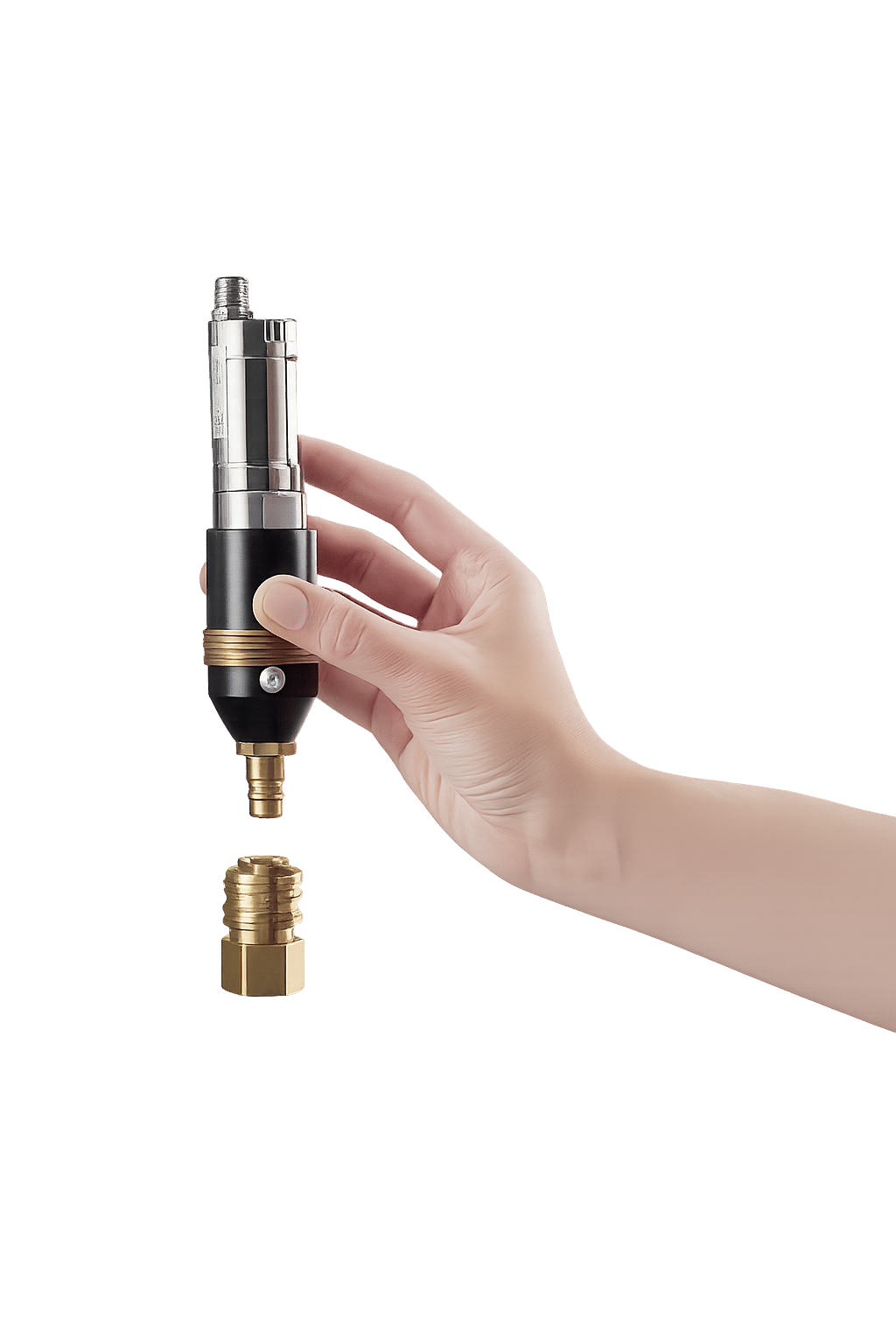

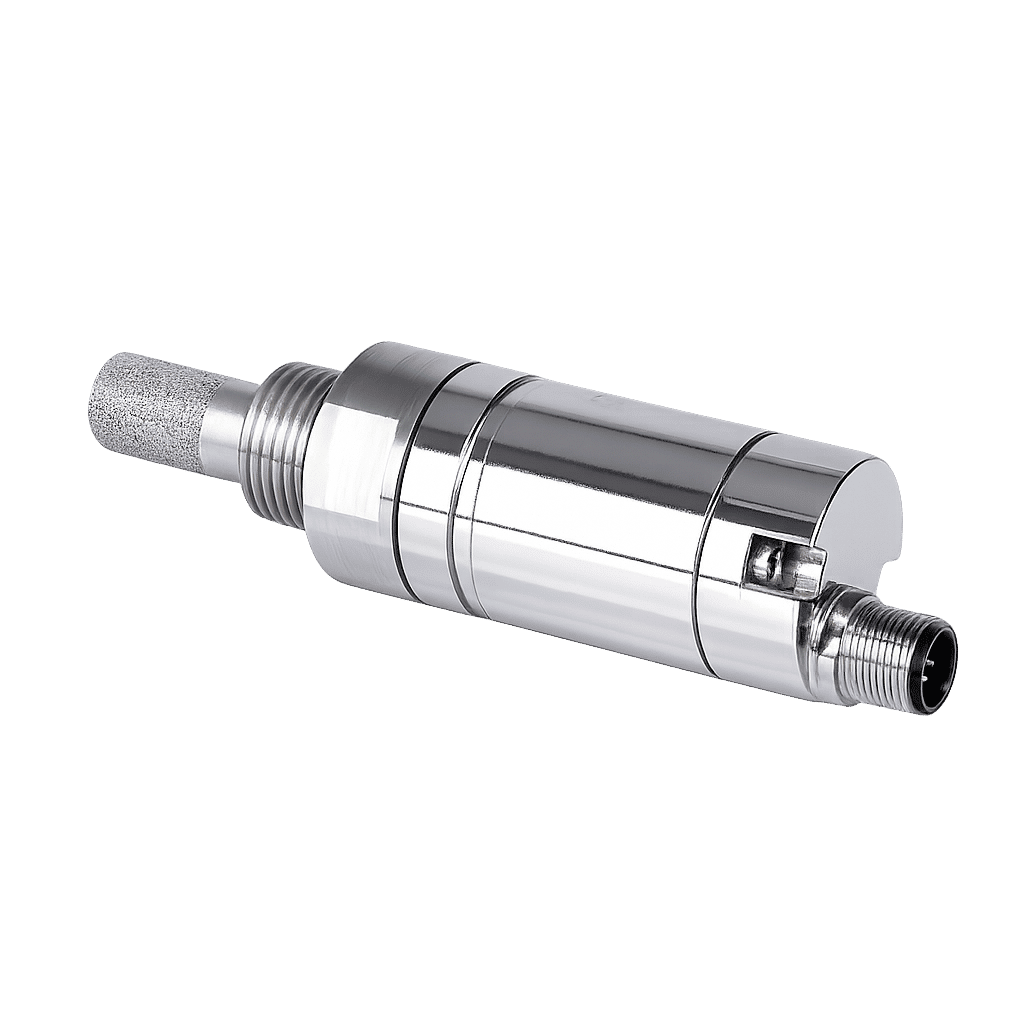

The FA 510/515 Dew Point Sensor is designed for monitoring refrigeration dryers in compressed air systems. It features an IO-Link interface for easy integration into machines and systems and is available with an optional integrated pressure sensor. The sensor provides precise, stable, and reliable dew point measurement, with a condensation-insensitive sensor element protected by a stainless steel sintered cap.
EquipmentDew Point Sensor
ManufacturerCS Instruments
Type / Model / Part No FA 510/515
Technical specification
| Parameter | Value |
|---|---|
| Product Type | Dew point sensor |
| Application | Refrigeration dryer monitoring |
| Accuracy | ±1°Ctd |
| Measuring Range | -20 to +50°Ctd |
| Interface | IO-Link |
| Analog Output | 4...20 mA (two-wire or three-wire) |
| Digital Interface | Modbus RTU (RS 485) |
| Protection Class | IP66 |
| Sensor Element | Condensation insensitive |
| Thread Options | BSP, NPT, UNF |
| Optional Feature | Integrated pressure sensor |
| Gas Compatibility | Gas-independent measurement, suitable for non-corrosive gases |
Typical Applications
- Refrigeration dryers
- Compressed air systems
- Industrial compressed air monitoring
- Machine and system integration
Features
- IO-Link interface for flexible integration
- High measurement accuracy in refrigeration dryer applications
- Compact design for dryer installations
- Robust IP66-rated construction
- Condensation-insensitive sensor element
- Long-term stable and drift-resistant measurement
- Fast adaptation time from dry to wet conditions
- Stainless steel sintered protection cap
- Multiple process outputs via analog and Modbus RTU interfaces
- Supports multiple humidity and dew point measurement units
- On-site sensor diagnostics using handheld device or CS Service Software
