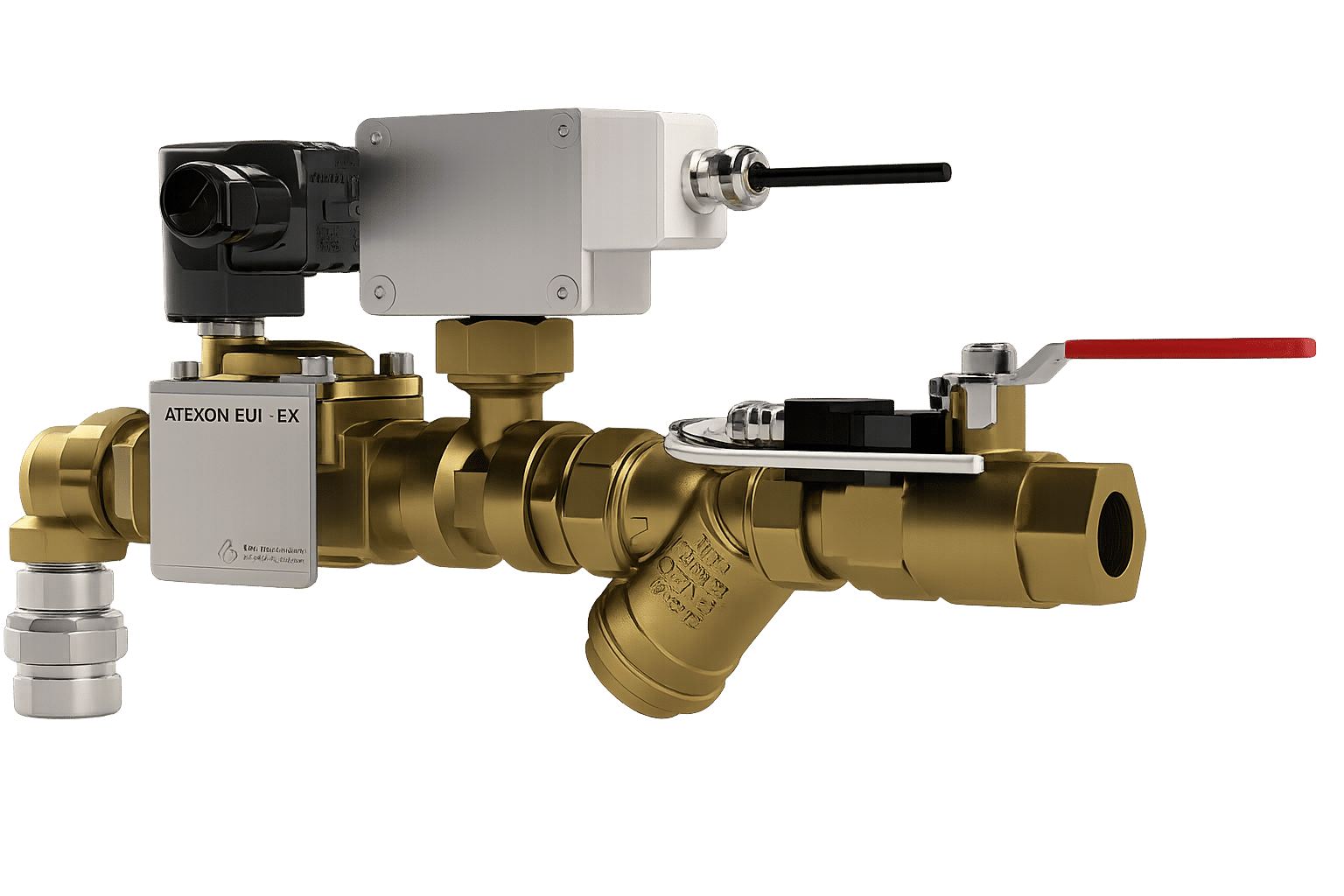

Extinguishing Units- EXT11-EX, EXT12-EX, and EXT22-EX
The Atexon® EXT11-EX, EXT12-EX, and EXT22-EX Extinguishing Units are designed to automatically extinguish sparks and burning particles in pneumatic conveying and industrial process systems. The units activate immediately after spark detection, spraying a controlled amount of water into the process line to suppress ignition sources before they can develop into fires or dust explosions.
Product description
Designed for high-speed material transport systems, the extinguishing units provide continuous operational monitoring when connected to the Atexon® SR3-EX Signal Router. Each unit includes integrated monitoring components such as temperature sensors, flow switches, and position-monitored ball valves to ensure reliable operation in demanding industrial environments.
Technical specification
| Parameter | Value |
|---|---|
| Type | EXT11-EX / EXT12-EX / EXT22-EX |
| Number of Nozzles | 1 / 2 / 2 |
| Extinguishant Medium | Water (pH 6.5 to 9.5) |
| Operating Pressure | 3 to 10 bar (45.5 to 145 psi) |
| Operating Temperature | +5°C to +50°C |
| Minimum Clearance After Strainer | 0.30 mm |
| Inlet Connection | 1” Female BSPP |
| Adapter Option | BSPP to NPT adapters available |
| Ball Valve Position Monitoring | Yes |
| Temperature Monitoring | Yes |
| Flow Monitoring | Yes |
| Integrated Y-Strainer | Yes |
| Enclosure Protection | IP65 |
| Maximum Relative Humidity | 93% |
| Installation Type | Screw-on and weld-on |
| Nozzle Type | Self-cleaning spring-loaded nozzle |
| Optional Nozzle Type | High flow nozzle for chutes |
Hazardous area classification
| Area | Rating |
|---|---|
| Environment | Zone 22 or Non-Hazardous Area |
| Protected Process | Zone 20, 21, 22 or Non-Hazardous Area |
| HazLoc Rating | II 3D Ex tc IIIB T135°C Dc |
Available Options
- Stainless steel nozzles
- Brass nozzles
- Three different K-factor nozzle options
- High flow chute nozzles
- Heat tracing system
- Insulation jacket for outdoor installations
Typical Applications
- Dust collectors
- Cyclones
- Pneumatic conveying systems
- Conveyor systems
- Bucket elevators
- Industrial process lines
Features
- Fast-acting solenoid valve operation
- Automatic extinguishing activation after spark detection
- Integrated strainer for reliable operation
- Position-monitored ball valve
- Continuous flow and temperature monitoring
- Self-cleaning spring-loaded nozzles
- High flow nozzle options for chute protection
- Heat tracing support for cold outdoor environments
- Real-time monitoring of power supply and insulation status
- FM, IECEx, and ATEX approved
