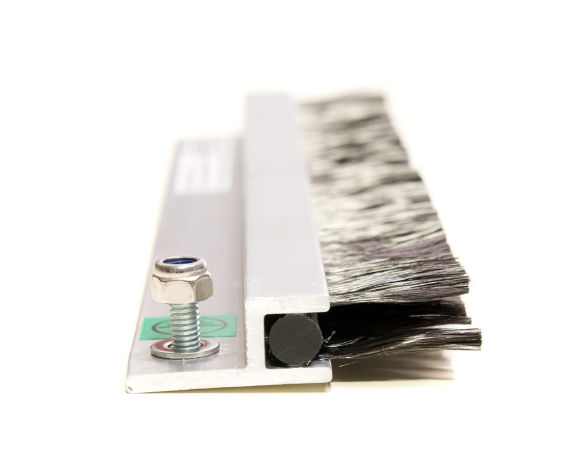

EX-HPSD 101 / 201 EX Static Dischargers
EX-HPSD 101 / 201 Static Dischargers are ATEX-certified passive anti-static devices designed for use in hazardous environments. They neutralise electrostatic charge on moving materials such as films and webs by using conductive fibre elements that safely dissipate charge to earth without requiring an electrical supply.
EquipmentStatic Discharger (ATEX Certified)
ManufacturerFraser Anti-Static Techniques
Type / Model / Part noEX-HPSD 101 / 201
Technical specification
| Parameter | Specification |
|---|---|
| Operating Type | Passive ionisation (no electrical supply required) |
| Certification | ATEX EX certified |
| Application Distance | 2 – 3 mm from material |
| Body Types | 101: aluminium “h” body / 201: aluminium “u” body |
| Body Dimensions | 101: 11 × 25 mm / 201: 9.5 × 9.5 mm |
| Maximum Length | 101: up to 4000 mm / 201: up to 3000 mm |
| Fibre Type | Carbon fibre |
| Fibre Diameter | 6/7 μm |
| Fibre Density | 60,000 filaments/cm |
| Fibre Length Options | 18 mm, 30 mm, 50 mm |
| Construction Materials | Aluminium body with conductive carbon fibres |
| Chemical Resistance | Solvent resistant and washable construction |
| Mounting System | 101: M4x10 earthing stud / 201: M4x10 fixed mounting studs |
| Fixing Position | 201: end and centre mounting (for >1000 mm lengths) |
| Earthing Requirement | Must be connected to earth |
| Maintenance | Low maintenance, washable design |
| Installation Type | Fixed close-proximity mounting |
Features
- ATEX-certified for safe use in hazardous areas
- High-performance passive static neutralisation
- Suitable for high-speed and high-charge applications
- Chemical and solvent resistant construction for harsh environments
- Cost-effective solution for continuous industrial static control
- Custom-length design for integration into production machinery
