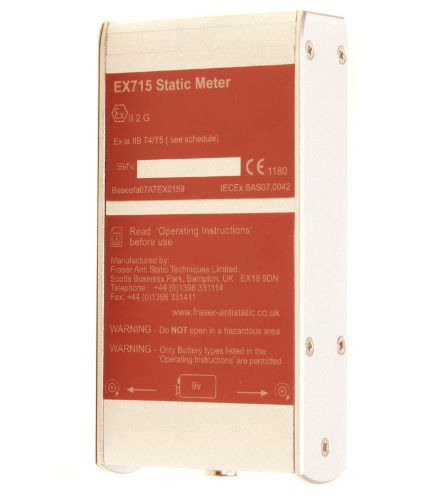

EX-715 Static Meter

Name: EX-715 Static Meter
Brand: Fraser Anti-Static Techniques
Availability: InStock

The EX-715 EX Static Meter is a handheld instrument designed for measuring and monitoring static electricity in hazardous industrial environments. Certified for use in hazardous areas, it enables engineers to identify sources of static generation, evaluate corrective measures, and monitor static levels safely in EX-rated locations. The meter measures static voltages up to 200 kV at a distance of 100 mm with automatic range selection and polarity indication.

Static Neutralization and Generations

Static Mesurement

EquipmentEX Static Meter

ManufacturerFraser Anti-Static Techniques

Type / Model / Part noEX-715 EX Static Meter

Download PDF

Technical specification

Specification item	Details
Equipment type	Hazardous area static meter
Application	Static measurement in EX / hazardous industrial environments
Measurement distance	100 mm
Measurement range	0–20 kV and 20–200 kV
Resolution	10 V (0–20 kV), 100 V (20–200 kV)
Range selection	Automatic
Drift	<0.1% in 10 seconds
Construction	Anodised aluminium case with recessed stainless steel sensing plate
Dimensions	124 × 64 × 24 mm
Weight	180 g
Calibration	150 mm × 150 mm charge plate standard
Operation	Zero, hold, and resume functions with automatic shut-off
Power supply	Battery operated
Included accessories	Carrying case, battery, earth lead, calibration certificate
Environmental limits	70% RH non-condensing max
Certification	ATEX, IECEx, EN-500081-1 (EMC), BS7506-2
