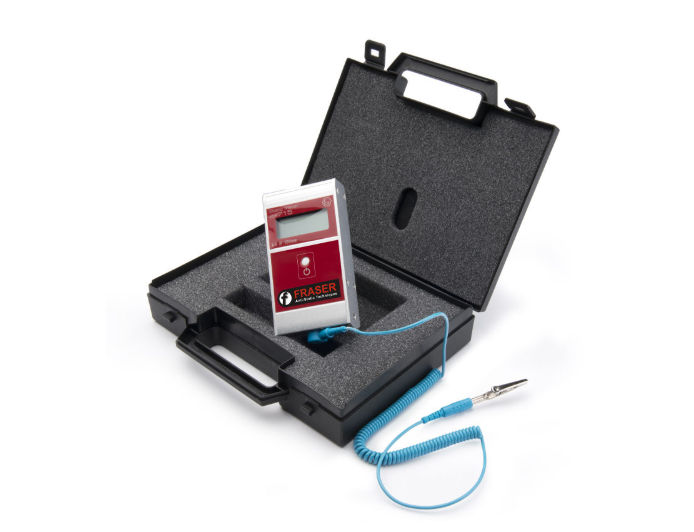

EX-715 EX Static Meter
The EX-715 EX Static Meter is a hazardous-area certified instrument designed for measuring and analyzing static electricity levels in industrial environments. It enables engineers to accurately identify static charge generation, magnitude, and polarity on materials or surfaces from a safe distance. The device supports troubleshooting of static-related issues, verification of control measures, and monitoring of process safety in EX/ATEX zones.
Specifications
| Parameter | Details |
|---|---|
| Construction | Anodised aluminium case with recessed stainless steel sensing plate |
| Dimensions | 124 × 64 × 24 mm (H × W × D) |
| Weight | 180 g |
| Measurement Range | 0 – 20 kV (10 V increments), 20 – 200 kV (100 V increments) |
| Measurement Distance | 100 mm |
| Drift | <0.1% in 10 seconds |
| Calibration | Charge plate calibration (150 × 150 mm standard; alternative sizes available) |
| Operation | Zero and hold function with automatic switch-off after 60 seconds |
| Power Indicator | Low battery indication on display |
| Environmental Limits | Max 70% RH (non-condensing) |
| Certification | ATEX, IECEx, EN 50081-1 (EMC), BS7506-2 |
Features
- Measures static voltage from 10 V up to 200,000 V
- Dual automatic range selection for accurate readings
- Identifies charge magnitude and polarity for diagnostics
- Hold function to freeze readings for analysis
- Designed for hazardous area use (ATEX/IECEx certified)
- Compact and lightweight handheld design
- Suitable for troubleshooting and validation of static control systems
