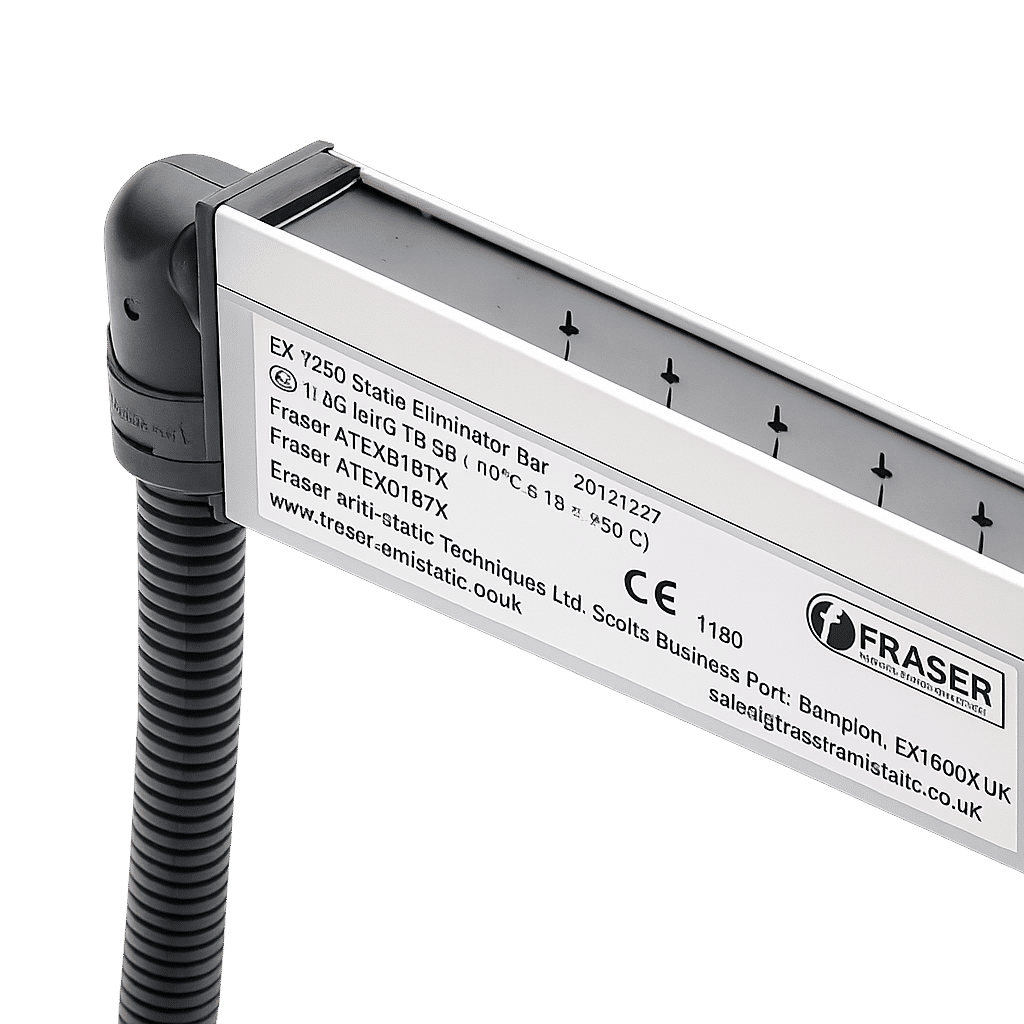

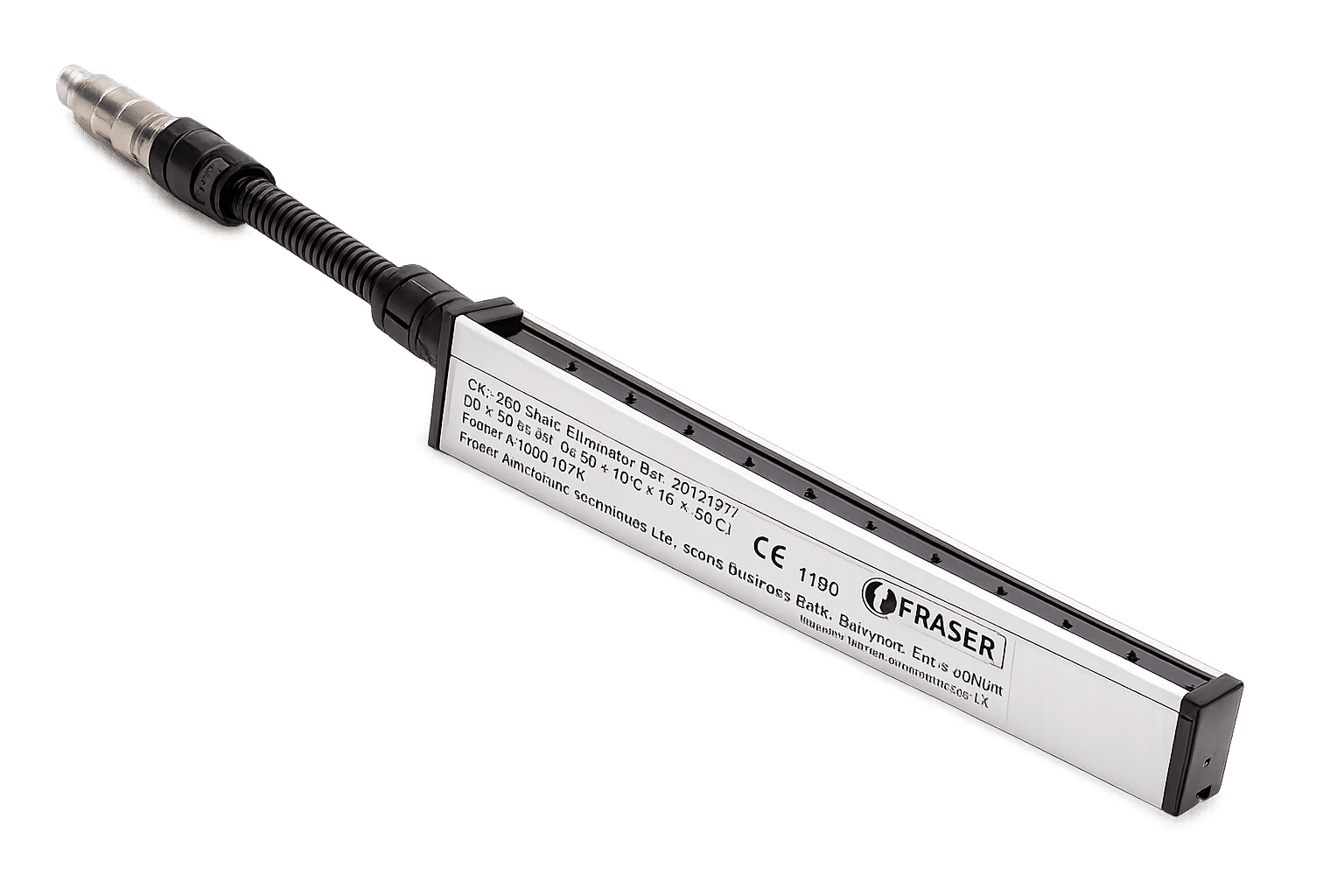

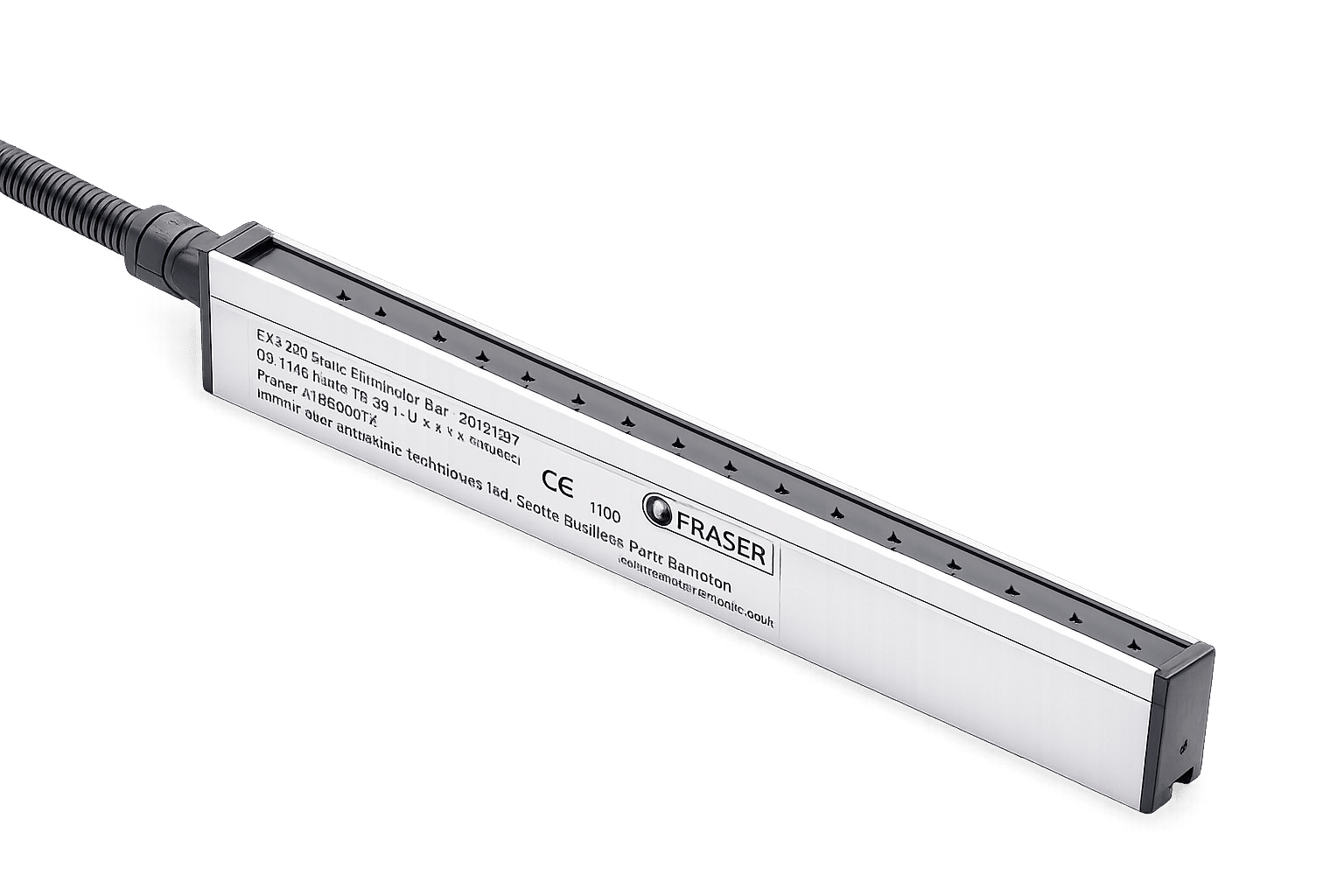

EX-1250 EX Static Eliminator
The EX-1250 EX Static Eliminator is a high-performance ionising bar designed for static charge neutralisation in hazardous environments. It is ATEX certified for use in Zones 1, 2, 21, and 22 and is engineered to deliver reliable, long-life operation in industrial applications. The system uses resistively coupled emitters for controlled ionisation efficiency and safety, with fully encapsulated electrical components to ensure durability and shockless operation. It is designed for installation with external power units located outside the hazardous area.
EquipmentEX-1250 EX Static Eliminator
ManufacturerFraser Anti-Static Techniques
Type / Model / Part no EX-1250
Technical specification
| Parameter | Specification |
|---|---|
| Ionising Voltage | 6 kV |
| Operating Distance | 20 – 150 mm (optimal ≤ 50 mm) |
| Maximum Load | 30 m combined bar and cable |
| Construction Materials | Anodized aluminum, epoxy resin, ABS, hardened emitters |
| Bar Dimensions | 20 × 32 mm (W × H) |
| Available Lengths | 120 mm to 6000 mm |
| Active Length | Overall length minus 70 mm |
| Cable Length | Standard 3 m in protective nylon conduit (longer available) |
| Environmental Limits | Max 40°C, max 70% RH non-condensing |
| Safety Design | High-resistance emitters for shockless operation |
| Certification | CE, ATEX (Zones 1, 2, 21, 22) |
| Power Unit Compatibility | EXHP or HP-ION (Model 3111), external installation required |
Features
- ATEX certified static elimination for hazardous area use
- Resistively coupled emitter design for controlled ionisation efficiency
- Fully encapsulated electrical components for reliability and long service life
- Robust mechanical construction for industrial environments
- Compatible with monitoring and feedback power units (EXHP / HP-ION)
- Optional LED indication for high-voltage status monitoring
- Flexible installation lengths up to 6 meters
Options
- 90° cable exit configuration
- Metallic protective cable conduit
- Air knife mounting configuration (see 5000/5100 and 5500 systems)
- EXHP power unit with operational monitoring and alarm output
- HP-ION (Model 3111) power unit with status feedback and maintenance indication
