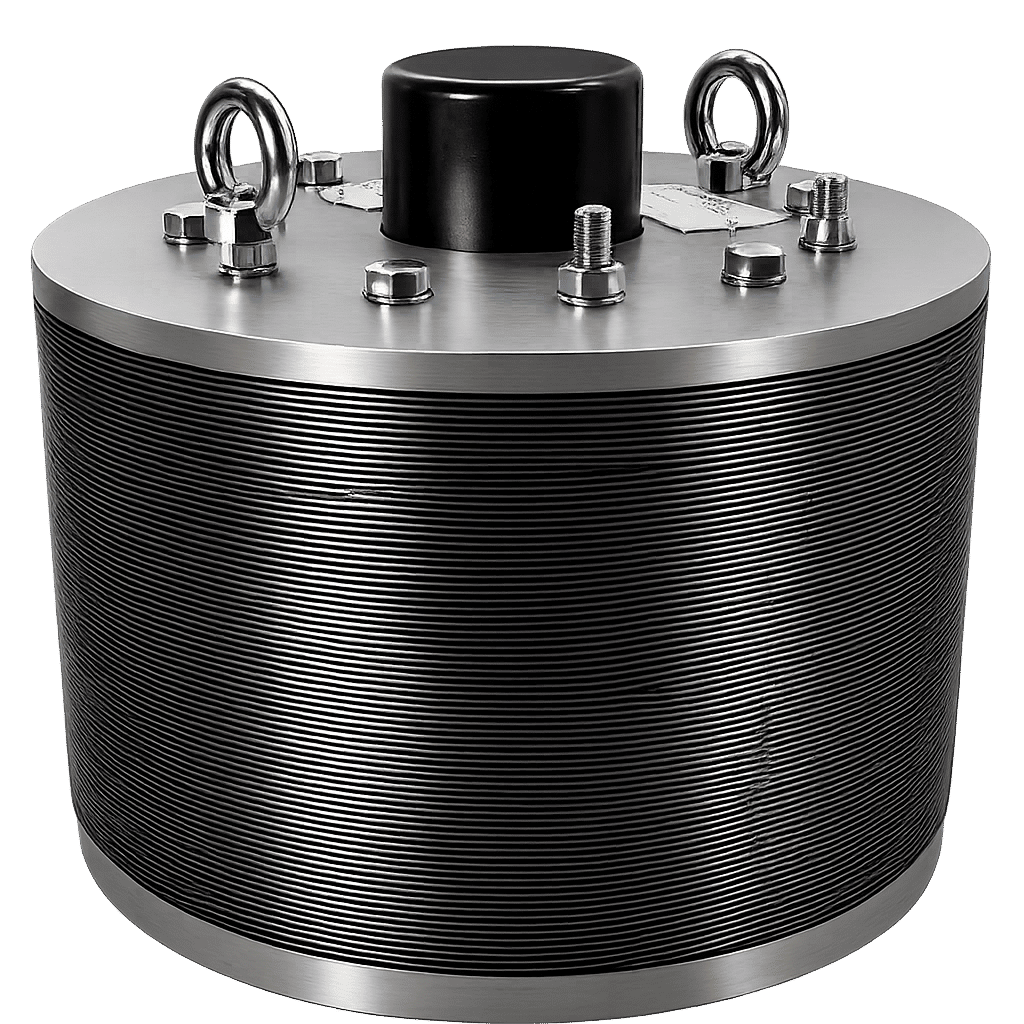

Engine Explosion Protection

Name: Engine Explosion Protection
Brand: IEP Technologies
Availability: InStock

The Engine Explosion Protection Relief Valve system is designed to protect engines, piping systems, and personnel from damage caused by gas or oil-mist explosions. Manufactured by Hydrorex, the system uses reusable, flameless explosion venting technology to safely relieve overpressure while preventing flame transmission.

Explosion Protection

Protect engines

Piping systems

Gas or oil-mist explosions

System TypeFlameless Explosion Relief Valve

Function Overpressure Relief with Flame Arresting

Certification ATEX / IACS Approved

Operation Automatic Pressure-Activated Valve Plate

Download PDF

Technical specification

System Type	Flameless Explosion Relief Valve
Function	Overpressure Relief with Flame Arresting
Certification	ATEX / IACS Approved
Operation	Automatic Pressure-Activated Valve Plate
Reset Type	Self Re-closing (Reusable)
Maintenance	Virtually Maintenance-Free
Installation	Flexible Orientation (Any Position)
Testing	100% Function & Opening Pressure Tested
Temperature Range	Suitable for Wide Temperature Variations
Protection Scope	Engines, Piping Systems, Crankcase Protection

Features

Flameless explosion relief technology
Protects engines, piping, and personnel from explosion hazards
ATEX and IACS certified safety design
Automatic re-closing after pressure release (no shutdown required)
Virtually maintenance-free operation
Flexible installation in any orientation
Each unit tested for function and opening pressure
Reliable performance across wide temperature ranges
Designed for continuous industrial and marine operation

Valve Types

Model	Application Area	Opening Pressure
EVT Series	High-pressure intake & exhaust manifolds	Above 2.0 bar
EVM Series	Low-pressure exhaust & downstream piping	From 0.2 bar
EVO Series	Crankcase oil-mist protection (ambient/low pressure)	From 0.05 bar
